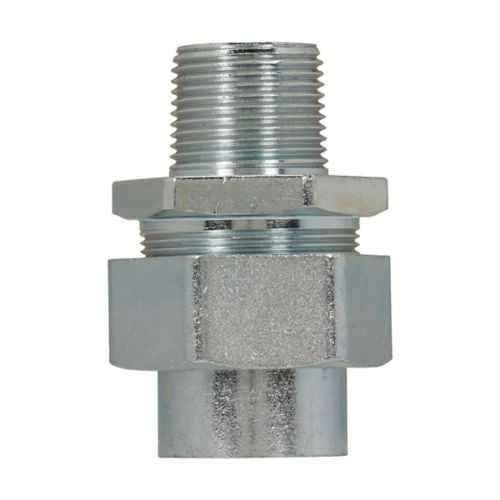

Eaton Crouse-Hinds UNY805 Union - Rigid/IMC, NEC/CEC
Part Number: UNY805
Quick Summary
Eaton Crouse-Hinds UNY805 Union is a rugged rigid conduit union designed for reliable connections in hazardous locations. For engineers and procurement teams, the challenge is sourcing fittings that are both field-ready and fully certified, avoiding delays. This UNY805 delivers NEC/CEC compliance and hazardous-location ratings including Class I Division 1 and 2, Class II Division 1 and 2, with UL and CSA certifications backing performance. With robust construction and clear conformance, it supports faster installations, reduced maintenance, and predictable lifecycle costs for explosion-proof conduit systems. Designed for explosion-proof conduit unions and other conduit fittings used in oil & gas, chemical, and mining facilities.
Product Information
Extended Description
UNY805 Eaton Crouse-Hinds: Eaton Crouse-Hinds series UNY union, Rigid/IMC, Male, Feraloy iron alloy, 3"
Product Name
Eaton Crouse-Hinds series UNY union
Catalog Number
UNY805
UPC
782274648606
Product Length/Depth
5.81 in
Product Height
5.06 in
Product Width
5.06 in
Product Weight
7.45 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
Conduit type
Rigid/IMC
Gender
Male
Material
Feraloy iron alloy
Trade size
3"
Crouse-Hinds series Explosionproof Conduit Unions, Elbows and Tees catalog page
Explosionproof Conduit Unions, Elbows and Tees UL certification
Explosionproof Conduit Unions, Elbows and Tees UL certification
Eaton Specification Sheet - UNY805
Feature: Feraloy iron alloy housing provides rugged durability in harsh industrial environments. Business Impact: Resists impact, heat, and corrosion, reducing replacement cycles and maintenance downtime. Application: Ideal for chemical processing plants, refineries, and mining installations where safety-critical fittings must endure constant service. Feature: Rigid/IMC compatibility with a 3" trade size streamlines field routing and reduces stocking of multiple parts. Business Impact: Shortens installation times and lowers inventory costs while maintaining a secure seal. Application: High-capacity junctions in hazLoc installations with tight space constraints. Feature: Male threaded union design enables precise mating and sealed connections. Business Impact: Improves seal integrity under vibration and minimizes loosening risk. Application: Explosion-proof conduit networks in harsh environments. Feature: Comprehensive certifications and ratings reduce regulatory complexity. Business Impact: Simplifies approvals, speeds inspections, and lowers risk of non-compliance. Application: Industrial facilities requiring NEC/CEC, UL and CSA certifications in hazardous locations. Feature: Defined dimensions and weight support predictable installation planning. Business Impact: Enables accurate mounting, panel design, and space management. Application: Control panels, junction boxes, and equipment racks in HazLoc settings.
Get a Quick Quote for a Eaton Crouse-Hinds UNY805
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds UNY805?
Enquire Now
FAQs
UNY805 is designed for use with rigid or IMC conduit in Hazardous/Classified Locations. When installing, verify correct alignment, ensure enclosure cleanliness, and follow NEC/CEC requirements for Class I Division 1 & 2, Class II Division 1 & 2 ratings. Use proper gaskets and torque values specified by Eaton's documentation to maintain explosion-proof integrity and prevent ignition of hazardous atmospheres.
Yes, UNY805 is designed for Rigid/IMC conduit with a 3" trade size. It carries NEC/CEC compliance and hazardous-location ratings (Class I Division 1 & 2; Class II Division 1 & 2; Class III), supported by UL and CSA certifications. The male union design facilitates secure mating and helps ensure maintainable seals in harsh environments.
UNY805 aligns with NEC/CEC standards for hazardous locations and carries recognized UL and CSA certifications, including Class I, Division 1 & 2 and related classifications. This certification portfolio supports regulatory approvals, reduces inspection time, and provides assurance that the fitting is suitable for explosion-tested conduit systems in HazLoc facilities.
Industries such as oil & gas, chemical processing, mining, and power generation benefit most. The union’s rigid/IMC compatibility, 3" trade size, and HazLoc approvals address the need for durable, compliant conduit connections in harsh environments where uptime and safety drive project success.
UNY805 reduces maintenance downtime by offering a durable Feraloy iron alloy body, certified explosion-proof ratings, and straightforward installation. Fewer components, reliable seals, and compliance with NEC/CEC and UL/CSA standards shorten commissioning time and minimize rework, delivering lower lifecycle costs for HazLoc conduit systems.
