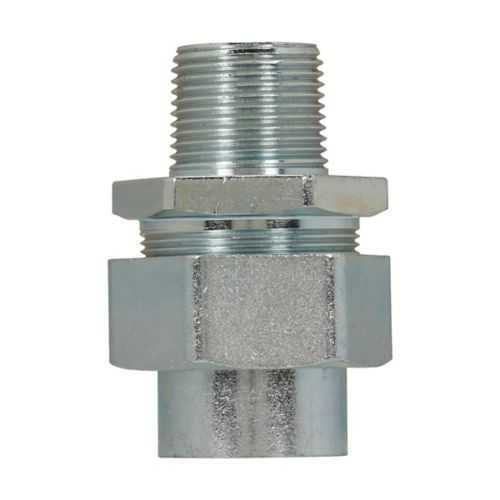

Eaton Crouse-Hinds UNY806 Union - Group B rated
Part Number: UNY806
Quick Summary
Eaton Crouse-Hinds UNY806 union provides rugged conduit connections for hazardous-location electrical systems. When space is tight and reliability matters, installers need fittings that are quick to assemble, corrosion resistant, and code-compliant. This product carries NEC/CEC compliance and hazardous-location ratings including Class I, Division 1 and 2, Class II, Division 1 and 2, plus a Group B material. By combining strict standards with a 3-inch trade size and rigid/IMC compatibility, it delivers measurable value in uptime and project cost.
Product Information
Extended Description
UNY806 Eaton Crouse-Hinds: Eaton Crouse-Hinds series UNY union, Rigid/IMC, Male, Feraloy iron alloy, Group B rated, 3"
Product Name
Eaton Crouse-Hinds series UNY union
Catalog Number
UNY806
UPC
782274365312
Product Length/Depth
5.81 in
Product Height
5.06 in
Product Width
5.06 in
Product Weight
8.36 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
Conduit type
Rigid/IMC
Gender
Male
Material
Feraloy iron alloy
Trade size
3"
Special features
Group B rated
Crouse-Hinds series Explosionproof Conduit Unions, Elbows and Tees catalog page
Explosionproof Conduit Unions, Elbows and Tees UL certification
Explosionproof Conduit Unions, Elbows and Tees UL certification
Eaton Specification Sheet - UNY806
Feature: Feraloy iron alloy body provides high-strength, corrosion resistance. Impact: Extends service life, reducing maintenance costs and downtime. Application: Ideal for oil, gas, and chemical processing facilities where ruggedness is essential. Feature: Group B rated for hazardous locations. Impact: Enables safe use in demanding Class I and II environments. Application: Suitable for hazardous-area installations across mining, petrochemical, and heavy manufacturing facilities. Feature: 3" trade size matching standard conduits. Impact: Minimizes field adaptations and inventory needs, shortening install time. Application: Large equipment terminations and industrial automation panels benefit from quick, reliable connections. Feature: Rigid/IMC conduit compatibility. Impact: Simplifies system integration and reduces mismatch-related rework. Application: Factory floors and process plants with mixed conduit ecosystems. Feature: NEC/CEC compliance with associated certifications. Impact: Ensures regulatory alignment and faster project approvals. Application: Compliance-driven projects in North America and international equivalents.
Get a Quick Quote for a Eaton Crouse-Hinds UNY806
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds UNY806?
Enquire Now
FAQs
Install the UNY806 by aligning the male connection with the mating conduit, then torque to the manufacturer’s specification using standard conduit wrenches. Ensure the installation is within a Class I/II/III hazardous-location environment per NEC/CEC guidelines. Use appropriate tightening to maintain a gas- and dust-tight seal while preserving the union’s explosion-proof rating.
Yes. UNY806 is designed for rigid and IMC conduit systems, with a 3" trade size and a male configuration. This compatibility supports seamless integration into existing installations without adapters, reducing inventory variety and potential leakage points in hazardous-location applications.
UNY806 carries NEC/CEC compliance for hazardous locations and a Group B rated construction. It supports Class I Division 1 and 2, Class II Division 1 and 2, and Class III environments, aligning with industry-standard explosion-proof requirements and enabling safe operation in oil, gas, mining, and chemical facilities.
UNY806 provides a 5.81 in length, with 5.06 in width and height, and weighs approximately 8.36 lb. The 3" trade size and compact footprint facilitate installation in restricted spaces while delivering robust, field-ready performance for hazardous-location conduit connections.
The Feraloy iron alloy body delivers durable corrosion resistance and high strength, reducing replacement frequency and maintenance costs. Its Group B rating and NEC/CEC compliance minimize compliance risk and rework, shortening project timelines and improving uptime in demanding facilities like refineries, chemical plants, and mining sites.
