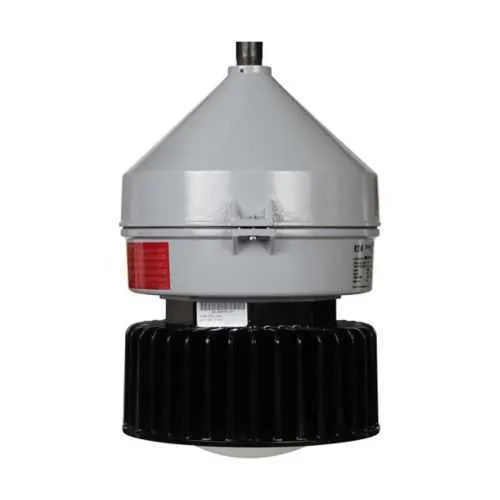

Eaton VMVL-11-2B-R3-G-UNV1-S891 LED Luminaire - IP66

VMVL-11-2B-R3-G-UNV1-S891
Manufacturer
Eaton Crouse-Hinds
Part number
VMVL-11-2B-R3-G-UNV1-S891
Category

Quick Summary

VMVL-11-2B-R3-G-UNV1-S891 LED luminaire delivers high-output area lighting for hazardous locations. Facilities contend with unreliable lighting in classified zones, increasing risk and maintenance downtime. This fixture is certified for Hazardous/Classified Locations, with NEC/CEC IECEx/ATEX approvals and IP66/NEMA 4X protection to withstand washdowns and harsh environments. Designed for cone pendant mounting and a wide voltage range, it supports energy-efficiency programs, simplifies compliance, and reduces total cost of ownership for industrial operations.

Product Information

Extended Description

VMVL-11-2B-R3-G-UNV1-S891 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Champ VMVL LED fixture, Cool white, 320W HID equivalent, Wire guard, Diffused glass lens, 11000 lumens, 122 lm/W, Die cast aluminum, Cone pendant mount, Type III, 3/4" trade size, 100-277 Vac, 127-250 Vdc, 92W
Product Name
Eaton Crouse-Hinds series Champ VMVL LED light fixture
Catalog Number
VMVL-11-2B-R3-G-UNV1-S891
UPC
662276894938
Product Length/Depth
11.62 in
Product Height
15.22 in
Product Width
11.62 in
Product Weight
23.2 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC IEC IECEx/ATEX
NEC hazardous rating
Class I, Division 2 Class I, Zone 2 Class II, Division 1 Class III
IECEx/ATEX hazardous rating
Zone 21
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lumens
11000
Lumens per watt
75
Color temperature
Cool white
Mounting Method
Cone pendant
Trade size
100-240 Vac, 127-250 Vdc
Optical distribution
Type III
Guard type
Wire
Voltage rating
100-277 Vac, 127-250 Vdc
Frequency rating
50/60 Hz
Wattage
92W
Dimming
Dimmable driver
Power factor
> 0.90
Equivalent luminaire
320W HID
Material
Die cast aluminum
Lens material
Diffused Glass
SP3D Design Package - Champ VMVL LED Hazardous Area Light Fixtures Crouse-Hinds series Champ VMVL LED Luminaires - 3,000 to 13,000 lumens brochure Crouse-Hinds series Champ VMVL LED Luminaires - 3,000 to 13,000 lumens brochure Crouse-Hinds series Champ VMVL LED Luminaires - 3,000 to 13,000 lumens brochure Crouse-Hinds series Champ VMVL LED luminaires - 3,000 to 13,000 lumens catalog page IF 1888 - Champ VMVL and PVML Driver Replacement IF 1888 - Champ VMVL and PVML Driver Replacement Eaton Specification Sheet - VMVL-11-2B-R3-G-UNV1-S891 Eaton Specification Sheet - VMVL-11-2B-R3-G-UNV1-S891
Feature: High luminous output and efficiency. Business Impact: Delivers 11000 lumens at 92 W, achieving 122 lm/W, which lowers energy use while maintaining bright, uniform coverage in large hazardous zones. Application: Ideal for open areas, warehouses, and process spaces that require Type III distribution. Feature: Rugged construction and ingress protection. Business Impact: Die-cast aluminum housing with IP66 and NEMA 4X protection resists corrosion and washdowns, reducing maintenance cycles. Application: Offshore platforms, chemical plants, and mining environments benefit from extended service life. Feature: Wide voltage range and dimmable driver. Business Impact: Supports 100-277 Vac and 127-250 Vdc with a dimmable driver to optimize energy use and reduce installed costs. Application: Flexible retrofits and new installations across regional facilities. Feature: Hazardous-location certifications. Business Impact: NEC/CEC IECEx/ATEX compliance, Zone 21, Class I Division 2, and Zone 2 ratings enable safe operation in classified areas. Application: Meets stringent regulatory requirements for industrial plants and refineries. Feature: Optical and mounting design. Business Impact: Type III optical distribution, diffused glass lens, guard, cone pendant mounting, and 3/4" trade size simplify installation and ensure consistent coverage. Application: Enabling uniform illumination in complex ceilings and rugged environments. Feature: Documentation and support. Business Impact: Access to SP3D design packages and official installation/datasheet resources reduces project risk and speeds commissioning. Application: Helpful for engineers planning large-scale rollouts and maintenance planning.

Get a Quick Quote for a Eaton Crouse-Hinds VMVL-11-2B-R3-G-UNV1-S891

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton Crouse-Hinds VMVL-11-2B-R3-G-UNV1-S891? Enquire Now

FAQs

The VMVL fixture uses cone pendant mounting and supports a wide voltage range of 100-277 VAC or 127-250 VDC with a 50/60 Hz frequency rating. It includes a dimmable driver and a 3/4" trade size, making it flexible for retrofits or new installations in hazardous areas.
The luminaire carries NEC/CEC IECEx/ATEX approvals, Zone 21 capability, NEC Class I Division 2, Class II Division 1, and Class III ratings, along with IP66 ingress protection and NEMA 4X enclosure. These certifications verify safe operation in hazardous locations and washdown conditions.
It delivers 11,000 lumens with an efficiency of 122 lm/W, equating to a 92 W power consumption. The color temperature is Cool White, with Type III optical distribution and a diffused glass lens, providing broad, uniform coverage for large areas in hazardous zones.
A rugged die-cast aluminum body, IP66/NEMA 4X protection, and a long LED life reduce maintenance cycles. The option for a dimmable driver and a driver replacement pathway (IF 1888) supports easier maintenance planning and steadier operation in challenging environments.
Access Eaton resources such as the Specification Sheet at https://www.eaton.com/us/en-us/skuPage.VMVL-11-2B-R3-G-UNV1-S891.pdf and the installation documentation at https://www.eaton.com/content/dam/eaton/products/lighting-and-controls/crouse-hinds/instruction-sheets/crouse-hinds-if1888-instruction-sheet.pdf to ensure proper sizing, mounting, and safety compliance.
