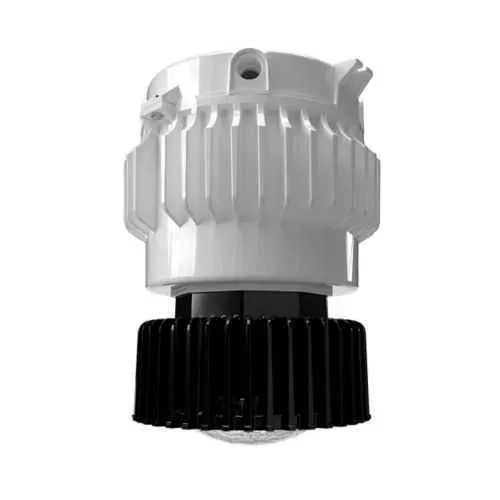

Eaton Crouse-Hinds VMVL-11-UNV1-EM1 LED Light Fixture - Emergency Back-Up
Part Number: VMVL-11-UNV1-EM1
Quick Summary
The VMVL-11-UNV1-EM1 is a high-efficiency LED light fixture designed for hazardous and classified industrial spaces. Engineers struggle with outages, corrosion, and stringent safety codes that increase downtime and maintenance costs in harsh settings. Certified for NEC/CEC compliance with hazardous location ratings—Class I, Division 2; Zone 2; and NEMA 4X/IP66 protection—this luminaire delivers reliable performance in demanding environments. With 100–277 VAC operation, 11,000 lumens, and 0–10 V dimming, it supports energy efficiency, easy integration into existing control schemes, and safer, longer-lasting illumination for critical processes. This makes it a practical retrofit for plant floors, switchgear rooms, and outdoor installations where reliability matters.
Product Information
Extended Description
VMVL-11-UNV1-EM1 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Champ VMVL LED light fixture with emergency back-up, Cool white, 0-10V dimming, No guard, Tempered glass lens, 11000 lumens, 122 lm/W, Copper-free aluminum, No mounting module, Type V, 100-277 Vac, 102W
Product Name
Eaton Crouse-Hinds series Champ VMVL LED light fixture with emergency back-up
Catalog Number
VMVL-11-UNV1-EM1
UPC
662276958081
Product Length/Depth
13.13 in
Product Height
15.68 in
Product Width
12.75 in
Product Weight
32.7 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class I, Zone 2 Class II, Division 1 Class III
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lumens
11000
Lumens per watt
75
Color temperature
Cool white
Mounting Method
No mounting module
Optical distribution
Type V
Guard type
No guard
Voltage rating
100-277 Vac
Material
Cast copper-free aluminum
Lens material
Tempered glass
Special features
Emergency driver system
Dimming
0-10 V
Frequency rating
50/60 Hz
Power factor
> 0.90
Wattage
102W
SP3D Design Package - Champ VMVL EM with Emergency Back-up Battery
Champ VMVL LED with Emergency Back-up Battery flyer
Crouse-Hinds series Champ VMVL LED with Emergency Back-up catalog page
IF 1920 - Champ VMVL and PVML Emergency LED Battery and Driver Replacement Kit
IF 1920 - Champ VMVL and PVML Emergency LED Battery and Driver Replacement Kit
Eaton Specification Sheet - VMVL-11-UNV1-EM1
The VMVL-11-UNV1-EM1 delivers high-output illumination with Type V optical distribution, providing bright, uniform coverage across large industrial spaces. This reduces fixture density and energy consumption while maintaining superior visibility for operators and maintenance teams. The emergency driver system adds business value by sustaining lighting during power outages, improving safety during critical transitions and potential evacuations. Rugged protections—IP66 enclosure, NEMA 4X rating, and hazardous location certifications (Class I Division 2, Zone 2, Class II Division 1, Class III)—translate to reduced maintenance cycles and longer service life in washdown, dusty, and chemically exposed environments. The 100–277 VAC input range and 0–10 V dimming enable seamless integration with modern building management and industrial control systems, supporting demand-side management. Copper-free aluminum construction and tempered glass lens contribute to durability and corrosion resistance, lowering replacement costs over the lifecycle. The fixture measures 13.13 in by 12.75 in by 15.68 in and weighs about 32.7 lb, making it suitable for retrofit projects with limited space and standardized mounting practices. This combination of rugged performance, energy efficiency, and compatibility with Type V lighting makes VMVL-11-UNV1-EM1 a practical solution for hazardous-area applications such as chemical processing, oil and gas facilities, mining, and other heavy-industry environments requiring resilient, code-compliant illumination throughout the facility.
Get a Quick Quote for a Eaton Crouse-Hinds VMVL-11-UNV1-EM1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds VMVL-11-UNV1-EM1?
Enquire Now
FAQs
VMVL-11-UNV1-EM1 is designed for hazardous and classified locations. It carries NEC/CEC compliance with Class I Division 2 and Zone 2 ratings, plus Class II Division 1 and Class III where applicable. The enclosure meets IP66 and NEMA 4X protections, allowing safe installation in washdown areas, outdoor sites, and harsh indoor environments while operating on 100–277 VAC.
The fixture incorporates an emergency driver system that provides illumination during mains power outages, supporting safe egress and continued visibility for critical processes. This capability reduces downtime risk and enhances safety in facilities where power reliability is a concern; for exact backup duration and testing procedures, please consult the Eaton VMVL EM datasheet.
VMVL-11-UNV1-EM1 supports 0–10 V dimming and operates from 100–277 VAC. It delivers up to 11,000 lumens at a 75 lm/W efficacy with a power draw of 102 W and a power factor better than 0.90, enabling integration with lighting controls and energy management systems while maintaining high-visibility levels.
The luminaire features Type V optical distribution, tempered glass lens, and copper-free aluminum housing, optimized for durability. It has IP66 ingress protection and NEMA 4X enclosure, plus hazardous location ratings suitable for Class I/II environments. Its compact footprint and absence of a mounting module simplify retrofits, while its rugged build reduces maintenance needs in washdown or dusty industrial areas.
This fixture combines high lumen output with energy efficiency, emergency back-up, and robust certifications (NEC/CEC, IP66, NEMA 4X, Class I Division 2, Zone 2). The result is improved safety, reduced downtime, and lower maintenance costs in hazardous industrial settings, making it a sustainable choice for long-term capital projects and code-compliant upgrades.
