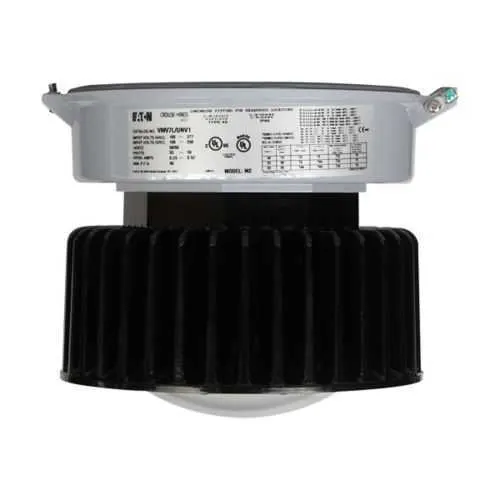

Eaton Crouse-Hinds VMVL-11-UNV1-S892 LED Fixture - IP66
Part Number: VMVL-11-UNV1-S892
Quick Summary
Eaton Crouse-Hinds VMVL-11-UNV1-S892 LED Fixture provides high-output hazardous-area lighting for industrial facilities. In harsh environments, reliable illumination is essential, yet maintenance cycles and ingress can drive costly downtime. This luminaire carries NEC/CEC and IECEx/ATEX certifications, IP66 ingress protection, and NEMA 4X ruggedness, making it suitable for Hazardous/Classified Locations. It accepts 100-277 VAC or 127-250 VDC, features a dimmable redundant driver, and delivers 11000 lumens at 92W with a robust 75 lm/W efficiency. Designed with a heat- and impact-resistant glass lens and a die-cast aluminum housing, it aligns with Type V optical distribution for precise light control. For facilities seeking compliant, energy-efficient, long-life lighting, VMVL offers a clear path to lower operating costs and easier maintenance.
Product Information
Extended Description
VMVL-11-UNV1-S892 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Champ VMVL LED fixture, Cool white, 320W HID equivalent, No guard, Glass lens, 11000 lumens, 122 lm/W, Die cast aluminum, No mounting module, Type V, Redundant driver, 100-277 Vac, 127-250 Vdc, 92W
Product Name
Eaton Crouse-Hinds series Champ VMVL LED light fixture
Catalog Number
VMVL-11-UNV1-S892
UPC
662276914094
Product Length/Depth
13 in
Product Height
13.13 in
Product Width
12.75 in
Product Weight
20.8 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC IEC IECEx/ATEX
NEC hazardous rating
Class I, Division 2 Class I, Zone 2 Class II, Division 1 Class III
IECEx/ATEX hazardous rating
Zone 21
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lumens
11000
Lumens per watt
75
Color temperature
Cool white
Mounting Method
No mounting module
Optical distribution
Type V
Guard type
No guard
Voltage rating
100-277 Vac, 127-250 Vdc
Frequency rating
50/60 Hz
Wattage
92W
Dimming
Dimmable driver
Power factor
> 0.90
Equivalent luminaire
320W HID
Material
Die cast aluminum
Lens material
Heat and impact resistant glass
Special features
Redundant driver
SP3D Design Package - Champ VMVL LED Hazardous Area Light Fixtures
Crouse-Hinds series DLC approved lighting products
Crouse-Hinds series DLC approved lighting products
Crouse-Hinds series DLC approved lighting products
Crouse-Hinds series Champ VMVL LED luminaires - 3,000 to 13,000 lumens catalog page
IF 1882 - Champ VMVL and PVML LED luminaires
IF 1882 - Champ VMVL and PVML LED luminaires
Eaton Specification Sheet - VMVL-11-UNV1-S892
Eaton Specification Sheet - VMVL-11-UNV1-S892
Feature: Redundant driver enhances uptime and reliability → Business Impact: Reduces unplanned outages and maintenance interventions in hazardous environments → Application: Chemical plants, oil & gas facilities, and mining operations benefit from continuous illumination. The VMVL’s redundant driver minimizes field failures and supports safer work conditions. Long-tail keywords: hazardous location lighting, redundant driver luminaire, VMVL LED light fixture. Feature: Dimmable driver enables control and energy optimization → Business Impact: Lower energy consumption and compatibility with building management systems → Application: Plants seeking dimmable flexibility for shift lighting or shutdown scenarios. This capability supports energy codes compliance and reduced operating costs. Long-tail keywords: dimmable LED fixture, lighting control in hazardous areas, energy-efficient VMVL luminaire. Feature: Universal voltage range 100-277 VAC / 127-250 VDC → Business Impact: Simplifies procurement and installation across multiple sites, reducing inventory and risk of mismatched power supplies → Application: Global operations and multi-site facilities; compatible with varied electrical systems. Long-tail keywords: universal voltage LED light, 100-277 VAC luminaire, 127-250 VDC lighting. Feature: IP66 and NEMA 4X housing with glass lens → Business Impact: Superior ingress protection and corrosion resistance extend service life in dust, water, and chemical environments → Application: Offshore platforms, refineries, and processing plants. Long-tail keywords: IP66 hazardous area light, NEMA 4X LED luminaire, rugged LED fixture. Feature: Type V optical distribution and die-cast aluminum housing → Business Impact: Precise light distribution with durability reduces maintenance cycles and improves safety margins → Application: Wide-area illumination in large industrial rooms and outdoor hazardous locations. Long-tail keywords: Type V lighting, glass lens luminaire, durable LED housing. Feature: 11000 lumens at 92W (~75 lm/W) with high PF → Business Impact: High-output efficiency lowers total cost of ownership and improves compliance with energy standards → Application: High bay and open-area lighting in hazardous locations. Long-tail keywords: LED high-output luminaire, energy-efficient hazardous-area light, high-lumen LED fixture.
Get a Quick Quote for a Eaton Crouse-Hinds VMVL-11-UNV1-S892
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds VMVL-11-UNV1-S892?
Enquire Now
FAQs
Yes. VMVL-11-UNV1-S892 is certified for NEC/CEC and IECEx/ATEX, supports Zone 21, IP66 protection, and NEMA 4X housing, making it appropriate for Class I, Division 2 and other hazardous locations when installed with proper mounting hardware and in compliance with local codes.
The luminaire operates at 100-277 VAC or 127-250 VDC, runs at 92W with 11000 lumens (≈75 lm/W), and features a dimmable redundant driver with PF > 0.90 for stable performance across voltages and dimming levels.
VMVL-11-UNV1-S892 uses a mounting approach compatible with the Champ VMVL family; no mounting module is included, so choose an appropriate mounting accessory aligned with Type V distribution and site requirements to ensure secure installation in hazardous areas.
It carries NEC/CEC, IECEx/ATEX certifications, IP66 ingress protection, and NEMA 4X enclosure rating, with hazardous location ratings for Class I, Division 2 and Zone 21 as part of the IECEx/ATEX framework.
The redundant dimmable driver and LED efficiency reduce downtime and energy costs, while the rugged die-cast aluminum housing and glass lens lower corrosion-related maintenance, delivering lower total cost of ownership in hazardous-location environments.
