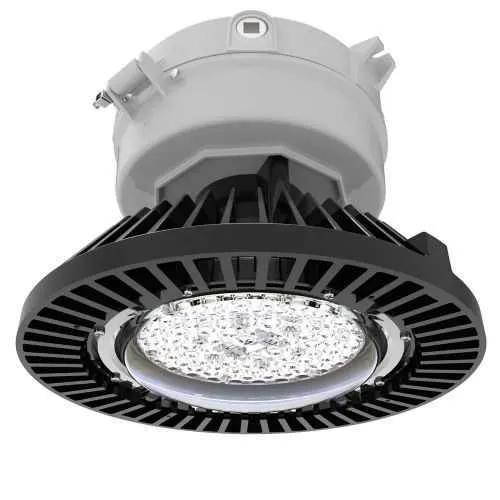

Eaton Crouse-Hinds VMVL-17-2A-UNV1-M2 LED light fixture - IP66

Part Number: VMVL-17-2A-UNV1-M2
Manufacturer
Eaton Crouse-Hinds
Part number
VMVL-17-2A-UNV1-M2

Quick Summary

VMVL-17-2A-UNV1-M2 is a high-output LED light fixture designed for hazardous-location illumination in industrial facilities. Engineers seek reliable performance in wet, dusty environments with minimal maintenance windows, and this module delivers that with a rugged die-cast aluminum housing and a heat-and-impact resistant glass lens. The luminaire carries IECEx/ATEX Zone 21 certification, a NEMA 4X enclosure rating, and IP66 ingress protection, ensuring safe operation in demanding locations. Beyond compliance, the VMVL’s pendant-mount design and wide voltage range simplify retrofits and new-builds alike, helping facility managers reduce inventory, optimize energy use, and meet safety standards across global operations.

Product Information

Extended Description

VMVL-17-2A-UNV1-M2 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Champ VMVL LED fixture, Cool white, 400W-600W HID equivalent, No guard, Heat and impact resistant glass lens, 17000 lumens, 121 lm/W, Die cast aluminum, Pendant mount, Type V, 3/4", 120-277 Vac, 108-250 Vdc, 140W
Product Name
Eaton Crouse-Hinds series Champ VMVL LED light fixture
Catalog Number
VMVL-17-2A-UNV1-M2
UPC
662276992290
Product Length/Depth
14.17 in
Product Height
11.56 in
Product Width
14.17 in
Product Weight
23.55 lb
Area classification
Hazardous/Classified Locations
Standards type
IECEx/ATEX NEC/CEC IEC
NEC hazardous rating
Class I, Zone 2 Class III Class II, Division 1 Class I, Division 2
IECEx/ATEX hazardous rating
Zone 21
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lumens
17000
Lumens per watt
121
Color temperature
Cool white
Mounting Method
Pendant
Trade size
100-240 Vac, 127-250 Vdc
Optical distribution
Type V
Guard type
No guard
Voltage rating
120-277 Vac, 108-250 Vdc
Frequency rating
50/60 Hz
Wattage
140W
Dimming
Dimmable driver
Power factor
> 0.90
Equivalent luminaire
400W-600W HID
Material
Die cast aluminum
Lens material
Heat and impact resistant glass
High lumen output with efficient LED driver: 17000 lumens at 121 lm/W deliver HID-equivalent brightness with far lower energy consumption and reduced cooling requirements, translating to lower operating costs and extended component life in high-bay or outdoor hazardous areas. This performance supports safer, more productive work environments by improving visibility where it matters most. Rugged protection and durable construction: IP66 and NEMA 4X ratings shield against dust, water, and harsh handling, reducing maintenance intervals and replacement costs in corrosive or blasting environments, while keeping downtime to a minimum. Type V optical distribution: Provides a full, symmetrical beam pattern ideal for wide industrial aisles and storage facilities, enabling consistent illumination with fewer shadowed zones and easier compliance with lighting standards. Dimmable driver for energy management: Smooth dimming compatibility enables integration with control systems and occupancy sensors, delivering energy savings without sacrificing critical visibility in live processes. Wide voltage range and flexible installation: 120-277 VAC and 108-250 VDC support global site requirements, with pendant mounting delivering flexible placement in elevated or hard-to-reach locations. These features address common questions about retrofits, safety, and long-term total cost of ownership by offering a future-proof lighting solution for hazardous areas.

Get a Quick Quote for a Eaton Crouse-Hinds VMVL-17-2A-UNV1-M2

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton Crouse-Hinds VMVL-17-2A-UNV1-M2? Enquire Now

FAQs

The VMVL-17-2A-UNV1-M2 uses a pendant mounting configuration, which provides flexible placement for high-ceiling, hazardous-area installations. The design accommodates standard pendant hardware and compatible suspension systems, simplifying retrofit projects by avoiding custom brackets. This mount type also enables easy service access and beam adjustment without compromising enclosure integrity.
This luminaire is certified for hazardous locations with IECEx/ATEX Zone 21 compliance, a NEMA 4X enclosure rating, and IP66 ingress protection. It also aligns with NEC/CEC standards and CE marking, supporting global deployment in Class I, Zone 2 environments and other classified locations, ensuring regulatory and safety compliance across jurisdictions.
The VMVL-17-2A-UNV1-M2 supports a wide input range of 120-277 VAC and 108-250 VDC, with a trade-ready specification of 100-240 VAC and 127-250 VDC. This broad voltage tolerance simplifies international installation, reduces stocking complexity, and supports seamless integration with diverse power systems and emergency supply configurations.
The fixture delivers 17000 lumens at approximately 121 lm/W with a 140W power draw, delivering HID-equivalent brightness with significantly improved energy efficiency. The high-efficiency driver reduces heat output and lowers ongoing electricity costs, making it suitable for long-life operation in demanding hazardous environments while maintaining consistent illumination.
Yes. Its IP66/NEMA 4X protective rating, Type V beam distribution, heat-resistant glass lens, and dimmable driver simplify retrofits in hazardous/classified locations. The pendant-mount option and wide voltage range minimize installation complexity, while the LED’s long life and low maintenance align with ROI goals in facilities prioritizing safety, reliability, and uptime.
