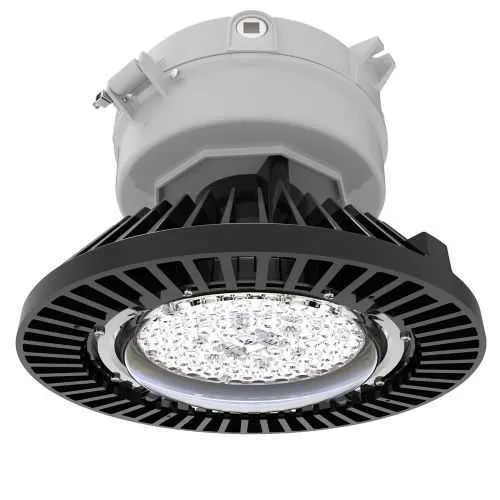

Eaton Crouse-Hinds VMVL-17-N-UNV34-M2 LED Light - IP66

Part Number: VMVL-17-N-UNV34-M2
VMVL-17-N-UNV34-M2
Manufacturer
Eaton Crouse-Hinds
Part number
VMVL-17-N-UNV34-M2
Category

Quick Summary

VMVL-17-N-UNV34-M2 LED light fixture provides high-output illumination for hazardous-area environments, enabling safe operation in extreme industrial locations. Maintenance teams contend with lens degradation, heat buildup, and corrosion that drive downtime and replacement costs. This luminaire carries NEC/CEC IECEx/ATEX certifications and a NEMA 4X/IP66 protection rating, ensuring reliable operation in Hazardous/Classified Locations. Designed for 347-480 VAC and dimmable drivers, with Type V optics and a die-cast aluminum housing, it supports global operations while delivering energy efficiency and low total cost of ownership.

Product Information

Extended Description

VMVL-17-N-UNV34-M2 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Champ VMVL LED fixture, Neutral white, 400W-600W HID equivalent, No guard, Heat and impact resistant glass lens, 17000 lumens, 121 lm/W, Die cast aluminum, No mounting module, Type V, 347-480 Vac, 136W
Product Name
Eaton Crouse-Hinds series Champ VMVL LED light fixture
Catalog Number
VMVL-17-N-UNV34-M2
UPC
662276976320
Product Length/Depth
14.17 in
Product Height
9.53 in
Product Width
14.17 in
Product Weight
22.3 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC IEC IECEx/ATEX
NEC hazardous rating
Class I, Division 2 Class I, Zone 2 Class II, Division 1 Class III
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lumens
17000
Lumens per watt
121
Color temperature
Neutral white
Mounting Method
No mounting module
Optical distribution
Type V
Guard type
No guard
Voltage rating
347-480 Vac
Frequency rating
50/60 Hz
Wattage
136W
Dimming
Dimmable driver
Power factor
> 0.90
Equivalent luminaire
400W-600W HID
Material
Die cast aluminum
Lens material
Heat and impact resistant glass
SP3D Design Package - Champ VMVL LED Hazardous Area Light Fixtures Crouse-Hinds series DLC approved lighting products Crouse-Hinds series DLC approved lighting products Crouse-Hinds series DLC approved lighting products Crouse-Hinds series Champ VMVL LED Luminaires - 17,000 to 25,000 lumens catalog pages IF 1912 - Champ VMVL and PVML high lumen LED luminaires IF 1912 - Champ VMVL and PVML high lumen LED luminaires IF 1912 - Champ VMVL and PVML high lumen LED luminaires Champ VMV LED High Lumen Hazardous Area Champ VMV LED High Lumen Hazardous Area Champ VMV LED High Lumen Hazardous Area
Feature: High lumen output and energy efficiency → Business impact: Up to 17000 lumens at 121 lm/W reduces the number of fixtures required and lowers energy consumption, translating to lower operating costs → Application: Large industrial facilities, corridors, and outdoor industrial yards. Feature: Rugged enclosure with IP66 and NEMA 4X protection → Business impact: Superior protection against dust, water ingress, and corrosion reduces maintenance intervals and downtime → Application: Hazardous locations such as chemical plants, oil and gas facilities, and offshore platforms. Feature: 347-480 VAC operation with dimmable driver → Business impact: Flexible integration with varied electrical infrastructures and lighting controls, enabling occupancy-based energy savings → Application: Global operations with diverse power networks and smart building strategies. Feature: Type V optics and heat-resistant glass lens → Business impact: Uniform, glare-free illumination with extended lens life, improving safety and visibility in critical processes → Application: Process areas, tank farms, and loading areas. Feature: Die-cast aluminum housing with no mounting module → Business impact: Secure, quick installation with reduced mounting complexity and enhanced durability → Application: Indoor and outdoor hazardous locations requiring robust, reliable mounting.

Get a Quick Quote for a Eaton Crouse-Hinds VMVL-17-N-UNV34-M2

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton Crouse-Hinds VMVL-17-N-UNV34-M2? Enquire Now

FAQs

VMVL-17-N-UNV34-M2 is suitable for NEC/CEC locations including Class I, Division 2; Zone 2; Class II, Division 1; and Class III. It carries IECEx/ATEX certifications and a NEMA 4X/IP66 enclosure, making it reliable in chemical plants, refineries, and offshore facilities. It requires no mounting module and supports Type V optics.
The luminaire operates at 347–480 VAC with a 50/60 Hz frequency rating and a nominal wattage of 136 W. It offers a dimmable driver and a power factor better than 0.90, enabling smooth integration with lighting controls and occupancy sensors in hazardous areas.
Ideal for chemical processing, oil and gas facilities, power generation sites, and offshore platforms requiring robust hazardous-location lighting. The Type V optics provide uniform illumination for large outdoor areas, yards, and process floors, while the rugged housing withstands heat, corrosion, and impacts.
This luminaire complies with NEC/CEC and IECEx/ATEX standards for hazardous locations, with IP66 ingress protection and a NEMA 4X enclosure. It is designed for Hazardous/Classified Locations, supporting compliance in diverse global environments.
With 17000 lumens and 121 lm/W efficiency, the fixture lowers energy costs while reducing maintenance due to long-lifecycle LEDs and rugged construction. The sealed glass lens and aluminum housing minimize lens replacement and corrosion-related downtime, delivering lower total cost of ownership in demanding facilities.
