VMVL-17-R5M-UNV34-M2

Part Number: VMVL-17-R5M-UNV34-M2
VMVL-17-R5M-UNV34-M2
Manufacturer
Eaton Crouse-Hinds
Part number
VMVL-17-R5M-UNV34-M2
Category

Product Information

Extended Description

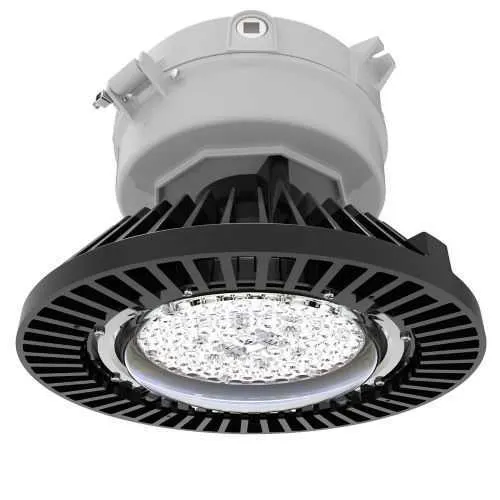

VMVL-17-R5M-UNV34-M2 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Champ VMVL LED fixture, Cool white, Dimmable, No guard, Heat and impact resistant glass lens, 17000 lm, 131 lm/W, Die cast aluminum, No mounting module, Medium optics, 347-480 Vac, 133W
Product Name
Eaton Crouse-Hinds series Champ VMVL LED light fixture
Catalog Number
VMVL-17-R5M-UNV34-M2
UPC
662277143158
Product Length/Depth
14.17 in
Product Height
9.53 in
Product Width
14.17 in
Product Weight
22.3 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC IEC IECEx/ATEX
NEC hazardous rating
Class I, Division 2 Class I, Zone 2 Class II, Division 1 Class III
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lumens
17000
Lumens per watt
131
Color temperature
Cool white
Mounting Method
No mounting module
Optical distribution
Medium
Guard type
No guard
Voltage rating
347-480 Vac
Frequency rating
50/60 Hz
Wattage
133W
Dimming
Dimmable driver
Power factor
0.9
Material
Die cast aluminum
Lens material
Heat and impact resistant glass
SP3D Design Package - Champ VMVL LED Hazardous Area Light Fixtures Crouse-Hinds series Champ VMVL LED Luminaires - 17,000 to 25,000 lumens brochure Crouse-Hinds series Champ VMVL LED Luminaires - 17,000 to 25,000 lumens catalog pages Champ VMVL LED Hazardous Area Light Fixtures UL certification (Marine) Champ VMVL LED Hazardous Area Light Fixtures UL certification (Marine) Champ VMVL LED Hazardous Area Light Fixtures UL certification (Marine) Champ VMVL LED Hazardous Area Light Fixtures UL certification (Marine) Champ VMVL LED Hazardous Area Light Fixtures UL certification (Marine) IF 1965 - Champ VMVL and PVML High Lumen LED Luminaires Crouse-Hinds series Champ VMVL LED High Lumen IES photometric files Crouse-Hinds series Champ VMVL LED High Lumen IES photometric files
