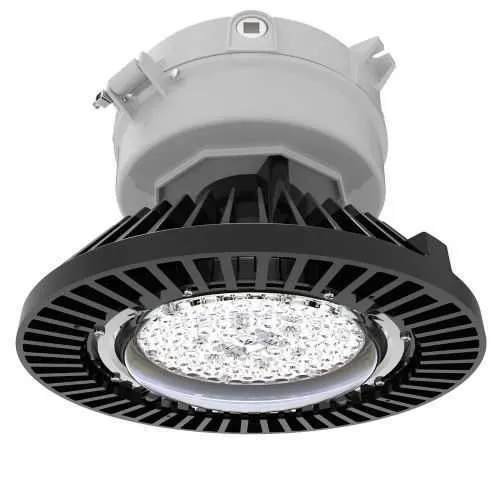

Eaton Crouse-Hinds VMVL-17-R5N-G-UNV1-M2 LED Light Fixture - IP66/NEMA 4X Hazardous Location

Part Number: VMVL-17-R5N-G-UNV1-M2
VMVL-17-R5N-G-UNV1-M2
Manufacturer
Eaton Crouse-Hinds
Part number
VMVL-17-R5N-G-UNV1-M2
Category

Quick Summary

VMVL-17-R5N-G-UNV1-M2 is a high-output LED light fixture for hazardous locations and industrial facilities. In challenging environments, reliable illumination and quick maintenance are critical; this unit delivers both with robust construction and long life. It carries NEC/CEC, IECEx/ATEX certifications and Zone 21, alongside IP66 and NEMA 4X ratings, ensuring safe operation in harsh conditions and compliance with global standards. For engineers and procurement teams, the combination of dimmable performance, wide voltage tolerance, and a 17,000-lumen output translates to fewer fixtures and lower lifecycle costs. This makes VMVL ideal for hazardous area lighting, offshore rigs, chemical plants, and other demanding settings where uptime matters and energy efficiency drives savings.

Product Information

Extended Description

VMVL-17-R5N-G-UNV1-M2 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Champ VMVL LED fixture, Cool white, Dimmable, Wire guard, Heat and impact resistant glass lens, 17000 lm, 131 lm/W, Die cast aluminum, No mounting module, Narrow optics, 120-277 Vac, 108-250 Vdc, 134W
Product Name
Eaton Crouse-Hinds series Champ VMVL LED light fixture
Catalog Number
VMVL-17-R5N-G-UNV1-M2
UPC
662277142014
Product Length/Depth
14.17 in
Product Height
11.59 in
Product Width
14.17 in
Product Weight
22.73 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC IEC IECEx/ATEX
NEC hazardous rating
Class I, Division 2 Class I, Zone 2 Class II, Division 1 Class III
IECEx/ATEX hazardous rating
Zone 21
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lumens
17000
Lumens per watt
131
Color temperature
Cool white
Mounting Method
No mounting module
Optical distribution
Narrow
Guard type
Wire
Voltage rating
120-277 Vac, 108-250 Vdc
Frequency rating
50/60 Hz
Wattage
134W
Dimming
Dimmable driver
Power factor
0.9
Material
Die cast aluminum
Lens material
Heat and impact resistant glass
SP3D Design Package - Champ VMVL LED Hazardous Area Light Fixtures Crouse-Hinds series Champ VMVL LED Luminaires - 17,000 to 25,000 lumens brochure Crouse-Hinds series Champ VMVL LED Luminaires - 17,000 to 25,000 lumens catalog pages Champ VMVL LED Hazardous Area Light Fixtures UL certification (Marine) Champ VMVL LED Hazardous Area Light Fixtures UL certification (Marine) Champ VMVL LED Hazardous Area Light Fixtures UL certification (Marine) Champ VMVL LED Hazardous Area Light Fixtures UL certification (Marine) Champ VMVL LED Hazardous Area Light Fixtures UL certification (Marine) IF 1965 - Champ VMVL and PVML High Lumen LED Luminaires Crouse-Hinds series Champ VMVL LED High Lumen IES photometric files Crouse-Hinds series Champ VMVL LED High Lumen IES photometric files
High-lumen output and efficiency is a core capability: VMVL-17-R5N-G-UNV1-M2 delivers 17,000 lumens at 131 lm/W, reducing the number of fixtures required and lowering energy costs over the life of the facility. In manufacturing floor spaces, spill light is minimized and maintenance intervals extend due to the long LED life, ensuring consistent daylight-quality illumination for critical operations. Hazardous-location certification and protective enclosures provide regulatory peace of mind: NEC/CEC IECEx/ATEX certifications, Zone 21 rating, IP66 ingress protection, and a NEMA 4X enclosure meet stringent environmental and safety standards. This enables quicker approvals, fewer on-site protective add-ons, and safer operation in chemical plants, refineries, and offshore rigs. Dimming and wide voltage range optimize integration: a dimmable driver supports 120-277 VAC and 108-250 VDC with a power factor of 0.9, enabling seamless control with existing PLCs and lighting strategies. The result is energy efficiency, reduced peak demand, and consistent light levels across process areas. Rugged construction for harsh environments: die-cast aluminum housing, heat- and impact-resistant glass, and narrow optical distribution withstand vibration, chemicals, and temperature cycles. This durability reduces replacement intervals and maintenance costs, especially in confined spaces like stairwells, platforms, and entryways. Installation flexibility and compatibility: no mounting module simplifies retrofits and new installs, while a built-in wire guard option protects the luminaire in exposed zones. Compact dimensions and a 22.73 lb weight strike a balance between field handling and rugged protection, easing design integration. Documentation-backed performance: comprehensive SP3D packages, photometric files, and installation sheets support engineering design, procurement, and commissioning, reducing project risk and accelerating owner-operator handover.

Get a Quick Quote for a Eaton Crouse-Hinds VMVL-17-R5N-G-UNV1-M2

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton Crouse-Hinds VMVL-17-R5N-G-UNV1-M2? Enquire Now

FAQs

For reliable installation in hazardous locations, verify compliance with NEC/CEC and IECEx/ATEX standards, ensure IP66/NEMA 4X enclosures are intact, and use the appropriate guard. The unit supports dimming and wide voltage input, so plan wiring to 120-277 VAC or 108-250 VDC circuits and coordinate with control systems for proper dimming and fault isolation.
Key specs include 17,000 lumens at 131 lm/W, 134 W power consumption, a 0.9 power factor, and voltage tolerance of 120-277 VAC or 108-250 VDC. Frequency is 50/60 Hz, and the fixture is dimmable. These characteristics support energy savings, robust light quality, and compatibility with common industrial controls.
Yes. VMVL-17-R5N-G-UNV1-M2 is certified for Zone 21 and Class I, Division 2 locations, along with Class II Division 1 and Class III in NEC contexts. It also meets IECEx/ATEX requirements, ensuring safe operation in hazardous areas such as chemical plants and offshore facilities.
The luminaire carries IECEx/ATEX certifications and Zone 21 ratings, with UL certification references in the downloadable literature. IP66 and NEMA 4X protection further support marine and offshore use by resisting water ingress and corrosion while maintaining electrical safety in exposed environments.
The LED design delivers long life with reduced replacement frequency, lowering maintenance downtime and spare-part costs. Energy efficiency from 131 lm/W plus dimming reduces operating expenses. Additionally, robust certification and protective features minimize downtime due to compliance or protective enclosures, delivering a favorable total cost of ownership over the fixture’s lifespan.
