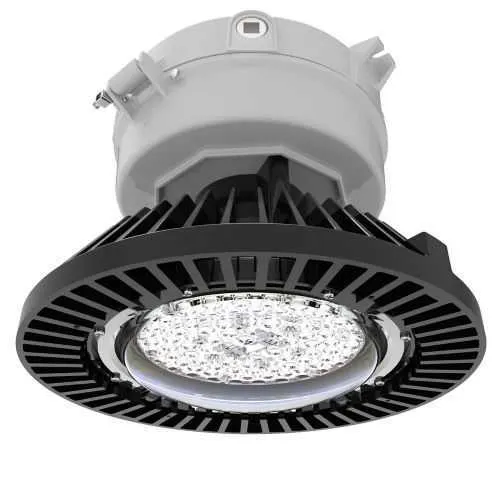

Eaton Crouse-Hinds VMVL-17-R5N-UNV1-M2 LED Light - Zone 21

Part Number: VMVL-17-R5N-UNV1-M2
VMVL-17-R5N-UNV1-M2
Manufacturer
Eaton Crouse-Hinds
Part number
VMVL-17-R5N-UNV1-M2
Category

Quick Summary

VMVL-17-R5N-UNV1-M2 LED light fixture delivers high-lumen, durable lighting for hazardous locations in industrial facilities. Engineers often face unreliable lighting in harsh environments, where heat, dust, and vibration shorten service life and complicate maintenance. This luminaire carries NEC/CEC and IECEx/ATEX certifications, including Zone 21, IP66, and NEMA 4X, providing global compliance with hazardous-area standards. By combining dimmable performance with a compact die-cast aluminum housing, it reduces energy and maintenance costs while meeting stringent safety requirements. The result is a scalable solution that supports cost-effective asset management and consistent illumination across diverse facilities, from petrochemical plants to mining sites.

Product Information

Extended Description

VMVL-17-R5N-UNV1-M2 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Champ VMVL LED fixture, Cool white, Dimmable, No guard, Heat and impact resistant glass lens, 17000 lm, 131 lm/W, Die cast aluminum, No mounting module, Narrow optics, 120-277 Vac, 108-250 Vdc, 134W
Product Name
Eaton Crouse-Hinds series Champ VMVL LED light fixture
Catalog Number
VMVL-17-R5N-UNV1-M2
UPC
662277142045
Product Length/Depth
14.17 in
Product Height
9.53 in
Product Width
14.17 in
Product Weight
22.3 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC IEC IECEx/ATEX
NEC hazardous rating
Class I, Division 2 Class I, Zone 2 Class II, Division 1 Class III
IECEx/ATEX hazardous rating
Zone 21
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lumens
17000
Lumens per watt
131
Color temperature
Cool white
Mounting Method
No mounting module
Optical distribution
Narrow
Guard type
No guard
Voltage rating
120-277 Vac, 108-250 Vdc
Frequency rating
50/60 Hz
Wattage
134W
Dimming
Dimmable driver
Power factor
0.9
Material
Die cast aluminum
Lens material
Heat and impact resistant glass
SP3D Design Package - Champ VMVL LED Hazardous Area Light Fixtures Crouse-Hinds series Champ VMVL LED Luminaires - 17,000 to 25,000 lumens brochure Crouse-Hinds series Champ VMVL LED Luminaires - 17,000 to 25,000 lumens catalog pages Champ VMVL LED Hazardous Area Light Fixtures UL certification (Marine) Champ VMVL LED Hazardous Area Light Fixtures UL certification (Marine) Champ VMVL LED Hazardous Area Light Fixtures UL certification (Marine) Champ VMVL LED Hazardous Area Light Fixtures UL certification (Marine) Champ VMVL LED Hazardous Area Light Fixtures UL certification (Marine) IF 1965 - Champ VMVL and PVML High Lumen LED Luminaires Crouse-Hinds series Champ VMVL LED High Lumen IES photometric files Crouse-Hinds series Champ VMVL LED High Lumen IES photometric files
Feature: High lumen output of 17000 lm with a 134 W power draw. Business Impact: Delivers bright, reliable illumination while optimizing energy consumption for large-area coverage. Application: Useful in expansive industrial spaces like warehouses and pump stations where consistent visibility reduces safety risks. Feature: 131 lm/W efficiency and cool white color temperature. Business Impact: Lower operating costs and improved worker comfort with accurate color rendering in hazardous environments. Application: Petrochemical plants and refineries needing precise task lighting. Feature: Dimmable driver with wide voltage range 120-277 VAC and 108-250 VDC. Business Impact: Flexible integration with existing controls and emergency systems, enabling scene lighting and energy management. Application: Facilities with variable loading or automated lighting schemes. Feature: Die-cast aluminum housing with heat and impact resistant glass; IP66 and NEMA 4X protection. Business Impact: Superior durability against dust, water jets, corrosion, and impact, reducing maintenance cycles. Application: Coastal or chemical processing environments. Feature: No mounting module; narrow optical distribution; guardless design. Business Impact: Faster installation and targeted illumination in tight spaces like aisles or containment pits. Application: Assembly lines, bunkers, and outdoor enclosures. Feature: Hazardous-location certifications NEC/CEC IECEx/ATEX Zone 21; Class I, Division 2; Zone 2; Zone 21. Business Impact: Simplified cross-border compliance and reduced risk of nonconformance. Application: Global rollouts in mining, oil & gas, and chemical processing.

Get a Quick Quote for a Eaton Crouse-Hinds VMVL-17-R5N-UNV1-M2

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton Crouse-Hinds VMVL-17-R5N-UNV1-M2? Enquire Now

FAQs

The VMVL-17-R5N-UNV1-M2 is designed for straightforward installation with no separate mounting module required. Use appropriate mounting hardware for your enclosure or structure, attach to a suitable support surface, and connect the input wiring to a 120-277 VAC (or 108-250 VDC) power source. Ensure seals and cable entries meet IP66 protection requirements and follow local hazardous-location wiring codes (NEC/CEC). The compact die-cast housing aids in restricted spaces and vibration-prone areas, reducing installation time and potential rework.
This luminaire outputs 17000 lumens at 134 watts, achieving 131 lm/W with a dimmable driver. It operates across 120-277 VAC and 108-250 VDC, at 50/60 Hz, and maintains a power factor around 0.9. The cool white LED output supports accurate color rendering for task lighting in hazardous environments, while dimming enables integration with control systems and energy management strategies.
Yes. The VMVL-17-R5N-UNV1-M2 carries IECEx/ATEX Zone 21 and NEC/CEC certifications, including hazardous-area ratings such as Class I, Division 2 and Zone 2, along with Zone 21. It also features IP66 and NEMA 4X protection, making it appropriate for harsh, dusty, and wet environments typically found in chemical plants, oil & gas facilities, and mining operations.
The luminaire meets NEC/CEC and IECEx/ATEX standards, including Zone 21 hazardous locations certification, plus IP66 ingress protection and NEMA 4X enclosure protection. These certifications support cross-border deployments and regulatory compliance for international projects in hazardous locations and demanding outdoor installations.
With 17000 lumens at 134W and a dimmable driver, the VMVL-17-R5N-UNV1-M2 offers high efficiency (131 lm/W) and flexible control, reducing energy costs. The rugged die-cast housing and glass lens resist heat, impact, dust, and moisture, lowering maintenance frequency. Global hazardous-location certifications also minimize compliance risk during asset deployment and lifecycle management.
