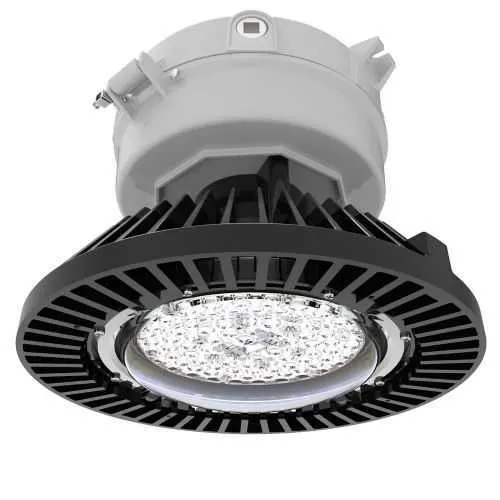

Eaton Crouse-Hinds VMVL-17-UNV34-M2 LED Light Fixture - IP66
Part Number: VMVL-17-UNV34-M2
Quick Summary
VMVL-17-UNV34-M2 LED light fixture delivers high-output illumination for hazardous locations. Engineers and maintenance teams need rugged, explosion-protected lighting that performs reliably across broad voltage ranges in demanding environments. This luminaire is designed for Hazardous/Classified Locations and complies with NEC/CEC and IECEx/ATEX standards, featuring IP66 ingress protection and a NEMA 4X enclosure for harsh industrial service. It supports 347-480 Vac operation and delivers about 17,000 lumens at 121 lm/W, reducing maintenance cycles and energy costs. With a dimmable driver and Type V optical distribution, it offers flexible installation and precise control in safety-critical areas. This combination supports lifecycle cost reduction by extending lumen maintenance and simplifying compliance reporting for hazardous-area projects.
Product Information
Extended Description
VMVL-17-UNV34-M2 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Champ VMVL LED fixture, Cool white, 400W-600W HID equivalent, No guard, Heat and impact resistant glass lens, 17000 lumens, 121 lm/W, Die cast aluminum, No mounting module, Type V, 347-480 Vac, 136W
Product Name
Eaton Crouse-Hinds series Champ VMVL LED light fixture
Catalog Number
VMVL-17-UNV34-M2
UPC
662276975569
Product Length/Depth
14.17 in
Product Height
9.53 in
Product Width
14.17 in
Product Weight
22.3 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC IEC IECEx/ATEX
NEC hazardous rating
Class I, Division 2 Class I, Zone 2 Class II, Division 1 Class III
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lumens
17000
Lumens per watt
121
Color temperature
Cool white
Mounting Method
No mounting module
Optical distribution
Type V
Guard type
No guard
Voltage rating
347-480 Vac
Frequency rating
50/60 Hz
Wattage
136W
Dimming
Dimmable driver
Power factor
> 0.90
Equivalent luminaire
400W-600W HID
Material
Die cast aluminum
Lens material
Heat and impact resistant glass
SP3D Design Package - Champ VMVL LED Hazardous Area Light Fixtures
Crouse-Hinds series DLC approved lighting products
Crouse-Hinds series DLC approved lighting products
Crouse-Hinds series DLC approved lighting products
Crouse-Hinds series Champ VMVL LED Luminaires - 17,000 to 25,000 lumens catalog pages
IF 1912 - Champ VMVL and PVML high lumen LED luminaires
IF 1912 - Champ VMVL and PVML high lumen LED luminaires
IF 1912 - Champ VMVL and PVML high lumen LED luminaires
Champ VMV LED High Lumen Hazardous Area
Champ VMV LED High Lumen Hazardous Area
Champ VMV LED High Lumen Hazardous Area
High-output LED with 17000 lumens and 121 lm/W delivers bright, uniform coverage with fewer fixtures, reducing capital expenditure and installation time while maintaining excellent visibility in hazardous environments. The 347-480 Vac input and a dimmable driver enable precise control and compatibility with existing plant controls, improving energy management and reducing operating costs. Type V optical distribution provides predictable light patterns for long, wide-area coverage, aiding in safety-critical operations and compliance in process facilities. Die-cast aluminum housing combined with heat and impact resistant glass lens delivers robust protection against vibration, impact, and harsh weather, lowering maintenance and replacement cycles. The IP66 and NEMA 4X enclosures, along with NEC/CEC IECEx/ATEX certifications, ensure regulatory compliance and risk mitigation for Class I, Division 2 and Zone 2 applications. The fixture is equivalent to a 400W-600W HID system, enabling an economical retrofit with a simple payback in many facilities. Overall, the VMVL-17-UNV34-M2 harmonizes reliability, efficiency, and ease of installation for industrial lighting programs.
Get a Quick Quote for a Eaton Crouse-Hinds VMVL-17-UNV34-M2
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds VMVL-17-UNV34-M2?
Enquire Now
FAQs
VMVL-17-UNV34-M2 is designed with no mounting module, offering flexible installation alongside standard brackets or housings approved for hazardous areas. Its Type V distribution provides predictable photometrics, and the fixture’s rugged die-cast aluminum housing is rated IP66 with a NEMA 4X enclosure, ensuring secure mounting in Class I, Division 2 and Zone 2 environments while maintaining compliance with NEC/CEC IECEx/ATEX requirements.
The VMVL-17-UNV34-M2 delivers 17,000 lumens with a efficiency of 121 lm/W, powered by a 136W, dimmable driver. It operates at 347-480 Vac and maintains a power factor greater than 0.90. This combination provides bright, energy-efficient illumination suitable for large hazardous-area spaces and retrofit projects from legacy HID systems.
Yes. The VMVL-17-UNV34-M2 is rated for Hazardous/Classified Locations and supports Class I, Division 2; Zone 2; Class II, Division 1; and Class III environments. With IP66 ingress protection and a NEMA 4X enclosure, it is well-suited for oil, gas, chemical processing, and other demanding facilities where reliable illumination and regulatory compliance are critical.
This luminaire complies with NEC/CEC IECEx/ATEX standards for hazardous locations and features IP66 ingress protection and a NEMA 4X enclosure. It is designed for Hazardous/Classified Locations, with ratings supporting Class I Division 2 and Zone 2 installations, helping facilities meet stringent safety and regulatory requirements.
The 17000-lumen LED fixture offers long life and low maintenance compared with HID counterparts, while its dimmable driver allows optimized energy usage and control. Retrofit value is enhanced by delivering equivalent HID performance (400W-600W) at a fraction of the energy cost, reducing replacement intervals, downtime, and total cost of ownership in hazardous-area lighting programs.
