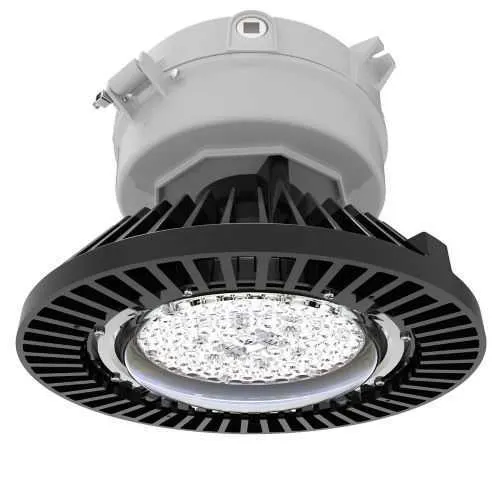

Eaton Crouse-Hinds VMVL-25-G-UNV34-M2 LED Light Fixture - IP66

Part Number: VMVL-25-G-UNV34-M2
VMVL-25-G-UNV34-M2
Manufacturer
Eaton Crouse-Hinds
Part number
VMVL-25-G-UNV34-M2
Category

Quick Summary

Eaton VMVL-25-G-UNV34-M2 LED light fixture provides high-output illumination for hazardous-area industrial spaces. In practice, maintenance teams face tough schedules, frequent re-lamping, and stringent regulatory requirements in harsh environments. This luminaire meets IECEx/ATEX and NEC/CEC standards, supports Hazardous/Classified Locations, and carries IP66/NEMA 4X ratings for demanding applications. For operators seeking reliability and lifecycle value, it delivers robust energy efficiency and easy integration with existing electrical systems, while offering a dimmable driver and rugged construction. Ideal for chemical plants, refineries, and offshore facilities, it helps reduce operating costs and downtime through durable, compliant LED lighting.

Product Information

Extended Description

VMVL-25-G-UNV34-M2 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Champ VMVL LED fixture, Cool white, 750W-1000W HID equivalent, Wire guard, Heat and impact resistant glass lens, 25000 lumens, 121 lm/W, Die cast aluminum, No mounting module, Type V, 347-480 Vac, 200W
Product Name
Eaton Crouse-Hinds series Champ VMVL LED light fixture
Catalog Number
VMVL-25-G-UNV34-M2
UPC
662276992412
Product Length/Depth
14.17 in
Product Height
14 in
Product Width
14.17 in
Product Weight
22.3 lb
Area classification
Hazardous/Classified Locations
Standards type
IEC IECEx/ATEX NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 1 Class III Class I, Zone 2
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lumens
25000
Lumens per watt
121
Color temperature
Cool white
Mounting Method
No mounting module
Optical distribution
Type V
Guard type
Wire
Voltage rating
347-480 Vac
Frequency rating
50/60 Hz
Wattage
200W
Dimming
Dimmable driver
Power factor
> 0.90
Equivalent luminaire
750W-1000W HID
Material
Die cast aluminum
Lens material
Heat and impact resistant glass
SP3D Design Package - Champ VMVL LED Hazardous Area Light Fixtures Crouse-Hinds series Global LED lighting portfolio Crouse-Hinds series Global LED lighting portfolio Crouse-Hinds series Global LED lighting portfolio Crouse-Hinds series Champ VMVL LED Luminaires - 17,000 to 25,000 lumens catalog pages IF 1888 - Champ VMVL and PVML Driver Replacement IF 1888 - Champ VMVL and PVML Driver Replacement IF 1888 - Champ VMVL and PVML Driver Replacement Eaton Specification Sheet - VMVL-25-G-UNV34-M2 Eaton Specification Sheet - VMVL-25-G-UNV34-M2 Eaton Specification Sheet - VMVL-25-G-UNV34-M2
High lumen output and efficiency: 25,000 lumens at 121 lm/W deliver more light per watt, reducing the number of fixtures and lowering energy and maintenance costs in large hazardous-area spaces such as warehouses and processing bays. This directly supports safer operations and faster project commissioning. 347-480 VAC operation with a dimmable driver: Enables precise illumination levels and scalable energy savings across varying process conditions, improving visibility on refinery floors and offshore platforms. Die-cast aluminum housing with heat and impact resistant glass: Provides rugged durability in corrosive, high-vibration environments, reducing replacement cycles and maintenance downtime in chemical plants. IP66 and NEMA 4X protection: Delivers proven ingress protection andors rugged performance in dusty, wet, or washdown areas, ensuring regulatory compliance and reducing risk in hazardous locations. Type V optical distribution with a wire guard: Guarantees uniform coverage for large-area lighting while protecting the lens and internal components from incidental damage in busy work zones. No mounting module required: Simplifies installation and minimizes ballast of mounting hardware, shortening project timelines and enabling rapid retrofit in existing hazardous-area installations.

Get a Quick Quote for a Eaton Crouse-Hinds VMVL-25-G-UNV34-M2

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton Crouse-Hinds VMVL-25-G-UNV34-M2? Enquire Now

FAQs

VMVL-25-G-UNV34-M2 features no mounting module, designed to work with standard mounting patterns used in hazardous environments. It supports 347-480 VAC power, a dimmable driver, and Type V optical distribution for broad area coverage. When deploying in Class I, Division 2 or Zone 2 locations, ensure electrical connections and enclosure integrity meet NEC/CEC and IECEx/ATEX guidance to maintain IP66 and NEMA 4X protection throughout the lifecycle.
The luminaire delivers 25,000 lumens at 121 lumens per watt using a 200W LED array. It operates at 347-480 VAC and offers a dimmable driver, enabling adaptive lighting. Its Type V distribution ensures uniform coverage across large areas, while the die-cast aluminum housing and heat-resistant glass lens support sustained performance in harsh environments.
Yes. The VMVL-25-G-UNV34-M2 is designed for Hazardous/Classified Locations and carries IECEx/ATEX and NEC/CEC standards. It supports Class I, Division 2, Class II, Division 1, Class III, and Zone 2 environments, with an IP66 ingress rating and NEMA 4X protection to meet stringent industrial compliance and safety requirements.
The luminaire aligns with IECEx/ATEX and NEC/CEC standards, providing broad regulatory acceptance. Its area classification is Hazardous/Classified Locations, and it carries IP66 and NEMA 4X ratings. These certifications facilitate cross-border use in chemical plants, refineries, mining operations, and offshore facilities while supporting safe, compliant operation.
LED longevity and robust construction reduce maintenance cycles and downtime, while the dimmable driver enables tailored lighting to save energy. With high lumen output and strong ingress protection, it lowers total cost of ownership by reducing lamp replacement, improving safety visibility, and decreasing the frequency of disruptive maintenance in hazardous-area sites.
