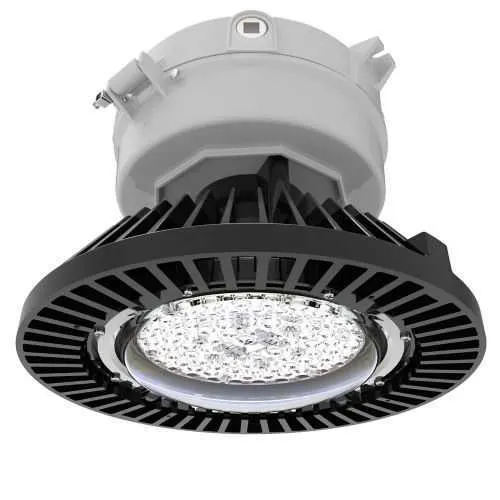

Eaton Crouse-Hinds VMVL-25-N-UNV1-M2 LED Light Fixture - IP66

Part Number: VMVL-25-N-UNV1-M2
VMVL-25-N-UNV1-M2
Manufacturer
Eaton Crouse-Hinds
Part number
VMVL-25-N-UNV1-M2
Category

Quick Summary

VMVL-25-N-UNV1-M2 LED light fixture delivers high-lumen illumination for hazardous-location environments. In industrial facilities where downtime is costly and maintenance in ATEX zones is challenging, reliable enclosure, and seals matter as much as light output. It carries NEC/CEC and IECEx/ATEX certifications, Zone 21 hazardous location rating, IP66 ingress protection, and a NEMA 4X enclosure, ensuring performance in harsh conditions. Designed for safe, efficient lighting in hazardous areas, this luminaire combines 212W consumption with 25000 lumens and a dimmable driver, delivering energy savings and easy integration with 120-277 Vac or 108-250 Vdc power systems in typical factory, refinery, or chemical processing environments for improved uptime and reliability.

Product Information

Extended Description

VMVL-25-N-UNV1-M2 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Champ VMVL LED fixture, Neutral white, 750W-1000W HID equiv, No guard, Heat and impact resistant glass lens, 25000 lumens, 121 lm/W, Die cast aluminum, No mounting module, Type V, 120-277 Vac, 108-250 Vdc, 212W
Product Name
Eaton Crouse-Hinds series Champ VMVL LED light fixture
Catalog Number
VMVL-25-N-UNV1-M2
UPC
662276976351
Product Length/Depth
14.17 in
Product Height
9.53 in
Product Width
14.17 in
Product Weight
22.3 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC IEC IECEx/ATEX
NEC hazardous rating
Class I, Division 2 Class I, Zone 2 Class II, Division 1 Class III
IECEx/ATEX hazardous rating
Zone 21
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lumens
25000
Lumens per watt
121
Color temperature
Neutral white
Mounting Method
No mounting module
Optical distribution
Type V
Guard type
No guard
Voltage rating
120-277 Vac, 108-250 Vdc
Frequency rating
50/60 Hz
Wattage
212W
Dimming
Dimmable driver
Power factor
> 0.90
Equivalent luminaire
750W-1000W HID
Material
Die cast aluminum
Lens material
Heat and impact resistant glass
SP3D Design Package - Champ VMVL LED Hazardous Area Light Fixtures Crouse-Hinds series Champ VMVL LED Luminaires - 17,000 to 25,000 lumens brochure Crouse-Hinds series Champ VMVL LED Luminaires - 17,000 to 25,000 lumens brochure Crouse-Hinds series Champ VMVL LED Luminaires - 17,000 to 25,000 lumens brochure Crouse-Hinds series Champ VMVL LED Luminaires - 17,000 to 25,000 lumens catalog pages IF 1888 - Champ VMVL and PVML Driver Replacement IF 1888 - Champ VMVL and PVML Driver Replacement IF 1888 - Champ VMVL and PVML Driver Replacement Eaton Specification Sheet - VMVL-25-N-UNV1-M2 Eaton Specification Sheet - VMVL-25-N-UNV1-M2 Eaton Specification Sheet - VMVL-25-N-UNV1-M2
High-lumen output with efficient performance drives down the total number of fixtures required in large spaces, reducing installation time and ongoing maintenance costs. The VMVL-25-N-UNV1-M2 delivers 25000 lumens at 121 lumens per watt, enabling brighter work areas and safer operations while consuming only 212W, which translates to tangible energy savings over the life of the luminaire. The rugged die-cast aluminum housing paired with heat and impact resistant glass lens provides dependable protection in demanding environments, supporting long service life and reduced replacement intervals. Type V optical distribution ensures uniform illumination across wide areas, ideal for warehouse aisles and production floors. The dimmable driver and wide voltage range—120-277 Vac and 108-250 Vdc at 50/60 Hz—offer flexible integration with existing power systems and controls, improving system reliability and efficiency. With IP66 and NEMA 4X protection, and hazardous area certifications, this luminaire meets stringent compliance needs while simplifying procurement and installation for facilities in chemical processing, oil & gas, and other hazardous locations.

Get a Quick Quote for a Eaton Crouse-Hinds VMVL-25-N-UNV1-M2

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton Crouse-Hinds VMVL-25-N-UNV1-M2? Enquire Now

FAQs

Installers should plan for the unit's guardless, mounting-free design and ensure compatible mounting provisions with Type V distribution. Verify Zone 21/Class I/II/III compliance, IP66/NEMA 4X protection, and proper wiring within 50/60 Hz systems rated 120-277 Vac or 108-250 Vdc. Use suitable wiring methods and maintain clearances per site safety guidelines.
Yes. The luminaire supports a broad input range of 120-277 Vac and 108-250 Vdc, with a dimmable driver and a power factor greater than 0.90, enabling flexible integration with common industrial power architectures.
The VMVL-25-N-UNV1-M2 delivers 25000 lumens at 121 lm/W, with neutral white light, Type V optical distribution, and a 212W consumption. It is rated IP66, NEMA 4X, and certified for Zone 21/Class I hazardous environments, ensuring reliable operation in challenging facilities.
It carries NEC/CEC and IECEx/ATEX certifications, Zone 21 hazardous location rating, and IP66 with NEMA 4X protection, making it suitable for Hazardous/Classified Locations across chemical plants, refineries, and similar facilities.
With 25000 lumens and a long-life, dimmable LED driver, the fixture reduces fixture counts and maintenance cycles while improving safety and compliance. Energy efficiency (121 lm/W) lowers operating costs, and robust protection minimizes downtime in harsh environments.
