Eaton Crouse-Hinds VMVL-25-N-UNV34-M2 LED light - Hazardous IP66

Part Number: VMVL-25-N-UNV34-M2
VMVL-25-N-UNV34-M2
Manufacturer
Eaton Crouse-Hinds
Part number
VMVL-25-N-UNV34-M2
Category

Quick Summary

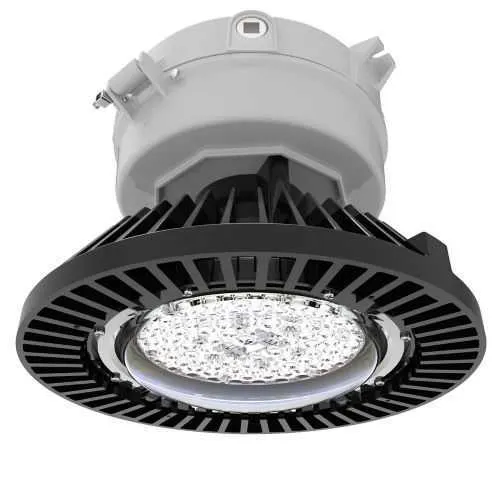

Eaton Crouse-Hinds VMVL LED light fixture provides high-output illumination for hazardous locations and demanding industrial spaces. Engineers often wrestle with downtime, corrosion, and failing lighting in Class I Division 2 and Zone 2 environments, leading to safety and productivity penalties. This luminaire carries NEC/CEC IECEx/ATEX certifications, IP66 ingress protection, and a NEMA 4X-rated housing to safeguard critical assets. Designed for 347–480 VAC operation with a dimmable driver, it delivers reliable performance, energy efficiency, and long-life savings across demanding industrial plants.

Product Information

Extended Description

VMVL-25-N-UNV34-M2 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Champ VMVL LED fixture, Neutral white, 750W-1000W HID equivalent, No guard, Heat and impact resistant glass lens, 25000 lumens, 121 lm/W, Die cast aluminum, No mounting module, Type V, 347-480 Vac, 200W
Product Name
Eaton Crouse-Hinds series Champ VMVL LED light fixture
Catalog Number
VMVL-25-N-UNV34-M2
UPC
662276976368
Product Length/Depth
14.17 in
Product Height
9.53 in
Product Width
14.17 in
Product Weight
22.3 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC IEC IECEx/ATEX
NEC hazardous rating
Class I, Division 2 Class I, Zone 2 Class II, Division 1 Class III
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lumens
25000
Lumens per watt
121
Color temperature
Neutral white
Mounting Method
No mounting module
Optical distribution
Type V
Guard type
No guard
Voltage rating
347-480 Vac
Frequency rating
50/60 Hz
Wattage
200W
Dimming
Dimmable driver
Power factor
> 0.90
Equivalent luminaire
750W-1000W HID
Material
Die cast aluminum
Lens material
Heat and impact resistant glass
SP3D Design Package - Champ VMVL LED Hazardous Area Light Fixtures Crouse-Hinds series Global LED lighting portfolio Crouse-Hinds series Global LED lighting portfolio Crouse-Hinds series Global LED lighting portfolio Crouse-Hinds series Champ VMVL LED Luminaires - 17,000 to 25,000 lumens catalog pages IF 1912 - Champ VMVL and PVML high lumen LED luminaires IF 1912 - Champ VMVL and PVML high lumen LED luminaires IF 1912 - Champ VMVL and PVML high lumen LED luminaires Eaton Specification Sheet - VMVL-25-N-UNV34-M2 Eaton Specification Sheet - VMVL-25-N-UNV34-M2 Eaton Specification Sheet - VMVL-25-N-UNV34-M2
VMVL-25-N-UNV34-M2 is a high-output hazardous-area LED luminaire that delivers 25,000 lumens at 121 lm/W, enabling large-area illumination with fewer fixtures. The rugged die-cast aluminum housing and heat- and impact-resistant glass lens map directly to longer service life in tough environments, reducing maintenance cycles and total cost of ownership. With an IP66 rating and NEMA 4X enclosure, it is built to withstand dust, water, and corrosive atmospheres common in oil, gas, and chemical facilities. The Type V optical distribution ensures uniform coverage for wide production floors, while a dimmable driver supports site-specific lighting control, improving energy efficiency and reducing peak demand. Its 347–480 VAC rating and 50/60 Hz compatibility simplify integration with existing power systems and switchgear.

Get a Quick Quote for a Eaton Crouse-Hinds VMVL-25-N-UNV34-M2

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton Crouse-Hinds VMVL-25-N-UNV34-M2? Enquire Now

FAQs

This luminaire is designed for Hazardous/Classified Locations with IP66 protection and NEMA 4X housing. It uses a dimmable driver, operates on 347–480 VAC, and has a mounting approach described as No mounting module, simplifying retrofit in constrained spaces while meeting NEC/CEC IECEx/ATEX compliance.
Key specs include 200 W wattage, 25,000 lumens, 121 lm/W efficiency, 347–480 VAC, 50/60 Hz, and a power factor greater than 0.90. The dimmable driver supports site-specific control, enabling energy savings and better process visibility in hazardous areas.
Yes. The fixture has NEC/CEC IECEx/ATEX certifications and is listed for Hazardous/Classified Locations, including Class I Division 2 and Zone 2, with IP66 and NEMA 4X protection to ensure safe operation in hazardous zones.
The product complies with NEC/CEC, IECEx/ATEX certifications, and is rated IP66 with a NEMA 4X enclosure. These certifications confirm suitability for hazardous locations and ensure protection against dust, moisture, and corrosive environments typical in industrial facilities.
The VMVL LED fixture delivers 25,000 lumens with a 200 W draw, replacing a 750–1000 W HID equivalent. This yields substantial energy savings, reduced maintenance due to longer LED life, fewer ballast failures, and lower ongoing operating costs in hazardous-area applications.
