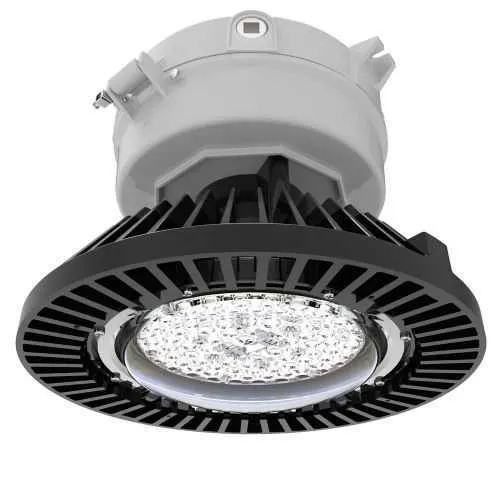

Eaton Crouse-Hinds VMVL-25-R5M-UNV1-M2 LED light - 4X
Part Number: VMVL-25-R5M-UNV1-M2
Manufacturer
Eaton Crouse-Hinds
Part number
VMVL-25-R5M-UNV1-M2
Category
Quick Summary
VMVL-25-R5M-UNV1-M2 is a high-lumen hazardous-area LED light fixture for industrial facilities. Owners and maintenance teams confront costly downtime and non-compliant lighting in hazardous zones; this luminaire is designed to address those challenges with reliable, dimmable performance. Certified for NEC/CEC, IECEx/ATEX hazardous locations, IP66 ingress protection, and a NEMA 4X enclosure, it delivers global compliance and rugged reliability. With 25000 lumens at 124 lm/W and a 204W driver, it combines brightness, efficiency, and long life to support safer, more productive operations. Designed for industrial automation environments, the VMVL aligns with energy-management goals while ensuring safe operation in classified areas.
Product Information
Extended Description
VMVL-25-R5M-UNV1-M2 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Champ VMVL LED fixture, Cool white, Dimmable, No guard, Heat and impact resistant glass lens, 25000 lm, 124 lm/W, Die cast aluminum, No mounting module, Medium optics, 120-277 Vac, 108-250 Vdc, 204W
Product Name
Eaton Crouse-Hinds series Champ VMVL LED light fixture
Catalog Number
VMVL-25-R5M-UNV1-M2
UPC
662277142212
Product Length/Depth
14.17 in
Product Height
9.53 in
Product Width
14.17 in
Product Weight
22.3 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC IEC IECEx/ATEX
NEC hazardous rating
Class I, Division 2 Class I, Zone 2 Class II, Division 1 Class III
IECEx/ATEX hazardous rating
Zone 21
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lumens
25000
Lumens per watt
124
Color temperature
Cool white
Mounting Method
No mounting module
Optical distribution
Medium
Guard type
No guard
Voltage rating
120-277 Vac, 108-250 Vdc
Frequency rating
50/60 Hz
Wattage
204W
Dimming
Dimmable driver
Power factor
0.9
Material
Die cast aluminum
Lens material
Heat and impact resistant glass
SP3D Design Package - Champ VMVL LED Hazardous Area Light Fixtures
Crouse-Hinds series Champ VMVL LED Luminaires - 17,000 to 25,000 lumens brochure
Crouse-Hinds series Champ VMVL LED Luminaires - 17,000 to 25,000 lumens catalog pages
Champ VMVL LED Hazardous Area Light Fixtures UL certification (Marine)
Champ VMVL LED Hazardous Area Light Fixtures UL certification (Marine)
Champ VMVL LED Hazardous Area Light Fixtures UL certification (Marine)
Champ VMVL LED Hazardous Area Light Fixtures UL certification (Marine)
Champ VMVL LED Hazardous Area Light Fixtures UL certification (Marine)
IF 1965 - Champ VMVL and PVML High Lumen LED Luminaires
Crouse-Hinds series Champ VMVL LED High Lumen IES photometric files
Crouse-Hinds series Champ VMVL LED High Lumen IES photometric files
Feature: The VMVL delivers 25000 lumens at 124 lumens per watt with a 204W input. Business impact: This combination provides bright, uniform illumination in expansive areas while reducing energy consumption and cooling loads. Application: Ideal for large industrial spaces such as tanks, processing lines, and outdoor hazardous locations where visibility matters. Feature: Dimmable driver with a broad voltage range of 120-277 Vac and 108-250 Vdc. Business impact: Enables flexible control integration with existing automation systems, reducing energy use and improving process lighting consistency. Application: Power environments with varied supply and dimming requirements in warehouses and processing plants. Feature: Rugged die-cast aluminum housing, heat and impact resistant glass lens, IP66 protection, and NEMA 4X enclosure. Business impact: Delivers dependable operation in harsh chemical, dust, and moisture conditions, lowering maintenance costs and downtime. Application: Chemical plants, offshore platforms, mining sites, and other hazardous zones. Feature: No mounting module; medium optics; compact footprint and weight of 22.3 lb. Business impact: Streamlines installation and enables quick retrofits with standard mounting hardware. Application: Retrofit projects and new builds across automated facilities. Feature: Comprehensive certifications and documentation package including NEC/CEC, IECEx/ATEX, UL certification references, installation sheets, and IES photometrics. Business impact: Improves compliance validation, commissioning speed, and procurement confidence. Application: Engineering validation, safety audits, and supplier documentation reviews.
Get a Quick Quote for a Eaton Crouse-Hinds VMVL-25-R5M-UNV1-M2
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds VMVL-25-R5M-UNV1-M2?
Enquire Now
FAQs
The VMVL fixture ships without a mounting module, so you can attach it with standard industrial mounting hardware suitable for Class I Div 2 Zone 2 environments. Ensure mounting provisions accommodate a 14.17 inch length and 22.3 pound weight for secure, code-compliant installation in hazardous areas.
Operating across 120-277 Vac and 108-250 Vdc with a 50/60 Hz frequency, the luminaire features a dimmable driver and a power factor around 0.9, enabling integration with control systems while maintaining consistent illumination and energy savings.
Yes. It carries NEC/CEC and IECEx/ATEX hazardous-location ratings, IP66 ingress protection, and a NEMA 4X enclosure, making it suitable for Zone 21 and Division 2 environments. Documentation and certification references are available in the product downloads for compliance teams.
The fixture provides 25000 lumens at 124 lm/W with a 204W input. This high efficacy reduces energy consumption per area, lowers cooling load, and supports longer maintenance intervals in large industrial spaces while delivering bright, consistent illumination.
Downloadable resources include IF 1965 installation sheets, 3D models, IES photometrics, and certification documents. Access these from the product downloads section to support design validation, safety approvals, and rapid commissioning on site.
