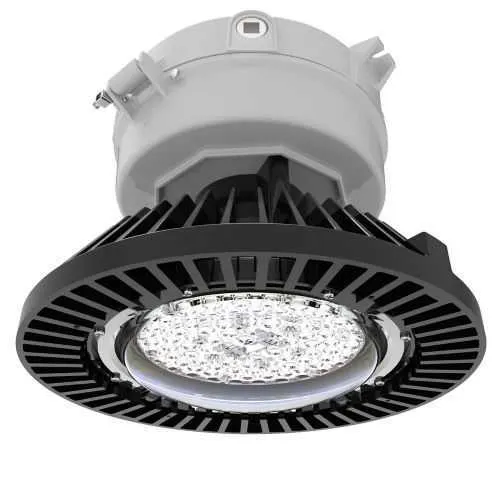

Eaton Crouse-Hinds VMVL-25-R5N-G-UNV1-M2 LED Light Fixture - IP66

Part Number: VMVL-25-R5N-G-UNV1-M2
VMVL-25-R5N-G-UNV1-M2
Manufacturer
Eaton Crouse-Hinds
Part number
VMVL-25-R5N-G-UNV1-M2
Category

Quick Summary

VMVL LED light fixture from Eaton Crouse-Hinds delivers high-output illumination for hazardous-area facilities. In demanding environments, reliability and safety are a persistent challenge, and inferior lighting can compromise process safety and maintenance schedules. This luminaire aligns NEC/CEC IECEx/ATEX classifications with Zone 21, IP66, and NEMA 4X to provide robust, regulatory-compliant performance. Its dimmable driver, cool white output, and narrow optics support efficient operations, reduced energy costs, and predictable maintenance cycles. For engineers and procurement teams, VMVL combines strong certification coverage with rugged construction, delivering cost-effective, long-term illumination for petrochemical plants, offshore facilities, and mining sites.

Product Information

Extended Description

VMVL-25-R5N-G-UNV1-M2 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Champ VMVL LED fixture, Cool white, Dimmable, Wire guard, Heat and impact resistant glass lens, 25000 lm, 124 lm/W, Die cast aluminum, No mounting module, Narrow optics, 120-277 Vac, 108-250 Vdc, 204W
Product Name
Eaton Crouse-Hinds series Champ VMVL LED light fixture
Catalog Number
VMVL-25-R5N-G-UNV1-M2
UPC
662277142243
Product Length/Depth
14.17 in
Product Height
11.59 in
Product Width
14.17 in
Product Weight
22.45 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC IEC IECEx/ATEX
NEC hazardous rating
Class I, Division 2 Class I, Zone 2 Class II, Division 1 Class III
IECEx/ATEX hazardous rating
Zone 21
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lumens
25000
Lumens per watt
124
Color temperature
Cool white
Mounting Method
No mounting module
Optical distribution
Narrow
Guard type
Wire
Voltage rating
120-277 Vac, 108-250 Vdc
Frequency rating
50/60 Hz
Wattage
204W
Dimming
Dimmable driver
Power factor
0.9
Material
Die cast aluminum
Lens material
Heat and impact resistant glass
SP3D Design Package - Champ VMVL LED Hazardous Area Light Fixtures Crouse-Hinds series Champ VMVL LED Luminaires - 17,000 to 25,000 lumens brochure Crouse-Hinds series Champ VMVL LED Luminaires - 17,000 to 25,000 lumens catalog pages Champ VMVL LED Hazardous Area Light Fixtures UL certification (Marine) Champ VMVL LED Hazardous Area Light Fixtures UL certification (Marine) Champ VMVL LED Hazardous Area Light Fixtures UL certification (Marine) Champ VMVL LED Hazardous Area Light Fixtures UL certification (Marine) Champ VMVL LED Hazardous Area Light Fixtures UL certification (Marine) IF 1965 - Champ VMVL and PVML High Lumen LED Luminaires Crouse-Hinds series Champ VMVL LED High Lumen IES photometric files Crouse-Hinds series Champ VMVL LED High Lumen IES photometric files
The VMVL-25-R5N-G-UNV1-M2 LED light fixture delivers high lumen output with excellent efficiency, translating to lower energy consumption per lumen and fewer luminaires needed for the same illumination levels. This translates to tangible operating cost reductions and improved lighting uniformity in hazardous areas. Die-cast aluminum housing paired with a heat and impact resistant glass lens ensures durability in extreme environments, supporting longer service life and reduced spare-part inventory. The IP66 and NEMA 4X ratings, along with NEC/CEC IECEx/ATEX compliance and Zone 21 capability, simplify regulatory approvals and enable installation in Class I, Division 2 and Zone 2 locations without compromising safety. Narrow optical distribution minimizes glare and optimizes beam control, helping facilities meet strict workplace light and safety standards. A dimmable driver provides flexibility to adapt lighting levels to changing processes, reducing energy waste and extending luminaire life. The absence of a mounting module in the package streamlines integration with existing support structures while allowing compatible mounting accessories to be selected as needed. Overall, this luminaire supports reliable, maintenance-friendly lighting that satisfies industry demands for hazardous-location illumination and lifecycle cost efficiency.

Get a Quick Quote for a Eaton Crouse-Hinds VMVL-25-R5N-G-UNV1-M2

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton Crouse-Hinds VMVL-25-R5N-G-UNV1-M2? Enquire Now

FAQs

VMVL-25-R5N-G-UNV1-M2 is designed for hazardous locations with NEC/CEC and IECEx/ATEX conformity (Zone 21) and IP66/NEMA 4X protection. It ships without a mounting module, allowing you to pair it with your existing brackets or supports and install compliant hardware per installation instructions IF 1965, ensuring secure, code-compliant mounting.
The luminaire operates at 120-277 Vac and 108-250 Vdc, 50/60 Hz, drawing 204W with a power factor of 0.9. It provides dimmable performance via a dimmable driver, enabling daylighting and scene control while preserving energy efficiency and long-term LED life.
Yes. With Zone 21 and Class I, Division 2 capability, IP66 ingress protection, and NEMA 4X sealing, the VMVL-25-R5N-G-UNV1-M2 is well-suited for petrochemical, oil & gas, offshore platforms, mining, and other harsh-industrial environments requiring reliable hazardous-location lighting.
It meets NEC/CEC IECEx/ATEX standards, supports Zone 21, carries NEMA 4X and IP66 ratings, and includes UL certification resources. This combination simplifies regulatory approvals, purchase decisions, and certification documentation for global installations.
With 25000 lumens at 124 lm/W, a dimmable driver, and rugged construction, the VMVL delivers long service life and reduced maintenance intervals. Its high reliability reduces downtime in hazardous areas, while energy efficiency lowers operating costs, supporting a favorable total cost of ownership over the luminaire's lifespan.
