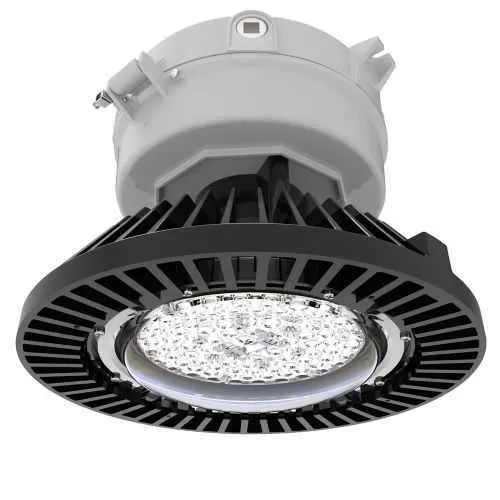

Eaton VMVL-25-UNV1-S903-M2 LED Light - IP66 Hazardous
Part Number: VMVL-25-UNV1-S903-M2
Manufacturer
Eaton Crouse-Hinds
Part number
VMVL-25-UNV1-S903-M2
Category
Quick Summary
Eaton VMVL-25-UNV1-S903-M2 LED light fixture provides high-output illumination for hazardous-area industrial facilities. In demanding environments, downtime and maintenance planning can hamper production; this luminaire delivers reliable, long-life performance that resists dust, moisture, and vibration. It carries NEC/CEC and IECEx/ATEX certifications for hazardous locations, including Zone 21, along with IP66 and NEMA 4X protection, ensuring safe operation in Class I, II, and III areas. Designed for energy efficiency and easy retrofit, the VMVL supports dimmable drivers and a 25,000-lumen output at 212 watts, delivering substantial operating cost savings while maintaining consistent light quality across harsh applications. For engineers upgrading facilities, this fixture combines rugged build, predictable performance, and straightforward integration with existing VMVL families.
Product Information
Extended Description
VMVL-25-UNV1-S903-M2 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Champ VMVL LED fixture, Cool white, 750W-1000W HID equivalent, No guard, Polycarbonate lens, 25000 lumens, 121 lm/W, Die cast aluminum, No mounting module, Type V, 120-277 Vac, 108-250 Vdc, 212W
Product Name
Eaton Crouse-Hinds series Champ VMVL LED light fixture
Catalog Number
VMVL-25-UNV1-S903-M2
UPC
662276988064
Product Length/Depth
14.17 in
Product Height
9.53 in
Product Width
14.17 in
Product Weight
22.3 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC IEC IECEx/ATEX
NEC hazardous rating
Class I, Division 2 Class I, Zone 2 Class II, Division 1 Class III
IECEx/ATEX hazardous rating
Zone 21
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lumens
25000
Lumens per watt
121
Color temperature
Cool white
Mounting Method
No mounting module
Optical distribution
Type V
Guard type
No guard
Voltage rating
120-277 Vac, 108-250 Vdc
Frequency rating
50/60 Hz
Wattage
212W
Dimming
Dimmable driver
Power factor
> 0.90
Equivalent luminaire
750W-1000W HID
Material
Die cast aluminum
Lens material
Polycarbonate
SP3D Design Package - Champ VMVL LED Hazardous Area Light Fixtures
Crouse-Hinds series DLC approved lighting products
Crouse-Hinds series DLC approved lighting products
Crouse-Hinds series DLC approved lighting products
Crouse-Hinds series Champ VMVL LED Luminaires - 17,000 to 25,000 lumens catalog pages
IF 1912 - Champ VMVL and PVML high lumen LED luminaires
IF 1912 - Champ VMVL and PVML high lumen LED luminaires
IF 1912 - Champ VMVL and PVML high lumen LED luminaires
Champ VMV LED High Lumen Hazardous Area
Champ VMV LED High Lumen Hazardous Area
Champ VMV LED High Lumen Hazardous Area
High-lumen efficiency drives lower total cost of ownership while preserving visibility in critical processes. Feature: 25,000 lumens at 121 lm/W with a 212W driver; Business Impact: reduces energy consumption per area while improving illumination uniformity; Application: large industrial spaces and outdoor yards in hazardous zones. Feature: Type V optical distribution with a polycarbonate lens and die-cast aluminum housing; Business Impact: durable, corrosion-resistant construction complemented by wide, glare-free coverage; Application: harsh environments and edge-of-yard lighting. Feature: Wide voltage range 120-277 VAC with a dimmable driver and PF > 0.90; Business Impact: simplifies electrical design and enables precise light control for energy savings; Application: plant mains upgrades and retrofit projects. Feature: IP66, NEMA 4X protection with Zone 21/Class I, II, III ratings; Business Impact: reliable operation in wet, dusty, and explosive environments; Application: chemical plants, refineries, offshore facilities. Feature: No mounting module requirement and compatibility with the Champ VMVL family; Business Impact: faster installation and lower maintenance; Application: end-to-end project commissioning and serviceability. Features address common objections about ruggedness, maintenance cycles, and lifecycle costs, while aligning with industry standards and retrofit strategies for hazardous-location LED lighting.
Get a Quick Quote for a Eaton Crouse-Hinds VMVL-25-UNV1-S903-M2
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds VMVL-25-UNV1-S903-M2?
Enquire Now
FAQs
VMVL-25-UNV1-S903-M2 is designed for hazardous areas with Zone 21/Class I, II, III ratings, IP66/NEMA 4X protection, and IECEx/ATEX certification. Its robust die-cast aluminum housing and polycarbonate lens resist dust, moisture, and impact, ensuring reliable operation in challenging industrial environments.
Yes, the VMVL-25-UNV1-S903-M2 uses a dimmable driver and supports a wide input range of 120-277 VAC with PF > 0.90. This enables precise lighting control, reduced energy use, and better alignment with automated systems in production zones.
The VMVL series features no mounting module for installation, simplifying mounting on standard supports. It is compatible with the Champ VMVL LED family, allowing straightforward upgrades from legacy HID or older VMVL luminaires while preserving optical performance and reliability in hazardous locations.
This luminaire complies with NEC/CEC, IECEx/ATEX, Zone 21, and IP66/NEMA 4X standards. It is rated for hazardous/classified locations, making it suitable for Class I and II environments, ensuring regulatory compliance and safer operation in potentially explosive atmospheres.
With 25,000 lumens and 121 lm/W efficiency, the VMVL-25-UNV1-S903-M2 delivers significant energy savings and longer replacement intervals compared to HID equivalents. The rugged housing and protective lens reduce maintenance frequency in harsh zones, contributing to lower lifecycle costs and improved plant uptime.
