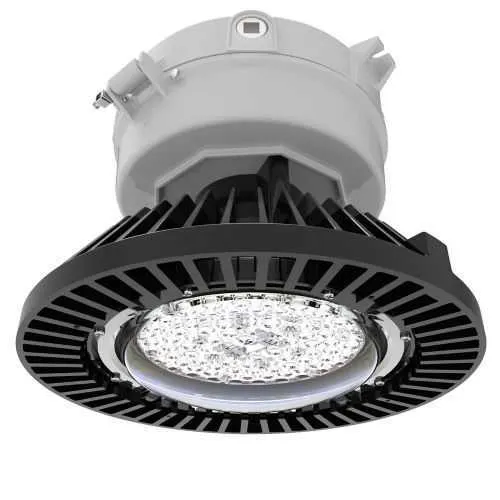

Eaton Crouse-Hinds VMVL-25-UNV34-M2 LED Light Fixture - IP66
Part Number: VMVL-25-UNV34-M2
Quick Summary
VMVL LED light fixture provides high-output illumination for hazardous-location industrial facilities. Designed for rough environments, it helps engineers overcome premature lumen loss, frequent replacements, and lighting gaps in critical processes. This luminaire carries NEC/CEC IECEx/ATEX approvals along with IP66 ingress protection and NEMA 4X ruggedness, ensuring safety and reliability in harsh environments. Backed by a dimmable driver, 200W input, and 25,000 lumens at 121 lm/W, it supports energy-efficient upgrades without compromising performance. With 347–480 VAC operation and Type V optical distribution, it integrates smoothly into existing electrical systems.
Product Information
Extended Description
VMVL-25-UNV34-M2 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Champ VMVL LED fixture, Cool white, 750W-1000W HID equivalent, No guard, Heat and impact resistant glass lens, 25000 lumens, 121 lm/W, Die cast aluminum, No mounting module, Type V, 347-480 Vac, 200W
Product Name
Eaton Crouse-Hinds series Champ VMVL LED light fixture
Catalog Number
VMVL-25-UNV34-M2
UPC
662276975590
Product Length/Depth
14.17 in
Product Height
9.53 in
Product Width
14.17 in
Product Weight
22.3 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC IEC IECEx/ATEX
NEC hazardous rating
Class I, Division 2 Class I, Zone 2 Class II, Division 1 Class III
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lumens
25000
Lumens per watt
121
Color temperature
Cool white
Mounting Method
No mounting module
Optical distribution
Type V
Guard type
No guard
Voltage rating
347-480 Vac
Frequency rating
50/60 Hz
Wattage
200W
Dimming
Dimmable driver
Power factor
> 0.90
Equivalent luminaire
750W-1000W HID
Material
Die cast aluminum
Lens material
Heat and impact resistant glass
SP3D Design Package - Champ VMVL LED Hazardous Area Light Fixtures
Crouse-Hinds series Champ VMVL LED Luminaires - 17,000 to 25,000 lumens brochure
Crouse-Hinds series Champ VMVL LED Luminaires - 17,000 to 25,000 lumens brochure
Crouse-Hinds series Champ VMVL LED Luminaires - 17,000 to 25,000 lumens brochure
Crouse-Hinds series Champ VMVL LED Luminaires - 17,000 to 25,000 lumens catalog pages
IF 1882 - Champ VMVL and PVML LED luminaires
IF 1882 - Champ VMVL and PVML LED luminaires
IF 1882 - Champ VMVL and PVML LED luminaires
Crouse-Hinds series Champ VMVL LED High Lumen IES photometric files
Crouse-Hinds series Champ VMVL LED High Lumen IES photometric files
Crouse-Hinds series Champ VMVL LED High Lumen IES photometric files
Feature: Dimmable driver with 347–480 VAC and 50/60 Hz support. Business impact: Enables precise lighting control, reduces energy use, and extends fixture life by avoiding over-illumination. Application: Suitable for manufacturing floors and hazardous zones that require adjustable lighting tied to operation cycles. Feature: 25,000-lumen output with 121 lm/W efficiency in a 200W package. Business impact: Reduces the number of fixtures needed and lowers maintenance frequency, improving total cost of ownership. Application: Large-volume spaces such as warehouses, assembly lines, and processing areas. Feature: IP66 ingress protection and NEMA 4X rugged construction. Business impact: Withstands dust, water jets, and corrosive environments, cutting downtime and cleaning costs. Application: Washdown areas, chemical plants, and outdoor installations. Feature: Die-cast aluminum housing with a heat- and impact-resistant glass lens. Business impact: Delivers rugged durability against vibration and temperature swings, preserving optical performance. Application: Environments with heavy vibration, offshore platforms, or mining operations. Feature: NEC/CEC IECEx/ATEX certifications and hazard classifications (Class I, Division 2; Zone 2; Class II, Division 1; Class III). Business impact: Eases regulatory approvals and accelerates procurement, reducing project risk. Application: Hazardous/Classified Locations across oil and gas, chemical, and mining sectors.
Get a Quick Quote for a Eaton Crouse-Hinds VMVL-25-UNV34-M2
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds VMVL-25-UNV34-M2?
Enquire Now
FAQs
The VMVL-25-UNV34-M2 specifies 'Mounting Method: No mounting module,' meaning it is designed to pair with standard mounting components or a separate mounting kit recommended in the IF 1882 installation sheets. For compliant, vibration-resistant installs, choose an approved mounting accessory that suits hazardous-location environments and your fixture orientation requirements.
Yes. The unit is rated for hazardous locations with Class I, Division 2 and Zone 2 approvals, along with NEC/CEC IECEx/ATEX compliance. It also features IP66 and NEMA 4X protection, providing reliable operation in washdown and corrosive environments typical of chemical plants and refineries.
The luminaire delivers 25,000 lumens with an efficiency of 121 lumens per watt at a 200W input. This equivalent HID replacement capability (750W-1000W HID) supports high-light-output requirements while reducing energy consumption and maintenance needs in large-scale spaces.
The fixture operates from 347–480 VAC and supports 50/60 Hz with a dimmable driver. This enables integration with industrial control systems and enables energy-saving dimming strategies without compromising performance in hazardous locations.
It complies with NEC/CEC IECEx/ATEX, and is rated for Class I, Division 2 (Zone 2) and Class II, Division 1, plus a Class III designation. IP66 protection and NEMA 4X construction support robust performance in washdown and outdoor environments, reducing regulatory risk in hazardous-location projects.
