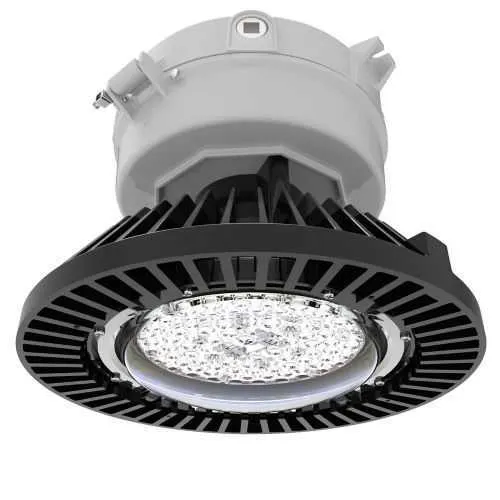

Eaton Crouse-Hinds VMVL-25-W-UNV1-M2 LED Fixture - IP66
Part Number: VMVL-25-W-UNV1-M2
Quick Summary
VMVL LED light fixture from Eaton Crouse-Hinds delivers high-output illumination for hazardous-location industrial facilities. Engineers frequently wrestle with luminaires that survive demanding environments, deliver consistent brightness, and integrate easily with control systems. This model carries NEC/CEC IECEx/ATEX Zone 21, IP66 and NEMA 4X certifications, enabling safe operation across Class I Division 2 and Zone 2 locations. Beyond compliance, its energy efficiency and dimmable driver support lower operating costs and simplify lifecycle management for industrial facilities that demand reliable hazardous-location lighting.
Product Information
Extended Description
VMVL-25-W-UNV1-M2 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Champ VMVL LED fixture, Warm white, 750W-1000W HID equivalent, No guard, Heat and impact resistant glass lens, 25000 lumens, 121 lm/W, Die cast aluminum, No mounting module, Type V, 120-277 Vac, 108-250 Vdc, 212W
Product Name
Eaton Crouse-Hinds series Champ VMVL LED light fixture
Catalog Number
VMVL-25-W-UNV1-M2
UPC
662276976412
Product Length/Depth
14.17 in
Product Height
9.53 in
Product Width
14.17 in
Product Weight
22.3 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC IEC IECEx/ATEX
NEC hazardous rating
Class I, Division 2 Class I, Zone 2 Class II, Division 1 Class III
IECEx/ATEX hazardous rating
Zone 21
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lumens
25000
Lumens per watt
121
Color temperature
Warm white
Mounting Method
No mounting module
Optical distribution
Type V
Guard type
No guard
Voltage rating
120-277 Vac, 108-250 Vdc
Frequency rating
50/60 Hz
Wattage
212W
Dimming
Dimmable driver
Power factor
> 0.90
Equivalent luminaire
750W-1000W HID
Material
Die cast aluminum
Lens material
Heat and impact resistant glass
SP3D Design Package - Champ VMVL LED Hazardous Area Light Fixtures
Crouse-Hinds series Champ VMVL LED Luminaires - 17,000 to 25,000 lumens brochure
Crouse-Hinds series Champ VMVL LED Luminaires - 17,000 to 25,000 lumens brochure
Crouse-Hinds series Champ VMVL LED Luminaires - 17,000 to 25,000 lumens brochure
Crouse-Hinds series Champ VMVL LED Luminaires - 17,000 to 25,000 lumens catalog pages
IF 1912 - Champ VMVL and PVML high lumen LED luminaires
IF 1912 - Champ VMVL and PVML high lumen LED luminaires
IF 1912 - Champ VMVL and PVML high lumen LED luminaires
Champ VMV LED High Lumen Hazardous Area
Champ VMV LED High Lumen Hazardous Area
Champ VMV LED High Lumen Hazardous Area
High lumen performance with robust efficiency. The VMVL delivers 25000 lumens at 121 lm/W (212W), reducing the number of fixtures needed for large workspaces and lowering energy spend per lumen while maintaining excellent illumination uniformity in harsh environments. This translates to faster task completion and improved safety in demanding facilities. Durable housing and optics. Die-cast aluminum construction, heat- and impact-resistant glass, and an IP66 rating with NEMA 4X protection protect against moisture, dust, and corrosive atmospheres, cutting maintenance cycles and ensuring long service life in oil and gas, chemical, and mining sites. Pure hazardous-location compliance. NEC/CEC and IECEx/ATEX Zone 21 certifications, plus clear hazardous-area classifications (Class I Division 2, Zone 2), mean immediate regulatory alignment and simplified procurement for regulated projects. Dimming and voltage flexibility. A dimmable driver supports 120-277 Vac and 108-250 Vdc across 50/60 Hz, enabling seamless integration with building and process controls while optimizing energy use and maintaining consistent light levels in dynamic operations. Installation and configuration advantages. No mounting module requirement simplifies installation in Type V distribution patterns and crowded electrical closets, reducing labor time and intrusive wiring work while ensuring precise optical distribution for Hazardous/Classified locations.
Get a Quick Quote for a Eaton Crouse-Hinds VMVL-25-W-UNV1-M2
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds VMVL-25-W-UNV1-M2?
Enquire Now
FAQs
Plan for a Type V optical layout with no mounting module required, which simplifies mounting in tight or cluttered Hazardous/Classified locations. Ensure power is within the 120-277 Vac or 108-250 Vdc range and account for the 50/60 Hz frequency. The IP66/NEMA 4X enclosure offers robust protection, but verify mechanical clearance and access for maintenance in your installation space.
The fixture delivers 25,000 lumens with an efficiency of 121 lumens per watt, consuming about 212W. This combination provides high-coverage illumination with lower energy per delivered lumen, reducing the number of fixtures and associated energy costs in large hazardous-area spaces.
Yes. The unit is certified for NEC/CEC and IECEx/ATEX, with Zone 21 and Class I Division 2 ratings, plus Zone 2 compatibility. The NEMA 4X and IP66 protection further ensure suitability for hazardous locations, moisture, and particulate exposure typical of chemical processing and oil/gas facilities.
It carries NEC/CEC IECEx/ATEX certifications, Zone 21 suitability, and hazardous-location ratings (Class I Division 2, Zone 2, Class II Division 1, Class III). The housing is IP66 and NEMA 4X rated, with a Type V optical distribution and heat-resistant glass lens to withstand demanding industrial environments.
You can expect reduced maintenance intervals due to robust die-cast aluminum housing and a durable lens, along with energy savings from high lumen output at 212W versus HID equivalents (750W–1000W). The dimmable driver and wide voltage/power range enable tailored lighting control, contributing to lower operating costs and improved ROI over the system life.
