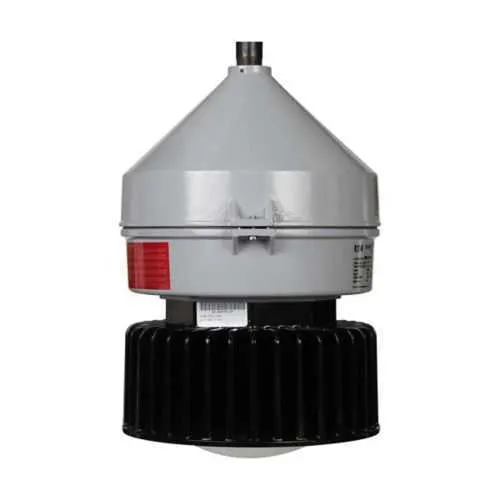

Eaton Crouse-Hinds VMVL-3-2B-UNV1 LED Light Fixture - IP66
Part Number: VMVL-3-2B-UNV1
Quick Summary
VMVL LED light fixture is a rugged solution that delivers reliable illumination for hazardous locations across industrial facilities. Engineers often contend with downtime and fragile lighting in demanding environments, so a durable, maintenance-friendly luminaire is critical. This fixture carries NEC/CEC IECEx/ATEX certifications with Zone 21 applicability, along with IP66 and NEMA 4X protection to ensure performance in corrosive or wet locations. Designed for cone pendant mounting and a universal power range, it supports seamless integration with modern controls. With 3000 lumens at 123 lm/W and a dimmable driver, it reduces energy use while meeting stringent safety and reliability standards for hazardous area lighting.
Product Information
Extended Description
VMVL-3-2B-UNV1 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Champ VMVL LED fixture, Cool white, 70W HID equivalent, No guard, Glass lens, 3000 lumens, 123 lm/W, Die cast aluminum, Cone pendant mount, Type V, 3/4" trade size, 100-277 Vac, 127-250 Vdc, 28W
Product Name
Eaton Crouse-Hinds series Champ VMVL LED light fixture
Catalog Number
VMVL-3-2B-UNV1
UPC
662276880818
Product Length/Depth
11.62 in
Product Height
15.22 in
Product Width
11.62 in
Product Weight
23 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC IEC IECEx/ATEX
NEC hazardous rating
Class I, Division 2 Class I, Zone 2 Class II, Division 1 Class III
IECEx/ATEX hazardous rating
Zone 21
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lumens
3000
Lumens per watt
123
Color temperature
Cool white
Mounting Method
Cone pendant
Trade size
100-240 Vac, 127-250 Vdc
Optical distribution
Type V
Guard type
No guard
Voltage rating
100-277 Vac, 127-250 Vdc
Frequency rating
50/60 Hz
Wattage
28W
Dimming
Dimmable driver
Power factor
> 0.90
Equivalent luminaire
70W HID
Material
Die cast aluminum
Lens material
Heat and impact resistant glass
SP3D Design Package - Champ VMVL LED Hazardous Area Light Fixtures
Crouse-Hinds series Champ VMVL LED Luminaires - 3,000 to 13,000 lumens brochure
Crouse-Hinds series Champ VMVL LED Luminaires - 3,000 to 13,000 lumens brochure
Crouse-Hinds series Champ VMVL LED Luminaires - 3,000 to 13,000 lumens brochure
Crouse-Hinds series Champ VMVL LED luminaires - 3,000 to 13,000 lumens catalog page
IF 1888 - Champ VMVL and PVML Driver Replacement
IF 1888 - Champ VMVL and PVML Driver Replacement
Champ VMV LED Hazardous Area
Champ VMV LED Hazardous Area
Feature: Hazardous-location qualified construction delivers reliable operation in demanding environments → Business Impact: Reduces risk of unplanned outages and regulatory non-compliance → Application: Lighting for chemical plants, refineries, and offshore facilities. Feature: IP66 and NEMA 4X protection along with IECEx/ATEX Zone 21 ratings → Business Impact: Superior ingress protection and certified safety, extending service life in harsh conditions → Application: Outdoor and wet-area installations in Class I, Division 2 or Zone 21 locations. Feature: 28W LED, 3000 lumens, 123 lm/W with cool white color → Business Impact: High-efficiency illumination lowers operating costs and cooling load → Application: General area lighting in plant floors and service corridors. Feature: Dimmable driver with PF > 0.90 → Business Impact: Enables precise lighting control and energy management, reducing waste → Application: Connected lighting schemes and occupancy-based strategies in hazardous areas. Feature: Die-cast aluminum housing with glass lens and Type V distribution → Business Impact: Robust durability and uniform light spread, minimizing maintenance cycles → Application: Durable mounting in industrial ceilings and catwalks. Feature: Wide input range 100-277 VAC / 127-250 VDC with 3/4” trade size and cone pendant mount → Business Impact: Simplified installation and compatibility across systems → Application: Retrofit and new-build projects with varied power architectures.
Get a Quick Quote for a Eaton Crouse-Hinds VMVL-3-2B-UNV1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds VMVL-3-2B-UNV1?
Enquire Now
FAQs
VMVL-3-2B-UNV1 accepts a broad power range of 100-277 VAC and 127-250 VDC, enabling installation across varied electrical systems. The dimmable driver supports integration with standard lighting controls, and a PF greater than 0.90 helps optimize energy use while maintaining consistent brightness in hazardous locations.
This luminaire meets NEC/CEC and IECEx/ATEX standards with Zone 21 rating, plus hazardous-location ratings for Class I Division 2 and Class II Division 1, along with IP66 ingress protection and a NEMA 4X enclosure, ensuring safe operation in demanding industrial environments.
The cone pendant mounting and Type V optical distribution make it ideal for general area lighting in hazardous locations such as chemical plants, oil and gas facilities, refineries, and outdoor installations exposed to dust and moisture. It supports efficient illumination along walkways, stairs, and work environments requiring robust protection.
Plan for a cone pendant mount with 3/4" trade size hardware and ensure power supply compatibility with the 100-277 VAC / 127-250 VDC range. Review mounting clearances for the 11.62 in length and 15.22 in height, and reference IF 1888 driver-replacement instructions during maintenance to minimize downtime.
With 28W consumption and 3000 lumens at 123 lm/W, this luminaire delivers substantial energy savings versus traditional HID equivalents. Its rugged NEMA 4X/IP66 construction reduces maintenance and replacement frequency in harsh environments, contributing to lower operating costs and improved system reliability over the product life.
