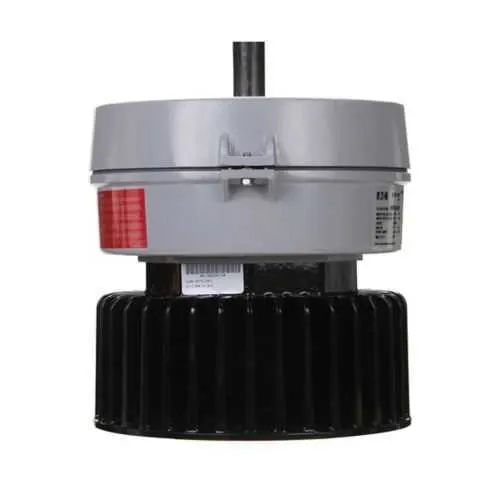

Eaton Crouse-Hinds VMVL-3-2HA-UNV1 LED Light Fixture - IP66
Part Number: VMVL-3-2HA-UNV1
Quick Summary
VMVL LED light fixture provides reliable illumination for hazardous-location industrial facilities. In demanding environments, unreliable lighting leads to downtime and safety risks, so a robust solution is essential. This luminaire carries IECEx/ATEX Zone 21, IP66 and NEMA 4X certifications to perform in harsh chemical, dust, and washdown areas. It supports a broad voltage range of 100-277 Vac or 127-250 Vdc and a dimmable driver for flexible control. By delivering 3000 lumens at 123 lm/W with only 28W of power, it lowers operating costs while maintaining consistent, high-quality light for operators and maintenance teams across global sites.
Product Information
Extended Description
VMVL-3-2HA-UNV1 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Champ VMVL LED fixture, Cool white, 70W HID equivalent, No guard, Glass lens, 3000 lumens, 123 lm/W, Die cast aluminum, Flexible pendant mount, Type V, 3/4" trade size, 100-277 Vac, 127-250 Vdc, 28W
Product Name
Eaton Crouse-Hinds series Champ VMVL LED light fixture
Catalog Number
VMVL-3-2HA-UNV1
UPC
662276881358
Product Length/Depth
11.62 in
Product Height
15.22 in
Product Width
11.62 in
Product Weight
20.5 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC IEC IECEx/ATEX
NEC hazardous rating
Class I, Division 2 Class I, Zone 2 Class II, Division 1 Class III
IECEx/ATEX hazardous rating
Zone 21
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lumens
3000
Lumens per watt
123
Color temperature
Cool white
Mounting Method
Flexible pendant
Trade size
100-240 Vac, 127-250 Vdc
Optical distribution
Type V
Guard type
No guard
Voltage rating
100-277 Vac, 127-250 Vdc
Frequency rating
50/60 Hz
Wattage
28W
Dimming
Dimmable driver
Power factor
> 0.90
Equivalent luminaire
70W HID
Material
Die cast aluminum
Lens material
Heat and impact resistant glass
SP3D Design Package - Champ VMVL LED Hazardous Area Light Fixtures
Crouse-Hinds series Champ VMVL LED Luminaires - 3,000 to 13,000 lumens brochure
Crouse-Hinds series Champ VMVL LED Luminaires - 3,000 to 13,000 lumens brochure
Crouse-Hinds series Champ VMVL LED Luminaires - 3,000 to 13,000 lumens brochure
Crouse-Hinds series Champ VMVL LED luminaires - 3,000 to 13,000 lumens catalog page
IF 1888 - Champ VMVL and PVML Driver Replacement
IF 1888 - Champ VMVL and PVML Driver Replacement
Champ VMV LED Hazardous Area
Champ VMV LED Hazardous Area
High-efficiency LED with 3000 lumens at 28W provides lower energy consumption and cooler operation, reducing cooling loads and maintenance costs in continuous-duty areas. This translates to improved uptime and lower total cost of ownership for hazardous-location lighting in refineries and chemical plants. The IP66 and NEMA 4X-rated enclosure protects against dust, water, and corrosive atmospheres, ensuring reliable performance in offshore platforms and mining sites, which minimizes maintenance intervals and extends luminaire life. The die-cast aluminum housing and heat- and impact-resistant glass lens deliver rugged durability and effective thermal management, supporting long service life in high-vibration environments and withstanding frequent washdowns without performance loss. Flexible pendant mounting and Type V optical distribution optimize installation around existing plant structures, reducing retrofit time and enabling wide mounting tolerances while maintaining uniform illumination and operator safety. A dimmable driver with a wide voltage range simplifies multi-region deployments and control strategy integration, enabling energy savings through stepped lighting and occupancy-based calibration. Compatibility with installation standards (NEC/CEC) and hazardous-location ratings (Class I Division 2, Zone 2; IECEx/ATEX Zone 21) helps ensure regulatory compliance, project acceptance, and reduced risk during audits. The 100-277 Vac / 127-250 Vdc range supports global procurement strategies, reducing stock variety and easing spares management for multinational projects. Overall, VMVL-3-2HA-UNV1 delivers reliable, compliant, and energy-efficient hazardous-area lighting that aligns with **hazardous-location lighting** best practices and supports proactive maintenance programs across industries.
Get a Quick Quote for a Eaton Crouse-Hinds VMVL-3-2HA-UNV1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds VMVL-3-2HA-UNV1?
Enquire Now
FAQs
The VMVL-3-2HA-UNV1 accepts 100-277 Vac and 127-250 Vdc, with a 50/60 Hz frequency rating, and features a dimmable driver. This enables use across regions with differing power grids and supports dimming schemes for energy savings and safer task lighting in hazardous areas.
The luminaire delivers 3000 lumens with an efficiency of 123 lumens per watt, using a 28 W LED system. This provides bright, consistent illumination while minimizing energy consumption and heat generation in challenging environments.
Yes. It is rated for NEC/CEC hazardous locations, including Class I Division 2 and Zone 2, as well as IECEx/ATEX Zone 21, ensuring compliance for chemical processing plants, oil & gas facilities, and mining operations.
The fixture features IP66 ingress protection and a NEMA 4X enclosure for rugged outdoor and washdown applications, along with hazardous-location certifications (NEC/CEC, IECEx/ATEX Zone 21) for safe operation in demanding environments.
A robust die-cast aluminum housing, glass lens, and flexible pendant mounting simplify installation in tight spaces, while the dimmable driver reduces energy use and extends lamp life. Combined with long-term reliability in hazardous areas, this supports lower maintenance costs and faster project payback.
