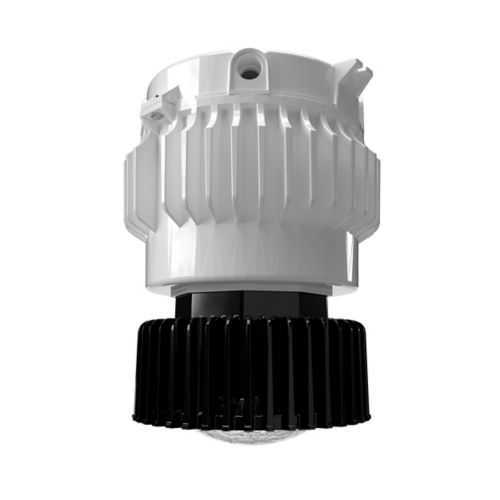

Eaton Crouse-Hinds VMVL-3-UNV1-EM1 LED Light - IP66/4X
Part Number: VMVL-3-UNV1-EM1
Quick Summary
Eaton Crouse-Hinds VMVL-3-UNV1-EM1 is an LED light fixture with emergency back-up for hazardous locations. Facility teams often struggle to maintain reliable emergency lighting in harsh environments with limited maintenance access. This luminaire meets critical certifications with IP66, NEMA 4X, and NEC/CEC compliance for hazardous locations. It supports 100-277 VAC, 0-10 V dimming, Type V distribution, and a 3000-lumen output, delivering efficiency and safety. By combining emergency back-up, rugged construction, and straightforward installation, it helps reduce downtime and total cost of ownership. Its tempered glass lens, copper-free aluminum housing, and 30W power ensure durability and long service life in high-demand environments such as chemical plants, refineries, and wastewater facilities.
Product Information
Extended Description
VMVL-3-UNV1-EM1 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Champ VMVL LED light fixture with emergency back-up, Cool white, 0-10V dimming, No guard, Tempered glass lens, 3000 lumens, 125 lm/W, Copper-free aluminum, No mounting module, Type V, 100-277 Vac, 30W
Product Name
Eaton Crouse-Hinds series Champ VMVL LED light fixture with emergency back-up
Catalog Number
VMVL-3-UNV1-EM1
UPC
662276964297
Product Length/Depth
13.13 in
Product Height
15.68 in
Product Width
12.75 in
Product Weight
32.7 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class I, Zone 2 Class II, Division 1 Class III
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lumens
3000
Lumens per watt
125
Color temperature
Cool white
Mounting Method
No mounting module
Optical distribution
Type V
Guard type
No guard
Voltage rating
100-277 Vac
Material
Cast copper-free aluminum
Lens material
Tempered glass
Special features
Emergency driver system
Dimming
0-10 V
Frequency rating
50/60 Hz
Power factor
> 0.90
Wattage
30W
SP3D Design Package - Champ VMVL EM with Emergency Back-up Battery
Champ VMVL LED with Emergency Back-up Battery flyer
Crouse-Hinds series Champ VMVL LED with Emergency Back-up catalog page
IF 1916 - Champ VMVL Emergency LED Luminaires
IF 1916 - Champ VMVL Emergency LED Luminaires
Eaton Specification Sheet - VMVL-3-UNV1-EM1
Feature: Rugged protection with IP66 and NEMA 4X; Business Impact: Provides continued lighting in dust-laden, wet, and corrosive environments, reducing maintenance intervals; Application: Chemical plants, offshore platforms, mining, and wastewater facilities. Feature: Emergency driver system; Business Impact: Ensures safe egress power during outages, improving safety compliance and evac readiness; Application: All-hazard industrial spaces requiring reliable backup lighting. Feature: High efficiency and brightness; Business Impact: 3000 lumens at 125 lm/W lowers energy cost while preserving visibility for critical tasks; Application: General area and task lighting in hazardous zones. Feature: Wide voltage and dimming; Business Impact: Flexible retrofits across facilities and variable lighting control; Application: Process areas with changing illumination needs. Feature: No mounting module; Business Impact: Simplifies installation and reduces ballast and accessory costs; Application: Retrofit or new-build installations in harsh environments. Feature: Durable construction; Business Impact: Tempered glass lens and copper-free aluminum housing provide longevity under vibration and humidity; Application: Oil, gas, chemical processing, and mining facilities.
Get a Quick Quote for a Eaton Crouse-Hinds VMVL-3-UNV1-EM1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds VMVL-3-UNV1-EM1?
Enquire Now
FAQs
Installers should verify the 100-277 VAC supply, connect to the luminaire's input leads per local code, and ensure the area is classified Class I/II as required. The unit uses no mounting module, Type V distribution, and IP66/NEMA 4X protection, simplifying mount points while maintaining enclosure integrity. Follow the installation sheet IF 1916 for EM luminaires and ensure bonding and grounding are compliant to NEC/CEC requirements.
The luminaire delivers 3000 lumens at 30 watts with a cool white color temperature, achieving >0.90 power factor. It operates at 50/60 Hz and supports 0-10 V dimming. Voltage input is 100-277 Vac, enabling flexible use across facilities and retrofit projects in hazardous environments.
Yes. The fixture is certified for Hazardous/Classified Locations with Class I, Division 2 and Zone 2 ratings, as well as Class II Division 1 and Class III. It carries IP66 and NEMA 4X protection, which supports reliable operation in harsh, dusty, and damp conditions commonly found in processing plants and refineries.
The luminaire complies with NEC/CEC standards and is rated for Hazardous/Classified Locations, including Class I Division 2; Zone 2; Class II Division 1; Class III. IP66 and NEMA 4X ratings provide environmental ruggedness, while tempered glass lens and copper-free aluminum housing extend service life in corrosive and vibratory settings, helping maintain compliance and uptime.
With a built-in emergency driver system, long-life LEDs, and high efficiency, the VMVL-3-UNV1-EM1 reduces downtime and energy costs. The no mounting module design speeds installation, while the rugged housing reduces maintenance intervals in harsh environments, delivering lower total cost of ownership over the fixture’s life in chemical plants, refineries, and similar facilities.
