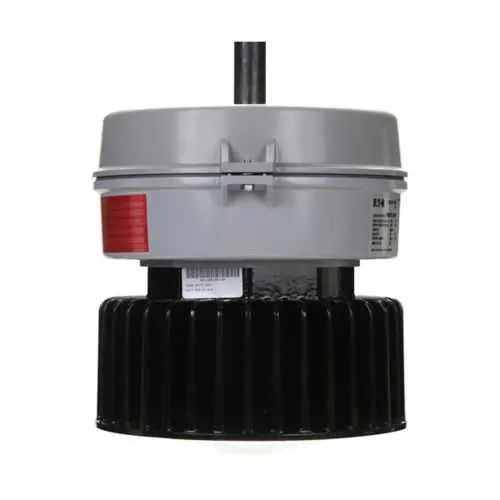

Eaton Crouse-Hinds VMVL-5-2A-R3-UNV1 VMVL LED light fixture - IP66/NEMA 4X
Part Number: VMVL-5-2A-R3-UNV1
Quick Summary
VMVL-5-2A-R3-UNV1 is a high-efficiency LED light fixture for hazardous-location illumination. Facility teams often struggle with reliability and maintenance in harsh environments, driving downtime and rising costs. This luminaire delivers NEC/CEC, IECEx/ATEX, IP66, and NEMA 4X certifications to ensure safe operation across Zone 21 and Class I/II locations. With 5000 lumens at 127 lm/W and a dimmable driver, it supports energy savings while simplifying procurement and regulatory compliance for global operations.
Product Information
Extended Description
VMVL-5-2A-R3-UNV1 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Champ VMVL LED fixture, Cool white, 100W HID equivalent, No guard, Glass lens, 5000 lumens, 127 lm/W, Die cast aluminum, Pendant mount, Type III, 3/4" trade size, 100-277 Vac, 127-250 Vdc, 45W
Product Name
Eaton Crouse-Hinds series Champ VMVL LED light fixture
Catalog Number
VMVL-5-2A-R3-UNV1
UPC
662276914551
Product Length/Depth
11.62 in
Product Height
11 in
Product Width
11.62 in
Product Weight
20.25 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC IEC IECEx/ATEX
NEC hazardous rating
Class I, Division 2 Class I, Zone 2 Class II, Division 1 Class III
IECEx/ATEX hazardous rating
Zone 21
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lumens
5000
Lumens per watt
127
Color temperature
Cool white
Mounting Method
Pendant
Trade size
100-240 Vac, 127-250 Vdc
Optical distribution
Type III
Guard type
No guard
Voltage rating
100-277 Vac, 127-250 Vdc
Frequency rating
50/60 Hz
Wattage
45W
Dimming
Dimmable driver
Power factor
> 0.90
Equivalent luminaire
100W HID
Material
Die cast aluminum
Lens material
Heat and impact resistant glass
SP3D Design Package - Champ VMVL LED Hazardous Area Light Fixtures
Crouse-Hinds series Champ VMVL LED Luminaires - 3,000 to 13,000 lumens brochure
Crouse-Hinds series Champ VMVL LED Luminaires - 3,000 to 13,000 lumens brochure
Crouse-Hinds series Champ VMVL LED Luminaires - 3,000 to 13,000 lumens brochure
Crouse-Hinds series Champ VMVL LED luminaires - 3,000 to 13,000 lumens catalog page
IF 1888 - Champ VMVL and PVML Driver Replacement
IF 1888 - Champ VMVL and PVML Driver Replacement
Champ VMV LED Hazardous Area
Champ VMV LED Hazardous Area
The VMVL LED fixture delivers 5000 lumens at an impressive 127 lm/W, providing bright, uniform coverage with Type III optical distribution for expansive outdoor or large-area industrial spaces. Business impact: fewer fixtures needed to achieve the same illumination levels, reducing CapEx and maintenance cycles in chemical plants, refineries, and mining sites. Application: pendant-mounted luminaires in hazardous locations where robust lighting is essential. The die-cast aluminum housing and glass lens offer exceptional corrosion resistance and impact durability, with an IP66 and NEMA 4X rating, improving uptime in dusty or wet environments. Business impact: lower replacement costs and longer service intervals; Application: coastal or process-heavy facilities. The 45W driver with a wide 100-277 Vac / 127-250 Vdc range, 50/60 Hz operation, and >0.90 PF enables seamless integration with existing electrical systems while supporting dimming options for varying workloads. Application: retrofit projects and new builds seeking energy efficiency and light quality. The pendant mounting and 3/4" trade size simplify installation and future maintenance, enabling quick uprates or relocations in crowded plant spaces. Business impact: reduced installation time and labor costs; Application: retrofits and expansions. Certified for Hazardous/Classified Locations with NEC/CEC and IECEx/ATEX Zone 21, plus IP66 and NEMA 4X, delivering a compliant, long-life solution suitable for global deployments. Application: multi-site operations requiring consistent hardware across diverse regulatory regimes.
Get a Quick Quote for a Eaton Crouse-Hinds VMVL-5-2A-R3-UNV1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds VMVL-5-2A-R3-UNV1?
Enquire Now
FAQs
VMVL-5-2A-R3-UNV1 is designed for pendant mounting with a 3/4 inch trade size. Its dimensions (approx. 11.62 in length and width, 11 in height) and glass lens are optimized for retrofits in constrained industrial spaces, allowing straightforward wiring and maintenance while preserving a clean, secure mounting in hazardous locations.
The luminaire is rated for NEC/CEC hazardous areas and IECEx/ATEX Zone 21, with additional protections including IP66 and NEMA 4X ratings. It supports Class I Division 2, Zone 2, Class II Division 1, and Class III environments, enabling safe use across global industrial facilities.
It operates at 100-277 Vac and 127-250 Vdc, 50/60 Hz, draws 45W, and delivers 5000 lumens with a high efficiency of 127 lm/W. The power factor exceeds 0.90, and the driver is dimmable, enabling integration with existing controls and reducing energy consumption while maintaining consistent light levels in demanding processes.
Yes. The IP66 ingress protection and NEMA 4X enclosure provide robust protection against dust, water jets, and harsh chemicals, making it suitable for outdoor or harsh indoor environments. The Type III optical distribution ensures broad coverage, ideal for exterior walls, walkways, and large processing areas.
LED life, low heat output, and dimmable operation reduce replacement cycles and maintenance labor. The rugged die-cast aluminum housing resists corrosion, while the glass lens minimizes lens replacement needs. Together with global certification coverage, it streamlines procurement and reduces total cost of ownership across multi-site operations.
