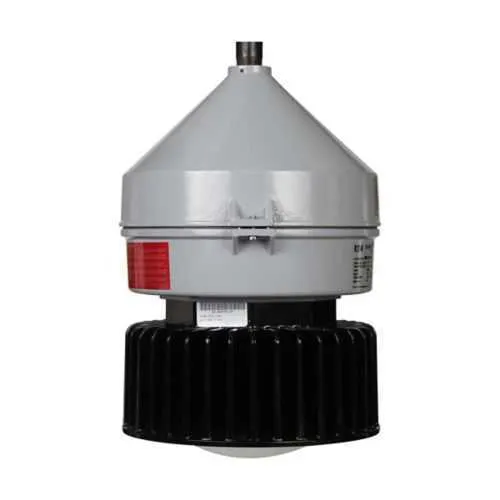

Eaton Crouse-Hinds VMVL-5-2B-G-UNV1 LED light fixture - IP66
Part Number: VMVL-5-2B-G-UNV1
Quick Summary
The Eaton Crouse-Hinds VMVL-5-2B-G-UNV1 LED light fixture delivers rugged, reliable illumination for hazardous-area facilities. Engineers often struggle with maintaining consistent performance in harsh environments, where moisture, dust and vibration threaten uptime. This luminaire carries IECEx/ATEX Zone 21 certification, NEC/CEC approvals, and a NEMA 4X/IP66 protection level to keep operations compliant. Designed for 100-277 Vac and 127-250 Vdc with a dimmable driver, it offers energy savings and simpler integration into existing electrical systems. In practice, it provides long life, stable output, and a scalable option for industrial lighting strategies that balance safety, productivity, and cost.
Product Information
Extended Description
VMVL-5-2B-G-UNV1 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Champ VMVL LED fixture, Cool white, 100W HID equivalent, Wire guard, Glass lens, 5000 lumens, 127 lm/W, Die cast aluminum, Cone pendant mount, Type V, 3/4" trade size, 100-277 Vac, 127-250 Vdc, 45W
Product Name
Eaton Crouse-Hinds series Champ VMVL LED light fixture
Catalog Number
VMVL-5-2B-G-UNV1
UPC
662276904576
Product Length/Depth
11.62 in
Product Height
15.22 in
Product Width
11.62 in
Product Weight
23 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC IEC IECEx/ATEX
NEC hazardous rating
Class I, Division 2 Class I, Zone 2 Class II, Division 1 Class III
IECEx/ATEX hazardous rating
Zone 21
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lumens
5000
Lumens per watt
127
Color temperature
Cool white
Mounting Method
Cone pendant
Trade size
100-240 Vac, 127-250 Vdc
Optical distribution
Type V
Guard type
Wire
Voltage rating
100-277 Vac, 127-250 Vdc
Frequency rating
50/60 Hz
Wattage
45W
Dimming
Dimmable driver
Power factor
> 0.90
Equivalent luminaire
100W HID
Material
Die cast aluminum
Lens material
Heat and impact resistant glass
SP3D Design Package - Champ VMVL LED Hazardous Area Light Fixtures
Crouse-Hinds series Global LED lighting portfolio
Crouse-Hinds series Global LED lighting portfolio
Crouse-Hinds series Global LED lighting portfolio
Crouse-Hinds series Champ VMVL LED luminaires - 3,000 to 13,000 lumens catalog page
IF 1882 - Champ VMVL and PVML LED luminaires
IF 1882 - Champ VMVL and PVML LED luminaires
Champ VMV LED Hazardous Area
Champ VMV LED Hazardous Area
The VMVL-5-2B-G-UNV1 delivers 5000 lumens at 127 lm/W while consuming only 45W with a cool white output. Business impact: higher light levels per watt reduce energy costs and cooling load, extending intervals between maintenance checks. Application: open-hatch areas, bays, and process rooms in chemical plants and refineries where consistent, high-contrast illumination is essential. Feature: Type V optical distribution with heat- and impact-resistant glass and a wire guard. Business impact: ensures uniform coverage and durable protection against impacts and glass breakage, lowering replacement parts and downtime. Application: hazardous locations where equipment is subjected to vibration and material impact. Feature: IP66 ingress protection and NEMA 4X enclosure. Business impact: reliable operation in harsh indoor and outdoor conditions, reducing weather-related outages. Application: washdown zones and outdoor enclosures in mining and oil & gas facilities. Feature: wide voltage range 100-277Vac / 127-250Vdc and 50/60 Hz with a dimmable driver; power factor >0.90. Business impact: flexible integration with site power and control systems, lowering rework and enabling dimming for energy management. Application: retrofits and new installs across varying power infrastructures. Feature: cone pendant mounting and 3/4" trade size with die-cast aluminum housing. Business impact: straightforward installation, robust mechanical support, and long-term durability in dusty or humid environments. Application: overhead lighting in factories, maintenance bays, and hazardous-area walkways. Feature: 100-277Vac / 127-250Vdc rating and 5000 lumens, offering a direct HID replacement. Business impact: reduces operating costs while preserving lighting performance in demanding facilities. Application: industrial plants transitioning from HID to LED with minimal downtime.
Get a Quick Quote for a Eaton Crouse-Hinds VMVL-5-2B-G-UNV1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds VMVL-5-2B-G-UNV1?
Enquire Now
FAQs
The VMVL-5-2B-G-UNV1 uses cone pendant mounting with a 3/4 inch trade size and supports a wide input range of 100-277 Vac or 127-250 Vdc at 50/60 Hz. This combination enables straightforward integration with existing pendant supports and standard electrical infrastructure, reducing retrofit time and permitting simple upgrades from HID fixtures.
Yes. The luminaire carries NEC/CEC approvals and IECEx/ATEX Zone 21 certification, along with Class I Division 2 and other hazardous-location ratings. It also features IP66 and NEMA 4X protection, making it suitable for demanding oil, gas, chemical, and mining environments.
The fixture delivers 5000 lumens at 127 lm/W with a 45W driver, offering a bright, high-efficacy replacement for 100W HID equivalents. With a PF >0.90 and dimmable driver, it reduces energy costs, minimizes heat output, and supports lighting-control strategies without sacrificing visibility or safety.
In addition to IP66 and NEMA 4X, the VMVL-5-2B-G-UNV1 holds IECEx/ATEX Zone 21 and NEC/CEC certifications, and a Hazardous/Classified Locations rating. These align with global industrial standards and mitigate risk in hazardous areas while supporting regulatory compliance.
Supported materials include SP3D design packages, installation instructions, and datasheets. Downloads cover 3D models, brochures, catalogs, and spec guides to facilitate design reviews, approvals, and on-site installation planning.
