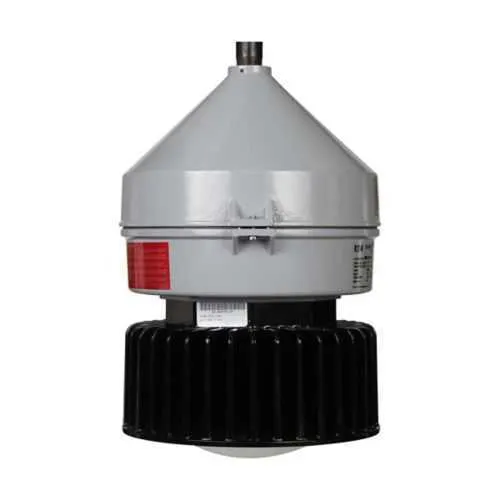

Eaton Crouse-Hinds VMVL-5-2B-G-UNV34 LED Light - IP66
Part Number: VMVL-5-2B-G-UNV34
Quick Summary
Eaton Crouse-Hinds VMVL-5-2B-G-UNV34 LED light fixture provides rugged, reliable illumination for hazardous-location applications. For engineers and maintenance teams, aging luminaires can fail under vibration, dust, and chemical exposure, causing costly downtime. This luminaire delivers NEC/CEC and IECEx/ATEX certifications, Zone 21 hazardous rating, IP66, and NEMA 4X protection to ensure compliance and long service life. In addition to durability, it offers energy-efficient performance with 5000 lumens at 127 lm/W from a 45W driver and cool white output. The cone pendant mount, glass lens, and wire guard simplify installation in tight spaces, making it a practical choice for hazardous location lighting and LED lighting for explosion-prone environments.
Product Information
Extended Description
VMVL-5-2B-G-UNV34 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Champ VMVL LED fixture, Cool white, 100W HID equivalent, Wire guard, Glass lens, 5000 lumens, 127 lm/W, Die cast aluminum, Cone pendant mount, Type V, 3/4" trade size, 347-480 Vac, 45W
Product Name
Eaton Crouse-Hinds series Champ VMVL LED light fixture
Catalog Number
VMVL-5-2B-G-UNV34
UPC
662276964914
Product Length/Depth
11.62 in
Product Height
15.22 in
Product Width
11.62 in
Product Weight
23 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC IEC IECEx/ATEX
NEC hazardous rating
Class I, Division 2 Class I, Zone 2 Class II, Division 1 Class III
IECEx/ATEX hazardous rating
Zone 21
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lumens
5000
Lumens per watt
127
Color temperature
Cool white
Mounting Method
Cone pendant
Trade size
100-240 Vac, 127-250 Vdc
Optical distribution
Type V
Guard type
Wire
Voltage rating
347-480 Vac
Frequency rating
50/60 Hz
Wattage
45W
Dimming
Dimmable driver
Power factor
> 0.90
Equivalent luminaire
100W HID
Material
Die cast aluminum
Lens material
Heat and impact resistant glass
SP3D Design Package - Champ VMVL LED Hazardous Area Light Fixtures
Crouse-Hinds series DLC approved lighting products
Crouse-Hinds series DLC approved lighting products
Crouse-Hinds series DLC approved lighting products
Crouse-Hinds series Champ VMVL LED luminaires - 3,000 to 13,000 lumens catalog page
IF 1888 - Champ VMVL and PVML Driver Replacement
IF 1888 - Champ VMVL and PVML Driver Replacement
Champ VMV LED Hazardous Area
Champ VMV LED Hazardous Area
Durable die-cast aluminum housing and IP66/NEMA 4X protection extend service life and reduce maintenance in harsh environments. The VMVL-5-2B-G-UNV34 resists dust, water, and corrosion while providing consistent illumination in hazardous areas such as chemical plants and offshore facilities. With 5000 lumens at 127 lm/W and a 45W driver, this fixture delivers bright, energy-efficient illumination that lowers operating costs compared to legacy HID systems. The 50/60 Hz operation and dimmable driver support precise control and compatibility with existing electrical systems. Type V optical distribution ensures uniform light in large, open spaces and downward-focused yet broad coverage, improving safety and productivity. The voltage rating supports a versatile procurement strategy, simplifying stocking for multi-area deployments. Cone pendant mounting, glass lens, and wire guard simplify installation in restricted ceilings and hazardous zones. The tough die-cast housing withstands vibration and impact, while the 5000-lumen output provides a direct HID replacement, reducing retrofit labor. Compliance and installation support include NEC/CEC and IECEx/ATEX certifications, Zone 21, Class I Division 2, and NEMA 4X/IP66 ratings, making it suitable for regulated facilities. Comprehensive documentation and design packages accelerate commissioning and ongoing maintenance.
Get a Quick Quote for a Eaton Crouse-Hinds VMVL-5-2B-G-UNV34
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds VMVL-5-2B-G-UNV34?
Enquire Now
FAQs
VMVL-5-2B-G-UNV34 uses a cone pendant mounting method for hazardous zones and supports 347–480 Vac operation at 50/60 Hz. It includes a dimmable driver and a 3/4 inch trade-size mounting footprint, with a glass lens, wire guard, and die-cast aluminum housing, making retrofits straightforward in Class I/II, Zone classifications.
Key specs include 5000 lumens at 127 lm/W from a 45W LED driver, cool white color temperature, and 50/60 Hz operation. It is designed as an HID replacement with robust efficiency, enabling lower energy use and predictable illumination in hazardous area facilities.
Yes, the VMVL-5-2B-G-UNV34 is intended for Zone 21 hazardous locations and Class I Division 2. It carries NEC/CEC and IECEx/ATEX certifications, plus Zone 21 approval, IP66 protection, and NEMA 4X rating to meet stringent industrial and regulatory requirements.
The fixture adheres to NEC/CEC and IECEx/ATEX standards, with Zone 21 and IP66/NEMA 4X ratings. Hazardous location classifications include Class I, Division 2 and related Zone/Division combinations, ensuring compliance across regulated industries such as chemical processing and offshore facilities.
Expect reduced maintenance due to a durable die-cast housing, glass lens, and a long-life LED with a dimmable driver. Energy savings from 45W at 5000 lumens offer a favorable ROI versus HID systems, while certifications and documented installation guidance minimize commissioning time and lifecycle costs in harsh environments.
