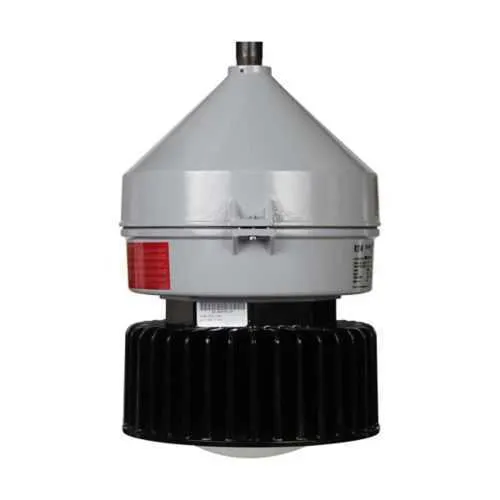

Eaton Crouse-Hinds VMVL-5-2B-UNV1 LED light fixture - IP66
Part Number: VMVL-5-2B-UNV1
Quick Summary
VMVL-5-2B-UNV1 LED light fixture delivers reliable hazardous-location illumination for industrial facilities. Engineers often struggle with maintaining consistent lighting in harsh environments where dust, moisture, and chemical exposure degrade performance and elevate risk. This unit meets NEC/CEC IECEx/ATEX standards for hazardous/classified locations, Zone 21 compliance, and IP66 protection, along with a robust NEMA 4X enclosure for rugged climates. Designed for 100-277 VAC and 127-250 VDC operation with a dimmable driver, it combines safety, efficiency, and long service life. In addition to glow quality, it supports maintenance planning and energy cost reduction, making it a practical choice for facilities seeking reliable, code-compliant lighting in demanding settings.
Product Information
Extended Description
VMVL-5-2B-UNV1 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Champ VMVL LED fixture, Cool white, 100W HID equivalent, No guard, Glass lens, 5000 lumens, 127 lm/W, Die cast aluminum, Cone pendant mount, Type V, 3/4" trade size, 100-277 Vac, 127-250 Vdc, 45W
Product Name
Eaton Crouse-Hinds series Champ VMVL LED light fixture
Catalog Number
VMVL-5-2B-UNV1
UPC
662276882409
Product Length/Depth
11.62 in
Product Height
15.22 in
Product Width
11.62 in
Product Weight
23 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC IEC IECEx/ATEX
NEC hazardous rating
Class I, Division 2 Class I, Zone 2 Class II, Division 1 Class III
IECEx/ATEX hazardous rating
Zone 21
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lumens
5000
Lumens per watt
127
Color temperature
Cool white
Mounting Method
Cone pendant
Trade size
100-240 Vac, 127-250 Vdc
Optical distribution
Type V
Guard type
No guard
Voltage rating
100-277 Vac, 127-250 Vdc
Frequency rating
50/60 Hz
Wattage
45W
Dimming
Dimmable driver
Power factor
> 0.90
Equivalent luminaire
100W HID
Material
Die cast aluminum
Lens material
Heat and impact resistant glass
SP3D Design Package - Champ VMVL LED Hazardous Area Light Fixtures
Crouse-Hinds series Global LED lighting portfolio
Crouse-Hinds series Global LED lighting portfolio
Crouse-Hinds series Global LED lighting portfolio
Crouse-Hinds series Champ VMVL LED luminaires - 3,000 to 13,000 lumens catalog page
IF 1888 - Champ VMVL and PVML Driver Replacement
IF 1888 - Champ VMVL and PVML Driver Replacement
Eaton Specification Sheet - VMVL-5-2B-UNV1
Eaton Specification Sheet - VMVL-5-2B-UNV1
The VMVL-5-2B-UNV1 delivers 5000 lumens at 45 W with a high efficacy of 127 lm/W, reducing energy use compared with traditional HID lighting while maintaining bright, cool white illumination for safer workspaces. This translates to lower operating costs and fewer replacements in hazardous environments where maintenance windows are costly. The die-cast aluminum housing with a heat-resistant glass lens provides superior corrosion resistance and ease of cleaning, supporting long-term reliability in chemical plants and offshore facilities. Type V optical distribution ensures uniform coverage over large suspended areas, while the cone pendant mounting and 3/4 inch trade size simplify installation and retrofit projects. With a dimmable driver and a broad voltage range (100-277 VAC, 127-250 VDC) plus a PF over 0.90, this fixture adapts to existing controls and power architectures, reducing wiring changes and improving control precision. The unit’s certifications—Hazardous/Classified Locations, Zone 21, IP66, NEMA 4X—offer clear regulatory alignment and risk reduction for compliance-driven projects.
Get a Quick Quote for a Eaton Crouse-Hinds VMVL-5-2B-UNV1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds VMVL-5-2B-UNV1?
Enquire Now
FAQs
The VMVL-5-2B-UNV1 uses a cone pendant mounting with a 3/4" trade size, simplifying retrofit projects and reducing hardware assortment. It also accommodates standard mounting practices in hazardous areas, helping maintain consistent light distribution with minimal downtime.
Yes. The fixture is designed for Hazardous/Classified Locations, with NEC/CEC IECEx/ATEX compliance and Zone 21 suitability, plus IP66 and NEMA 4X protection to withstand challenging industrial environments.
It operates from 100-277 VAC or 127-250 VDC at 50/60 Hz, draws 45 W for 5000 lumens (≈127 lm/W), and features a dimmable driver with PF > 0.90, enabling compatible lighting control strategies and energy savings.
You can access 3D design packages, installation sheets (IF 1888), and specification datasheets from Eaton. These resources support installation planning, compatibility checks, and expedited maintenance planning.
The combination of high lumen output with low wattage, robust enclosure ratings, and wide voltage compatibility delivers energy savings, reduced maintenance downtime, and regulatory compliance, contributing to lower total cost of ownership in demanding facilities.
