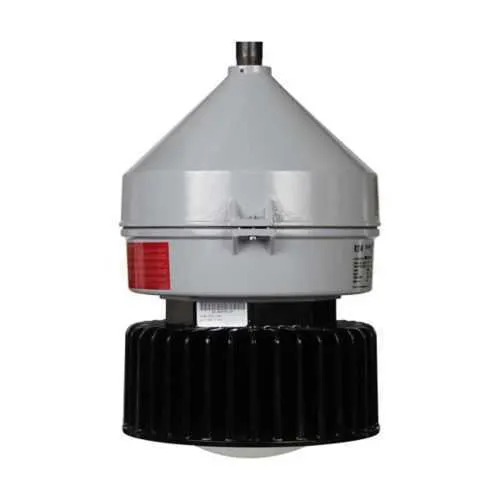

Eaton Crouse-Hinds VMVL-5-3B-G-UNV1-S896 LED light fixture - IP66
Part Number: VMVL-5-3B-G-UNV1-S896
Manufacturer
Eaton Crouse-Hinds
Part number
VMVL-5-3B-G-UNV1-S896
Category
Quick Summary
VMVL LED light fixture is a rugged, high-efficiency solution for hazardous industrial environments. In zones with explosion risks, unreliable lighting or frequent fixture failures disrupt productivity and safety. It is engineered to meet NEC/CEC IECEx/ATEX standards and Zone 21 classifications, with IP66 and NEMA 4X sealing to withstand dust, moisture, and corrosive atmospheres. The fixture supports a broad voltage range—100-277 Vac and 127-250 Vdc—while offering a dimmable driver and excellent power factor. This combination helps maintenance teams reduce downtime, streamline procurement, and drive consistent illumination across multi-site operations, delivering a safer work environment and lower total cost of ownership for industrial facilities.
Product Information
Extended Description
VMVL-5-3B-G-UNV1-S896 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Champ VMVL LED fixture, Cool white, 100W HID equivalent, Wire guard, Teflon coated lens, 5000 lumens, 127 lm/W, Die cast aluminum, Cone pendant mount, Type V, 1" trade size, 100-277 Vac, 127-250 Vdc, 45W
Product Name
Eaton Crouse-Hinds series Champ VMVL LED light fixture
Catalog Number
VMVL-5-3B-G-UNV1-S896
UPC
662276914971
Product Length/Depth
11.62 in
Product Height
15.22 in
Product Width
11.62 in
Product Weight
23 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC IEC IECEx/ATEX
NEC hazardous rating
Class I, Division 2 Class I, Zone 2 Class II, Division 1 Class III
IECEx/ATEX hazardous rating
Zone 21
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lumens
5000
Lumens per watt
127
Color temperature
Cool white
Mounting Method
Cone pendant
Trade size
1"
Optical distribution
Type V
Guard type
Wire
Voltage rating
100-277 Vac, 127-250 Vdc
Frequency rating
50/60 Hz
Wattage
45W
Dimming
Dimmable driver
Power factor
> 0.90
Equivalent luminaire
100W HID
Material
Die cast aluminum
Lens material
Teflon coated
SP3D Design Package - Champ VMVL LED Hazardous Area Light Fixtures
Crouse-Hinds series DLC approved lighting products
Crouse-Hinds series DLC approved lighting products
Crouse-Hinds series DLC approved lighting products
Crouse-Hinds series Champ VMVL LED luminaires - 3,000 to 13,000 lumens catalog page
IF 1888 - Champ VMVL and PVML Driver Replacement
IF 1888 - Champ VMVL and PVML Driver Replacement
Eaton Specification Sheet - VMVL-5-3B-G-UNV1-S896
Eaton Specification Sheet - VMVL-5-3B-G-UNV1-S896
Feature: 5000 lumens output at 127 lm/W and 45W; Business Impact: high-efficiency lighting that closely matches a 100W HID equivalent while reducing energy costs; Application: large-area hazardous locations such as chemical plants and refineries. Feature: Type V optical distribution and 1" trade size cone pendant mounting; Business Impact: precise, symmetrical illumination with flexible installation options; Application: mezzanines, catwalks, and outdoor hazardous zones. Feature: Dimmable driver and PF > 0.90; Business Impact: compatibility with control strategies, reduced energy consumption, and improved ambient quality; Application: facilities with centralized lighting controls and dimming requirements. Feature: Die-cast aluminum housing, wire guard, and Teflon-coated lens; Business Impact: robust, corrosion-resistant construction with durable protection against impacts and chemical environments; Application: outdoor yards and industrial parks. Feature: 100-277 Vac / 127-250 Vdc universal voltage; Business Impact: global procurement simplicity, fewer ballast/driver compatibility issues; Application: multinational operations with varied power networks. Feature: Hazardous/Classified locations certifications (NEC/CEC IECEx/ATEX Zone 21, IP66, NEMA 4X); Business Impact: compliant, safer installations with lowered risk of non-conformance; Application: all Zone 21/Class I, II, III environments across industries.
Get a Quick Quote for a Eaton Crouse-Hinds VMVL-5-3B-G-UNV1-S896
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds VMVL-5-3B-G-UNV1-S896?
Enquire Now
FAQs
Installers should use the cone pendant mounting and 1" trade size as specified, ensuring proper clearance for venting and accessibility for maintenance. Use the die-cast aluminum housing with the wire guard in outdoor or harsh environments, and follow NEC/CEC/IECEx/ATEX guidelines for Zone 21 and Class I Division 2 sites. Confirm power availability within 100-277 Vac or 127-250 Vdc and verify dimming control compatibility if a driver dimming option is employed.
The unit delivers 5000 lumens at 127 lm/W from a 45W driver, with voltage support of 100-277 Vac or 127-250 Vdc. It runs on 50/60 Hz and features a dimmable driver with a power factor greater than 0.90, making it suitable for broad industrial power networks and enabling efficient integration with lighting controls.
Yes. The fixture is certified for hazardous/classified locations, including IECEx/ATEX Zone 21 and NEC/CEC-compliant classifications such as Class I Division 2 and Zone 21, along with NEMA 4X and IP66 ratings to withstand harsh industrial conditions. This makes it a reliable choice for chemical plants, refineries, and similar facilities.
It carries NEC/CEC IECEx/ATEX certifications with Zone 21 hazardous ratings, IP66 ingress protection, and a NEMA 4X enclosure rating. These certifications ensure compliance for hazardous-location installations, outdoor exposure, and corrosive environments, reducing regulatory risk for project approvals.
LED technology provides longer life and lower maintenance compared with HID systems, while a dimmable driver enables optimization of energy use and lighting levels. The 5000-lumen output at 45W delivers substantial energy savings, translating to reduced operating costs and faster return on investment for facilities with demanding hazardous-location lighting needs.
