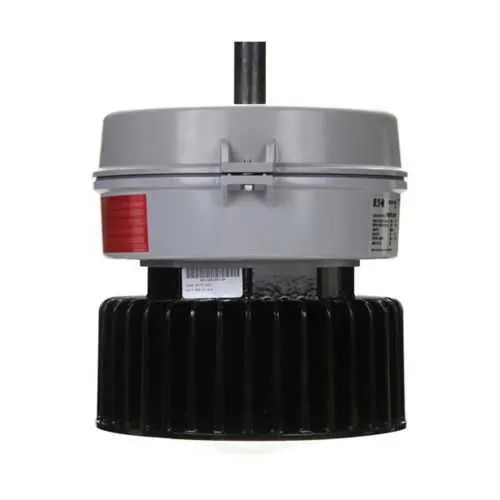

Eaton Crouse-Hinds VMVL-5-N-2A-UNV1-TB6 - IP66

Part Number: VMVL-5-N-2A-UNV1-TB6
VMVL-5-N-2A-UNV1-TB6
Manufacturer
Eaton Crouse-Hinds
Part number
VMVL-5-N-2A-UNV1-TB6
Category

Quick Summary

VMVL LED light fixture from Eaton Crouse-Hinds delivers rugged illumination for hazardous area installations. Engineers rely on dependable lumen maintenance while meeting strict safety and environmental requirements in demanding facilities. This luminaire is built to NEC/IECEx/ATEX standards with IP66 ingress protection and NEMA 4X corrosion resistance, plus Zone 21 certification for classified locations. With pendant mounting and a broad input range, VMVL enables flexible retrofits and scalable deployments. It delivers 5000 lumens at 127 lm/W from a 45 W driver, compatible with 100-277 VAC and 127-250 VDC, while maintaining a neutral white color and a Type V distribution. For operators, this means reduced maintenance cycles, predictable performance, and safer, code-compliant illumination in harsh environments.

Product Information

Extended Description

VMVL-5-N-2A-UNV1-TB6 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Champ VMVL LED fixture, Neutral white, 100W HID equivalent, No guard, Glass lens, 5000 lumens, 127 lm/W, Die cast alum, Pendant mount, Type V, 6-pole terminal block, 3/4" trade size, 100-277 Vac, 127-250 Vdc, 45W
Product Name
Eaton Crouse-Hinds series Champ VMVL LED light fixture
Catalog Number
VMVL-5-N-2A-UNV1-TB6
UPC
662276952485
Product Length/Depth
11.62 in
Product Height
11 in
Product Width
11.62 in
Product Weight
20.25 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC IEC IECEx/ATEX
NEC hazardous rating
Class I, Division 2 Class I, Zone 2 Class II, Division 1 Class III
IECEx/ATEX hazardous rating
Zone 21
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lumens
5000
Lumens per watt
127
Color temperature
Neutral white
Mounting Method
Pendant
Trade size
100-240 Vac, 127-250 Vdc
Optical distribution
Type V
Guard type
No guard
Voltage rating
100-277 Vac, 127-250 Vdc
Frequency rating
50/60 Hz
Wattage
45W
Dimming
Dimmable driver
Power factor
> 0.90
Equivalent luminaire
100W HID
Material
Die cast aluminum
Lens material
Heat and impact resistant glass
Special features
Six-pole terminal block
SP3D Design Package - Champ VMVL LED Hazardous Area Light Fixtures Crouse-Hinds series Champ VMVL LED Luminaires - 3,000 to 13,000 lumens brochure Crouse-Hinds series Champ VMVL LED Luminaires - 3,000 to 13,000 lumens brochure Crouse-Hinds series Champ VMVL LED Luminaires - 3,000 to 13,000 lumens brochure Crouse-Hinds series Champ VMVL LED luminaires - 3,000 to 13,000 lumens catalog page IF 1882 - Champ VMVL and PVML LED luminaires IF 1882 - Champ VMVL and PVML LED luminaires Eaton Specification Sheet - VMVL-5-N-2A-UNV1-TB6 Eaton Specification Sheet - VMVL-5-N-2A-UNV1-TB6
Feature: High-output illumination at 5000 lumens with 127 lm/W efficiency. Business Impact: Lower energy costs and longer intervals between lamp replacements due to superior efficiency and LED longevity. Application: Hazardous-location centers and outdoor industrial spaces needing bright, reliable area lighting. Feature: Dimmable driver with power factor > 0.90. Business Impact: Enhanced lighting control reduces energy waste during partial-load periods and improves visual comfort for personnel. Application: Indoor processing areas and high-clarity inspection zones where dimming supports workflow. Feature: IP66 ingress protection and NEMA 4X enclosure. Business Impact: Superior protection from dust, water spray, and corrosion translates to longer life in wash-down and outdoor environments. Application: Chemical plants, offshore platforms, and wet locations. Feature: Glass lens with heat and impact resistance. Business Impact: Maintains optical performance and reduces replacement costs in high-traffic or rugged settings. Application: Aisles, corridors, and outdoor walkways with potential debris exposure. Feature: Type V optical distribution and pendant mounting. Business Impact: Uniform light coverage with flexible installation options, accelerating project timelines. Application: Open areas and high-ceiling spaces requiring even illumination. Feature: Universal voltage (100-277 VAC, 127-250 VDC) and six-pole terminal block. Business Impact: Simplified installation and compatibility with mixed-power environments; reduces part variety and stocking costs. Application: Retrofit projects and new builds in mixed-power facilities. Feature: Neutral white color temperature and 45 W driver. Business Impact: Balanced color rendering for safe operations and energy-efficient performance for ongoing maintenance budgets. Application: Production floors, control rooms, and hazardous-locations control cabinets.

Get a Quick Quote for a Eaton Crouse-Hinds VMVL-5-N-2A-UNV1-TB6

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton Crouse-Hinds VMVL-5-N-2A-UNV1-TB6? Enquire Now

FAQs

VMVL-5-N-2A-UNV1-TB6 is designed for pendant mounting and accepts a wide input range of 100-277 VAC or 127-250 VDC. It supports Type V optical distribution, with a 5000 lumen output at neutral white, and is suitable for hazardous/classified locations per NEC/IECEx/ATEX. It is ideal for retrofits or new builds in chemical plants, refineries, or other controlled environments.
The IP66 ingress protection and NEMA 4X enclosure provide excellent resistance to dust, water jets, and corrosion, reducing nuisance concerns in wash-down areas and outdoor installations. This translates to lower maintenance frequency, longer service life, and fewer unplanned outages in harsh industrial settings.
The luminaire delivers 5000 lumens at 45 watts with a power factor > 0.90 and LED-based efficiency of about 127 lm/W. This combination reduces energy consumption compared with HID equivalents and minimizes operating costs, while maintaining high-quality illumination essential for safety and productivity in hazardous environments.
VMVL bears NEC hazardous ratings (Class I, Division 2; Class I, Zone 2; Class II, Division 1; Class III) and IECEx/ATEX (Zone 21). It also meets NEMA 4X and IP66 requirements, ensuring compliance in hazardous and classified locations worldwide. These certifications support safer operation, inspections, and fleet-wide standardization.
Upgrading to VMVL offers immediate energy savings from a 45 W LED driver and higher efficiency, along with extended service life and reduced lamp replacements. For facilities with HID equivalents, expect lower maintenance costs, less re-lamping downtime, and improved uptime in hazardous locations. The exact ROI depends on local power costs and existing HID wattage.
