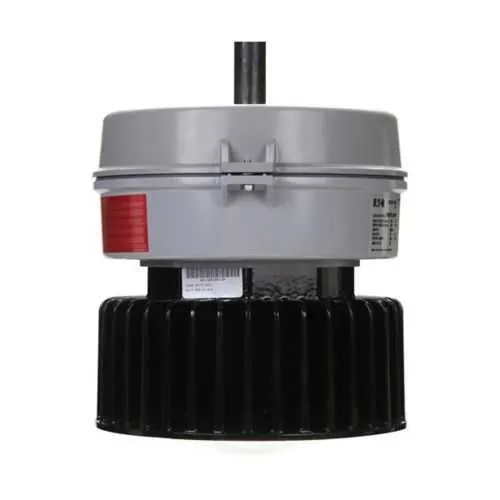

Eaton VMVL-5-W-2A-R3-G-UNV1-TB6 LED light - IP66

Part Number: VMVL-5-W-2A-R3-G-UNV1-TB6
VMVL-5-W-2A-R3-G-UNV1-TB6
Manufacturer
Eaton Crouse-Hinds
Part number
VMVL-5-W-2A-R3-G-UNV1-TB6
Category

Quick Summary

The Eaton VMVL LED light fixture delivers reliable, high-output illumination for hazardous-area facilities. Engineers often struggle with HID performance and frequent maintenance in harsh environments; this fixture reduces downtime with a rugged die-cast aluminum housing and long LED life. It meets IP66 ingress protection, NEMA 4X resilience, and IECEx/ATEX Zone 21 hazardous-location ratings, enabling safe operation in Class I, Division 2 and related areas. With pendant mounting, Type III distribution, and a dimmable driver, it delivers energy efficiency and predictable ROI for plant-wide lighting.

Product Information

Extended Description

VMVL-5-W-2A-R3-G-UNV1-TB6 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Champ VMVL LED fixture, Warm white, 100W HID equiv, Wire guard, Glass lens, 5000 lumens, 127 lm/W, Die cast alum, Pendant mount, Type III, 6-pole terminal block, 3/4" trade size, 100-277 Vac, 127-250 Vdc, 45W
Product Name
Eaton Crouse-Hinds series Champ VMVL LED light fixture
Catalog Number
VMVL-5-W-2A-R3-G-UNV1-TB6
UPC
662276935556
Product Length/Depth
11.62 in
Product Height
11 in
Product Width
11.62 in
Product Weight
20.25 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC IEC IECEx/ATEX
NEC hazardous rating
Class I, Division 2 Class I, Zone 2 Class II, Division 1 Class III
IECEx/ATEX hazardous rating
Zone 21
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lumens
5000
Lumens per watt
127
Color temperature
Warm white
Mounting Method
Pendant
Trade size
100-240 Vac, 127-250 Vdc
Optical distribution
Type III
Guard type
Wire
Voltage rating
100-277 Vac, 127-250 Vdc
Frequency rating
50/60 Hz
Wattage
45W
Dimming
Dimmable driver
Power factor
> 0.90
Equivalent luminaire
100W HID
Material
Die cast aluminum
Lens material
Heat and impact resistant glass
Special features
Six-pole terminal block
SP3D Design Package - Champ VMVL LED Hazardous Area Light Fixtures Crouse-Hinds series Global LED lighting portfolio Crouse-Hinds series Global LED lighting portfolio Crouse-Hinds series Global LED lighting portfolio Crouse-Hinds series Champ VMVL LED luminaires - 3,000 to 13,000 lumens catalog page IF 1888 - Champ VMVL and PVML Driver Replacement IF 1888 - Champ VMVL and PVML Driver Replacement Eaton Specification Sheet - VMVL-5-W-2A-R3-G-UNV1-TB6 Eaton Specification Sheet - VMVL-5-W-2A-R3-G-UNV1-TB6
Feature: 5000 lumens at 127 lm/W with warm white color provides bright, uniform coverage while consuming 45W. Business Impact: Reduces energy costs and extends fixture life, lowering total cost of ownership. Application: Ideal for corridors, outdoor yards, and area lighting in hazardous facilities. Feature: Dimmable driver enables lighting scenes and power optimization. Business Impact: Improves task visibility and reduces energy use during low-demand periods. Application: Maintenance bays and work cells where adjustable light levels enhance safety. Feature: IP66 ingress protection, NEMA 4X enclosure, Zone 21 Zone II/HazLoc ratings. Business Impact: Ensures regulatory compliance and reliable operation in chemical plants, oil & gas facilities, and other hazardous locations. Application: Refineries and chemical processing areas. Feature: Pendant mounting and Type III optical distribution. Business Impact: Precise light placement and easier retrofit at existing sites, reducing installation time. Application: Perimeter lighting around equipment and along walkways. Feature: Die-cast aluminum housing, glass lens, and wire guard. Business Impact: Durable construction resists heat, corrosion, and impact, lowering maintenance costs. Application: Harsh environments with dust, moisture, and potential mechanical exposure.

Get a Quick Quote for a Eaton Crouse-Hinds VMVL-5-W-2A-R3-G-UNV1-TB6

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton Crouse-Hinds VMVL-5-W-2A-R3-G-UNV1-TB6? Enquire Now

FAQs

VMVL-5-W-2A-R3-G-UNV1-TB6 supports universal input: 100-277 VAC and 127-250 VDC, with a 50/60 Hz frequency rating. It operates at 45W and uses a 6-pole terminal block, designed for 3/4" trade size, pendant mounting, and flexible site wiring for variable power environments.
The fixture is rated for Hazardous/Classified Locations (NEC/CEC IECEx/ATEX), including Class I, Division 2; Zone 2 (and Zone 21 per IECEx/ATEX). It also carries a NEMA 4X enclosure and IP66 ingress protection, suitable for chemical plants, refineries, and other demanding settings.
Yes, the VMVL fixture is equipped with a dimmable driver for adjustable light levels. This enables scene-setting and energy optimization across different tasks and shift patterns, improving safety and reducing energy costs without sacrificing reliability in hazardous locations.
The VMVL-5-W-2A-R3-G-UNV1-TB6 delivers 5000 lumens at approximately 127 lm/W, with a warm white color temperature. It operates at 45W and provides Type III optical distribution for controlled perimeter illumination suitable for industrial and hazardous-area applications.
Pendant mounting with a 3/4" trade size and a 6-pole terminal block streamlines wiring and retrofits. The rugged die-cast aluminum housing, glass lens, and wire guard resist corrosion and impact, reducing maintenance cycles and downtime in harsh environments such as refineries, chemical plants, and offshore facilities.
