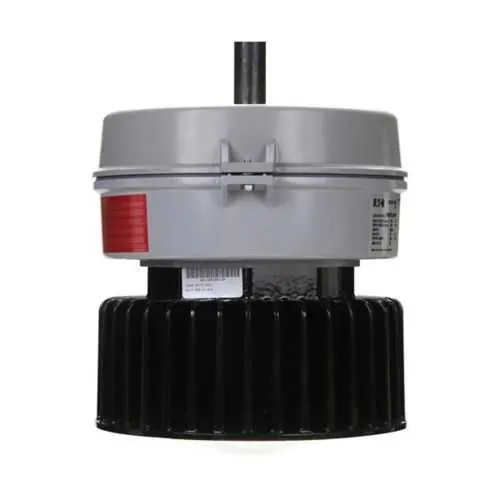

Eaton Crouse-Hinds VMVL-5-W-3A-R1-UNV1 LED light - Hazardous

Part Number: VMVL-5-W-3A-R1-UNV1
VMVL-5-W-3A-R1-UNV1
Manufacturer
Eaton Crouse-Hinds
Part number
VMVL-5-W-3A-R1-UNV1
Category

Quick Summary

The Eaton Crouse-Hinds VMVL-5-W-3A-R1-UNV1 LED light fixture delivers hazardous-location illumination for industrial facilities, including chemical plants, refineries, and offshore installations. Maintenance downtime and safety incidents spike when lighting isn’t rated for corrosive vapors or dust in demanding environments. This model carries NEC/CEC and IECEx/ATEX certifications, Zone 21, IP66 ingress protection, and a NEMA 4X enclosure for rugged compliance. With 5000 lumens at 127 lm/W and universal input from 100-277 VAC (and 127-250 VDC), it delivers energy efficiency across sites. The pendant mount and 1" trade size simplify retrofits, while the die-cast aluminum housing and glass lens endure harsh industrial conditions.

Product Information

Extended Description

VMVL-5-W-3A-R1-UNV1 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Champ VMVL LED fixture, Warm white, 100W HID equivalent, No guard, Glass lens, 5000 lumens, 127 lm/W, Die cast aluminum, Pendant mount, Type I, 1" trade size, 100-277 Vac, 127-250 Vdc, 45W
Product Name
Eaton Crouse-Hinds series Champ VMVL LED light fixture
Catalog Number
VMVL-5-W-3A-R1-UNV1
UPC
662276889101
Product Length/Depth
11.62 in
Product Height
11 in
Product Width
11.62 in
Product Weight
20.25 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC IEC IECEx/ATEX
NEC hazardous rating
Class I, Division 2 Class I, Zone 2 Class II, Division 1 Class III
IECEx/ATEX hazardous rating
Zone 21
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lumens
5000
Lumens per watt
127
Color temperature
Warm white
Mounting Method
Pendant
Trade size
1"
Optical distribution
Type I
Guard type
No guard
Voltage rating
100-277 Vac, 127-250 Vdc
Frequency rating
50/60 Hz
Wattage
45W
Dimming
Dimmable driver
Power factor
> 0.90
Equivalent luminaire
100W HID
Material
Die cast aluminum
Lens material
Heat and impact resistant glass
SP3D Design Package - Champ VMVL LED Hazardous Area Light Fixtures Crouse-Hinds series DLC approved lighting products Crouse-Hinds series DLC approved lighting products Crouse-Hinds series DLC approved lighting products Crouse-Hinds series Champ VMVL LED luminaires - 3,000 to 13,000 lumens catalog page IF 1888 - Champ VMVL and PVML Driver Replacement IF 1888 - Champ VMVL and PVML Driver Replacement Eaton Specification Sheet - VMVL-5-W-3A-R1-UNV1 Eaton Specification Sheet - VMVL-5-W-3A-R1-UNV1
High-lumen output of 5000 lumens at 127 lm/W reduces fixture count and maintenance in large industrial spaces, while maintaining safe visibility in hazardous areas. Application: refineries, chemical plants, and offshore facilities where durability matters. Dimmable driver with a power factor >0.90 improves energy management and supports modern lighting controls across variable-load circuits, helping facilities meet sustainability targets without sacrificing illumination. Universal voltage compatibility from 100-277 VAC and 127-250 VDC eliminates the need for multiple part numbers, streamlining procurement and spare-parts logistics across multinational sites. Rugged construction combines die-cast aluminum housing with a heat- and impact-resistant glass lens, delivering IP66 protection and a NEMA 4X enclosure for corrosion resistance and wash-down environments. Compliance and certification coverage under NEC/CEC and IECEx/ATEX, Zone 21, and hazardous-location ratings reduce risk during audits and support steady operation in Class I, Division 2 and Zone 2 environments.

Get a Quick Quote for a Eaton Crouse-Hinds VMVL-5-W-3A-R1-UNV1

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton Crouse-Hinds VMVL-5-W-3A-R1-UNV1? Enquire Now

FAQs

Power should be de-energized before installation. Mount the fixture using the pendant method with the 1" trade size provided. Ensure the mounting hardware and enclosure are rated for Class I, Division 2 or Zone 21 environments. Verify the voltage input is within 100-277 VAC or 127-250 VDC and connect to a dimmable driver if lighting controls are required. The IP66/NEMA 4X enclosure tolerates wash-down and corrosive atmospheres, simplifying field installation in harsh locations.
This luminaire delivers 5000 lumens with a luminous efficacy of 127 lm/W and consumes 45W. It operates at a frequency of 50/60 Hz and supports a wide voltage range of 100-277 VAC and 127-250 VDC. The unit has a power factor greater than 0.90, is dimmable, and is designed to replace a 100W HID equivalent, providing energy savings and consistent performance in hazardous locations.
Yes. VMVL-5-W-3A-R1-UNV1 is certified for hazardous locations under NEC/CEC and IECEx/ATEX, with Zone 21 rating and a NEMA 4X/IP66 enclosure. It is suitable for Zone 2/Division 2 environments and other classified locations, making it versatile for petrochemical plants, refineries, and offshore facilities.
The fixture adheres to NEC/CEC and IECEx/ATEX standards, with Zone 21 hazardous location rating, IP66 ingress protection, and NEMA 4X enclosure. It supports multiple installation types (pendant mounting) and uses a heat- and impact-resistant glass lens in a die-cast aluminum housing to meet harsh-environment requirements.
A long-life LED platform (5000 lumens, 127 lm/W) reduces maintenance frequency versus HID options, while a dimmable driver enables optimized energy use. Universal voltage support simplifies stocking across sites, lowering procurement costs. The rugged enclosure and certified protections reduce downtime and extend service intervals, delivering a favorable total cost of ownership for industrial operations.
