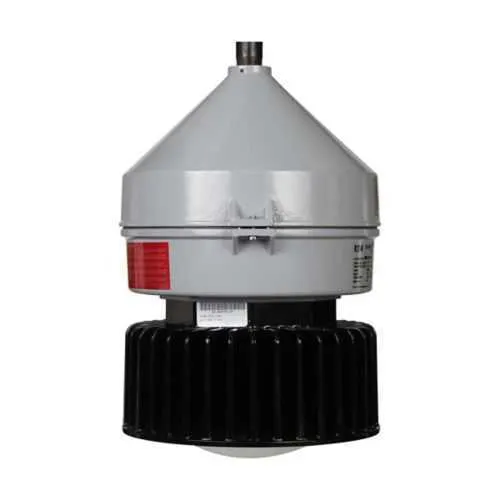

Eaton Crouse-Hinds VMVL-7-2B-UNV1-S903 LED light - IP66
Part Number: VMVL-7-2B-UNV1-S903
Manufacturer
Eaton Crouse-Hinds
Part number
VMVL-7-2B-UNV1-S903
Category
Quick Summary
VMVL LED light fixture provides high-efficiency, reliable illumination for hazardous locations in industrial facilities. This solution helps teams move away from costly HID systems while reducing maintenance cycles and total cost of ownership. Backed by NEC/CEC IECEx/ATEX compliance and Zone 21 capability, it meets stringent safety and performance standards. The design supports a wide voltage range and dimmable operation, delivering consistent light where it matters. For plants seeking better visibility, reduced energy use, and easier upgrades, this luminaire offers a clear path to safer, more productive operations in challenging environments.
Product Information
Extended Description
VMVL-7-2B-UNV1-S903 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Champ VMVL LED fixture, Cool white, 175W HID equivalent, No guard, Polycarbonate lens, 7000 lumens, 127 lm/W, Die cast aluminum, Cone pendant mount, Type V, 3/4" trade size, 100-277 Vac, 127-250 Vdc, 61W
Product Name
Eaton Crouse-Hinds series Champ VMVL LED light fixture
Catalog Number
VMVL-7-2B-UNV1-S903
UPC
662276904958
Product Length/Depth
11.62 in
Product Height
15.22 in
Product Width
11.62 in
Product Weight
23 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC IEC IECEx/ATEX
NEC hazardous rating
Class I, Division 2 Class I, Zone 2 Class II, Division 1 Class III
IECEx/ATEX hazardous rating
Zone 21
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lumens
7000
Lumens per watt
127
Color temperature
Cool white
Mounting Method
Cone pendant
Trade size
100-240 Vac, 127-250 Vdc
Optical distribution
Type V
Guard type
No guard
Voltage rating
100-277 Vac, 127-250 Vdc
Frequency rating
50/60 Hz
Wattage
61W
Dimming
Dimmable driver
Power factor
> 0.90
Equivalent luminaire
175W HID
Material
Die cast aluminum
Lens material
Polycarbonate
SP3D Design Package - Champ VMVL LED Hazardous Area Light Fixtures
Crouse-Hinds series DLC approved lighting products
Crouse-Hinds series DLC approved lighting products
Crouse-Hinds series DLC approved lighting products
Crouse-Hinds series Champ VMVL LED luminaires - 3,000 to 13,000 lumens catalog page
IF 1888 - Champ VMVL and PVML Driver Replacement
IF 1888 - Champ VMVL and PVML Driver Replacement
Champ VMV LED Hazardous Area
Champ VMV LED Hazardous Area
Lumens with efficiency drive: 7000 lumens at 61W (127 lm/W) deliver bright, uniform coverage. Business impact: lowers energy consumption versus legacy HID equivalents and reduces cooling load in hot industrial spaces. Application: large-process areas, tank farms, and loading bays that require high-output lighting with minimal power draw. Rugged enclosure and seal: die cast aluminum body with polycarbonate lens achieves IP66 and NEMA 4X protection. Business impact: increases uptime in dusty, wet, or vibration-prone zones and minimizes maintenance frequency. Application: chemical plants, oil & gas facilities, and maintenance-critical locations. Wide power capability and control: 100-277 Vac / 127-250 Vdc with a dimmable driver and PF >0.90. Business impact: simplifies integration with existing controls and reduces energy waste through profile-based lighting. Application: facility-wide retrofits and new builds with centralized lighting control. Easy installation: cone pendant mounting, 3/4" trade size compatibility, and a 23 lb form factor. Business impact: accelerates commissioning, reduces installation labor, and enables safer, accessible mounting in constrained spaces. Application: overhead aisles, mezzanines, and hazardous-area corridors. Compliance assurance: Zone 21, NEC/CEC IECEx/ATEX with hazardous-location ratings. Business impact: allows compliant operation in approved zones with reduced risk and faster permitting. Application: regulated environments where safety certifications drive project timelines.
Get a Quick Quote for a Eaton Crouse-Hinds VMVL-7-2B-UNV1-S903
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds VMVL-7-2B-UNV1-S903?
Enquire Now
FAQs
Install with a rated Cone pendant mounting and compatible 3/4" fittings. Connect to 100-277 Vac or 127-250 Vdc, ensuring supply matches the unit’s voltage range. The IP66 and NEMA 4X enclosure provide ingress protection in hazardous areas, while Zone 21 and Class I Division 2 ratings guide safe placement. Proper mounting hardware and adherence to local codes complete a compliant retrofit.
Key specs include 7000 lumens at 61W (≈127 lm/W), cool white color, PF >0.90, dimmable driver, and wide voltage 100-277 Vac / 127-250 Vdc at 50/60 Hz. It uses Type V optical distribution for broad coverage, a die-cast aluminum body, and a polycarbonate lens, delivering reliable performance in harsh environments.
Yes. The VMVL-7-2B-UNV1-S903 carries Zone 21 certification and NEC/CEC IECEx/ATEX compliance, along with IP66/NEMA 4X protection, making it suitable for hazardous-classified locations including chemical plants and oil/gas facilities where explosive atmospheres may be present.
It meets NEC/CEC IEC standards and IECEx/ATEX certifications, with hazardous ratings for Class I Division 2 and Zone 21. The IP66 ingress protection and NEMA 4X enclosure further confirm suitability for harsh environments, supporting regulatory compliance and safer permitting in hazardous locations.
Replacing a 175W HID-equivalent with a 61W LED luminaire reduces energy use significantly while maintaining luminous efficacy. The dimmable driver enables tailored illumination, cutting waste, and improving control integration. Long-term maintenance is reduced due to LED reliability and a rugged enclosure, delivering lower lifecycle costs and faster return on investment.
