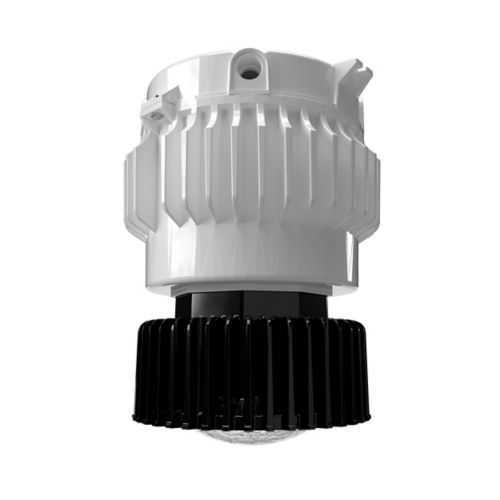

Eaton Crouse-Hinds VMVL-7-UNV1-EM1 LED - IP66
Part Number: VMVL-7-UNV1-EM1
Quick Summary
The VMVL-7-UNV1-EM1 is an LED light fixture with emergency back-up designed for hazardous-location industrial facilities. Engineers often contend with lights that fail during outages or in tough environments, creating downtime and safety risk. This luminaire meets IP66 protection, NEMA 4X enclosures, and NEC/CEC compliance for hazardous locations such as Class I, Division 2 and Zone 2. With 100–277 Vac input, 68 W, 7000 lumens, and 0–10 V dimming, it delivers reliable illumination while reducing energy use and maintenance needs. Designed for rapid installation and long service life, it supports compliant environments across mining, chemical processing, and oil & gas facilities. Its tempered glass lens, copper-free aluminum housing, and Type V optical distribution maximize durability and visibility in challenging conditions.
Product Information
Extended Description
VMVL-7-UNV1-EM1 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Champ VMVL LED light fixture with emergency back-up, Cool white, 0-10V dimming, No guard, Tempered glass lens, 7000 lumens, 126 lm/W, Copper-free aluminum, No mounting module, Type V, 100-277 Vac, 68W
Product Name
Eaton Crouse-Hinds series Champ VMVL LED light fixture with emergency back-up
Catalog Number
VMVL-7-UNV1-EM1
UPC
662276957763
Product Length/Depth
13.13 in
Product Height
15.68 in
Product Width
12.75 in
Product Weight
32.7 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class I, Zone 2 Class II, Division 1 Class III
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lumens
7000
Lumens per watt
126
Color temperature
Cool white
Mounting Method
No mounting module
Optical distribution
Type V
Guard type
No guard
Voltage rating
100-277 Vac
Material
Cast copper-free aluminum
Lens material
Tempered glass
Special features
Emergency driver system
Dimming
0-10 V
Frequency rating
50/60 Hz
Power factor
> 0.90
Wattage
68W
SP3D Design Package - Champ VMVL EM with Emergency Back-up Battery
Champ VMVL LED with Emergency Back-up Battery flyer
Crouse-Hinds series Champ VMVL LED with Emergency Back-up catalog page
IF 1916 - Champ VMVL Emergency LED Luminaires
IF 1916 - Champ VMVL Emergency LED Luminaires
Eaton Specification Sheet - VMVL-7-UNV1-EM1
Feature: Universal input voltage 100-277 Vac. Business Impact: Simplifies electrical design and reduces inventory across sites with different power standards. Application: Ideal for global facilities or multi-site deployments requiring a single lighting solution. Feature: Emergency back-up driver system. Business Impact: Maintains illumination during power outages, improving safety and egress reliability. Application: Critical in process plants and refineries where uninterrupted lighting supports safe operations. Feature: IP66 ingress protection and NEMA 4X enclosure. Business Impact: Provides rugged protection against dust, water, and corrosive environments, lowering maintenance cycles. Application: Washdown areas and outdoor hazardous zones in chemical processing or oil & gas. Feature: High-output, energy-efficient optics (7000 lumens at 126 lm/W). Business Impact: Reduces fixture count and energy costs while delivering consistent visibility. Application: Large-area hazard zones and production floors requiring bright, uniform illumination. Feature: Tempered glass lens, copper-free aluminum housing, Type V distribution. Business Impact: Enhances durability and corrosion resistance with low maintenance. Application: Long-life operation in demanding environments, including mining and chemical plants.
Get a Quick Quote for a Eaton Crouse-Hinds VMVL-7-UNV1-EM1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds VMVL-7-UNV1-EM1?
Enquire Now
FAQs
The VMVL-7-UNV1-EM1 is designed without a mounting module, so installation requires suitable mounting hardware compatible with Type V distribution and the fixture’s NEMA 4X/IP66 enclosure. Plan for secure mounting in Class I Division 2 or Zone 2 areas, ensuring proper wiring, strain relief, and field-verified ingress protection during commissioning.
The emergency driver system provides illumination during power outages, reducing downtime and supporting safe egress. This capability lowers emergency response time and minimizes maintenance cycles by eliminating the need for separate standby lighting in many hazardous-location applications. Regular testing and battery subsystem checks per manufacturer guidelines ensure ongoing performance.
Yes. The fixture is rated for Hazardous/Classified Locations with NEC/CEC compliance, including Class I Division 2 and Zone 2. Its IP66/NEMA 4X enclosure, tempered glass lens, and copper-free aluminum housing are designed to withstand harsh industrial environments encountered in chemical plants, refineries, and mining operations.
Key specs include 7000 lumens at 126 lm/W, 68W consumption, 100–277 Vac input, 50/60 Hz, and 0–10 V dimming. This combination delivers bright, consistent light while optimizing energy usage and reducing overall operating costs. The high efficacy supports fewer fixtures per area while meeting safety and visibility requirements.
A range of resources is available, including SP3D design packages, installation sheets, product flyers, and catalog pages. The Eaton Specification Sheet VMVL-7-UNV1-EM1, installation instructions, and a dedicated HazelLoc literature set help with compliance, installation planning, and ROI evaluation for hazardous-location projects.
