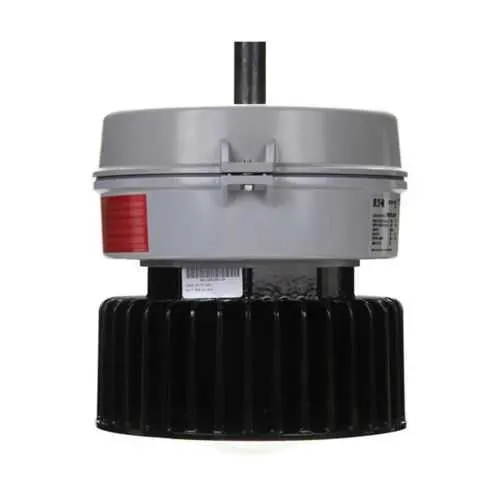

Eaton Crouse-Hinds VMVL-7-W-2A-G-UNV1-S891 LED Hazardous Area Light - IP66/NEMA 4X

Part Number: VMVL-7-W-2A-G-UNV1-S891
VMVL-7-W-2A-G-UNV1-S891
Manufacturer
Eaton Crouse-Hinds
Part number
VMVL-7-W-2A-G-UNV1-S891
Category

Quick Summary

VMVL-7-W-2A-G-UNV1-S891 LED Hazardous Area Light provides reliable illumination for Class I hazardous locations. In harsh environments, outdated HID fixtures erode uptime and inflate maintenance costs. It carries NEC/CEC IECEx/ATEX certifications, Zone 21 approval, IP66 ingress protection, and a NEMA 4X enclosure for rugged reliability. With universal voltage range and a dimmable LED driver, it delivers energy efficiency and lower total cost of ownership for industrial facilities.

Product Information

Extended Description

VMVL-7-W-2A-G-UNV1-S891 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Champ VMVL LED fixture, Warm white, 175W HID equivalent, Wire guard, Diffused glass lens, 7000 lumens, 127 lm/W, Die cast aluminum, Pendant mount, Type V, 3/4" trade size, 100-277 Vac, 127-250 Vdc, 61W
Product Name
Eaton Crouse-Hinds series Champ VMVL LED light fixture
Catalog Number
VMVL-7-W-2A-G-UNV1-S891
UPC
662276889118
Product Length/Depth
11.62 in
Product Height
11 in
Product Width
11.62 in
Product Weight
20.25 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC IEC IECEx/ATEX
NEC hazardous rating
Class I, Division 2 Class I, Zone 2 Class II, Division 1 Class III
IECEx/ATEX hazardous rating
Zone 21
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lumens
7000
Lumens per watt
127
Color temperature
Warm white
Mounting Method
Pendant
Trade size
100-240 Vac, 127-250 Vdc
Optical distribution
Type V
Guard type
Wire
Voltage rating
100-277 Vac, 127-250 Vdc
Frequency rating
50/60 Hz
Wattage
61W
Dimming
Dimmable driver
Power factor
> 0.90
Equivalent luminaire
175W HID
Material
Die cast aluminum
Lens material
Diffused Glass
SP3D Design Package - Champ VMVL LED Hazardous Area Light Fixtures Crouse-Hinds series Champ VMVL LED Luminaires - 3,000 to 13,000 lumens brochure Crouse-Hinds series Champ VMVL LED Luminaires - 3,000 to 13,000 lumens brochure Crouse-Hinds series Champ VMVL LED Luminaires - 3,000 to 13,000 lumens brochure Crouse-Hinds series Champ VMVL LED luminaires - 3,000 to 13,000 lumens catalog page IF 1888 - Champ VMVL and PVML Driver Replacement IF 1888 - Champ VMVL and PVML Driver Replacement Eaton Specification Sheet - VMVL-7-W-2A-G-UNV1-S891 Eaton Specification Sheet - VMVL-7-W-2A-G-UNV1-S891
The VMVL LED luminaire delivers high output with efficiency that translates to real savings: 7000 lumens at 61W yields about 127 lumens per watt, offering a substantial reduction in energy use versus traditional HID equivalents while maintaining superior illumination. The dimmable driver and universal voltage 100-277 Vac / 127-250 Vdc support flexible control strategies and regional power conditions, enabling optimized task lighting without overconsumption. Built to withstand harsh environments, the die cast aluminum housing, diffused glass lens, and wire guard protect against impacts, washdowns, and corrosive conditions, reducing maintenance incidence and replacement costs. The Type V optical distribution focuses light where it’s needed, enhancing visibility and safety in hazardous areas. Pendant mounting and a 3/4 inch trade size streamline installation alongside existing systems, while IP66 and NEMA 4X ratings offer robust ingress protection and enclosure reliability. These features collectively improve uptime, lower lifecycle costs, and ensure regulatory compliance for industries such as chemical processing, oil and gas, and mining.

Get a Quick Quote for a Eaton Crouse-Hinds VMVL-7-W-2A-G-UNV1-S891

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton Crouse-Hinds VMVL-7-W-2A-G-UNV1-S891? Enquire Now

FAQs

VMVL-7-W-2A-G-UNV1-S891 uses pendant mounting with a 3/4 inch trade size and Type V optical distribution to suit long runs and high bay spacing. The fixture is designed for easy integration with existing pendants and mounting hardware, reducing installation time and enabling rapid deployment in hazardous areas.
The luminaire is certified for NEC/CEC IECEx/ATEX compliance with hazardous location ratings including Class I Division 2, Zone 2, Class II Division 1, Class III, and Zone 21 per IECEx/ATEX. It carries IP66 ingress protection and a NEMA 4X enclosure, ensuring rugged protection in harsh environments.
The fixture operates across a universal voltage range of 100-277 Vac and 127-250 Vdc, at 50/60 Hz. It consumes 61W and delivers 7000 lumens (about 127 lumens per watt) with a dimmable driver to support energy management and task-specific lighting needs.
Yes. It is designed for hazardous locations with IP66 ingress protection and a NEMA 4X rated enclosure, suitable for dust, water ingress, and corrosive environments common in chemical and petrochemical facilities, offshore platforms, and mining operations.
The LED luminaire replaces 175W HID equivalents with 61W, delivering significant energy savings and reduced heat. Its long life and dimmable driver lower maintenance intervals, minimize downtime, and improve uptime metrics, resulting in a lower total cost of ownership for hazardous-area lighting projects.
