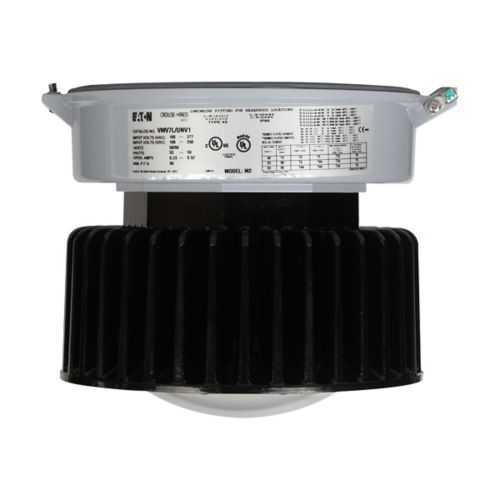

Eaton Crouse-Hinds VMVL-7-W-UNV1-S891 LED Light - IP66
Part Number: VMVL-7-W-UNV1-S891
Manufacturer
Eaton Crouse-Hinds
Part number
VMVL-7-W-UNV1-S891
Category
Quick Summary
The Eaton Crouse-Hinds VMVL-7-W-UNV1-S891 LED light fixture provides hazardous-location illumination for industrial plants and refineries. It addresses voltage compatibility and rugged environment demands, reducing parts diversity and maintenance complexity for uptime and reliability across multiple sites. Key certifications include Hazardous/Classified Locations, IP66 ingress protection, and NEMA 4X, ensuring safe operation in corrosive, cluttered industrial spaces. As a versatile VMVL LED luminaire, it supports efficient hazardous-area lighting while simplifying installation, stock management, and long-term lifecycle costs for facilities. Designed for universal voltage 100-277 Vac and 127-250 Vdc, it reduces transformer hardware needs and enables fast field retrofits across disparate facilities. With 7000 lumens, 127 lm/W, diffused glass lens, and a die-cast aluminum body, it delivers durable, bright illumination with low total cost of ownership.
Product Information
Extended Description
VMVL-7-W-UNV1-S891 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Champ VMVL LED fixture, Warm white, 175W HID equivalent, No guard, Diffused glass lens, 7000 lumens, 127 lm/W, Die cast aluminum, No mounting module, Type V, 100-277 Vac, 127-250 Vdc, 61W
Product Name
Eaton Crouse-Hinds series Champ VMVL LED light fixture
Catalog Number
VMVL-7-W-UNV1-S891
UPC
662276906358
Product Length/Depth
13 in
Product Height
13.13 in
Product Width
12.75 in
Product Weight
20.8 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC IEC IECEx/ATEX
NEC hazardous rating
Class I, Division 2 Class I, Zone 2 Class II, Division 1 Class III
IECEx/ATEX hazardous rating
Zone 21
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lumens
7000
Lumens per watt
127
Color temperature
Warm white
Mounting Method
No mounting module
Optical distribution
Type V
Guard type
No guard
Voltage rating
100-277 Vac, 127-250 Vdc
Frequency rating
50/60 Hz
Wattage
61W
Dimming
Dimmable driver
Power factor
> 0.90
Equivalent luminaire
175W HID
Material
Die cast aluminum
Lens material
Diffused Glass
SP3D Design Package - Champ VMVL LED Hazardous Area Light Fixtures
Crouse-Hinds series Champ VMVL LED Luminaires - 3,000 to 13,000 lumens brochure
Crouse-Hinds series Champ VMVL LED Luminaires - 3,000 to 13,000 lumens brochure
Crouse-Hinds series Champ VMVL LED Luminaires - 3,000 to 13,000 lumens brochure
Crouse-Hinds series Champ VMVL LED luminaires - 3,000 to 13,000 lumens catalog page
IF 1888 - Champ VMVL and PVML Driver Replacement
IF 1888 - Champ VMVL and PVML Driver Replacement
Eaton Specification Sheet - VMVL-7-W-UNV1-S891
Eaton Specification Sheet - VMVL-7-W-UNV1-S891
Feature → Business Impact → Application: Universal voltage range 100-277 Vac / 127-250 Vdc eliminates the need for multiple transformers and simplifies field retrofits, reducing capital expense and maintenance complexity across multi-site operations; Application: hazardous-location facilities where voltage flexibility is essential. Feature → 7000 lumen output with 127 lm/W efficacy delivers high-quality illumination that improves worker safety and process visibility; Business Impact: lower energy use per lumen and better ROI on lighting projects; Application: chemical plants and refineries requiring reliable, bright light. Feature → IP66 ingress protection and NEMA 4X enclosure provide rugged resilience in harsh environments; Business Impact: reduced downtime and corrosion resistance; Application: outdoor, wet, and dusty industrial spaces. Feature → Diffused glass lens and die-cast aluminum housing offer durability and optical performance; Business Impact: longer service life, lower maintenance cycles, and consistent light distribution; Application: areas with frequent cleaning and exposure to chemicals. Feature → Dimmable driver and high power factor >0.90 enable precise lighting control and energy efficiency; Business Impact: reduced peak demand and improved lighting quality; Application: production floors and hazardous-area zones needing adjustable illumination levels. Feature → Type V optical distribution ensures uniform light spread in wide or rectangular layouts; Business Impact: fewer shadows and improved coverage; Application: large work cells and equipment corridors. Feature → 61W consumption with HID-equivalent brightness provides immediate energy savings and lifecycle cost reductions; Business Impact: lower operating costs over the luminaire’s life; Application: retrofits replacing 175W HID systems in hazardous locations.
Get a Quick Quote for a Eaton Crouse-Hinds VMVL-7-W-UNV1-S891
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds VMVL-7-W-UNV1-S891?
Enquire Now
FAQs
VMVL-7-W-UNV1-S891 is designed for Hazardous/Classified Locations with IP66 protection and NEMA 4X enclosure, enabling safe operation in Class I, Division 2 and Zone 2 environments. It supports universal voltage (100-277 Vac, 127-250 Vdc), dimmable drivers, and Type V optical distribution, simplifying field retrofits and reducing the need for multiple supply modules.
The fixture carries NEC/CEC and IECEx/ATEX compliance with Zone 21/2 ratings, along with Hazardous/Classified Location approvals, IP66 ingress protection, and NEMA 4X. These certifications ensure safe operation in hazardous environments, support regulatory alignment, and help with insurance and procurement requirements for compliant facilities.
Yes, VMVL-7-W-UNV1-S891 uses a dimmable driver and offers a high power factor (>0.90) for efficient control. Dimming enables precise light levels to meet process or safety requirements while reducing energy consumption and improving visibility in variable tasks or shifts.
The luminaire delivers 7000 lumens with an efficacy of 127 lm/W, providing bright, uniform illumination. This performance supports higher visibility, safer work environments, and reduced fixture counts for large industrial spaces requiring reliable hazardous-area lighting.
VMVL-7-W-UNV1-S891 is the LED equivalent to a 175W HID system, delivering comparable or superior brightness at lower energy consumption (61W) and with longer lifecycle. Its rugged build, IP66/NEMA 4X protection, and universal voltage compatibility reduce maintenance, retrofit costs, and downtime in hazardous-location facilities.
