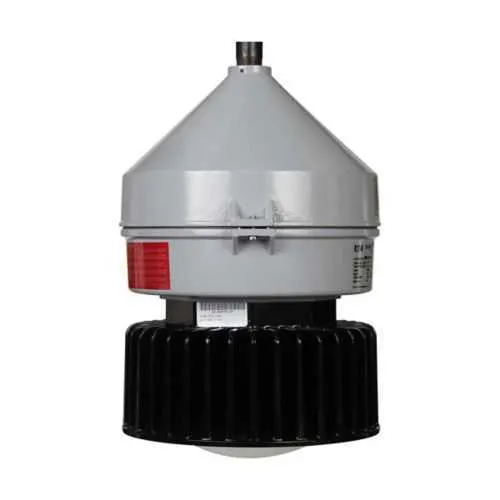

Eaton Crouse-Hinds VMVL-9-2B-UNV1 LED Light Fixture - IP66
Part Number: VMVL-9-2B-UNV1
Quick Summary
VMVL LED light fixture delivers high-output illumination for hazardous-area facilities in industrial settings. This rugged luminaire addresses common maintenance challenges by delivering long life and reliable performance in harsh environments. Operators frequently contend with luminaires that fail in corrosive or explosive-prone zones, driving downtime and costly repairs. The VMVL aligns with NEC/CEC and IECEx/ATEX certifications, Zone 21 ratings, IP66 protection, and a robust NEMA 4X enclosure, ensuring safe operation in demanding locations. With an energy-efficient LED platform and a dimmable driver, it offers meaningful operating cost reductions. For projects prioritizing safety, uptime, and regulatory compliance in hazardous locations, this fixture provides tangible value and a clear ROI pathway.
Product Information
Extended Description
VMVL-9-2B-UNV1 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Champ VMVL LED fixture, Cool white, 250W HID equivalent, No guard, Glass lens, 9000 lumens, 126 lm/W, Die cast aluminum, Cone pendant mount, Type V, 3/4" trade size, 100-277 Vac, 127-250 Vdc, 76W
Product Name
Eaton Crouse-Hinds series Champ VMVL LED light fixture
Catalog Number
VMVL-9-2B-UNV1
UPC
662276970809
Product Length/Depth
11.62 in
Product Height
15.22 in
Product Width
11.62 in
Product Weight
23.2 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC IEC IECEx/ATEX
NEC hazardous rating
Class I, Division 2 Class I, Zone 2 Class II, Division 1 Class III
IECEx/ATEX hazardous rating
Zone 21
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lumens
9000
Lumens per watt
126
Color temperature
Cool white
Mounting Method
Cone pendant
Trade size
100-240 Vac, 127-250 Vdc
Optical distribution
Type V
Guard type
No guard
Voltage rating
100-277 Vac, 127-250 Vdc
Frequency rating
50/60 Hz
Wattage
76W
Dimming
Dimmable driver
Power factor
> 0.90
Equivalent luminaire
250W HID
Material
Die cast aluminum
Lens material
Heat and impact resistant glass
SP3D Design Package - Champ VMVL LED Hazardous Area Light Fixtures
Crouse-Hinds series Champ VMVL LED Luminaires - 3,000 to 13,000 lumens brochure
Crouse-Hinds series Champ VMVL LED Luminaires - 3,000 to 13,000 lumens brochure
Crouse-Hinds series Champ VMVL LED Luminaires - 3,000 to 13,000 lumens brochure
Crouse-Hinds series Champ VMVL LED luminaires - 3,000 to 13,000 lumens catalog page
IF 1888 - Champ VMVL and PVML Driver Replacement
IF 1888 - Champ VMVL and PVML Driver Replacement
Champ VMV LED Hazardous Area
Champ VMV LED Hazardous Area
Feature: High-output LED performance with 9000 lumens at 126 lm/W. Business Impact: Delivers brighter, more efficient illumination, reducing energy use and lowering operating costs. Application: Ideal for long-aisle industrial spaces and high-bay environments requiring consistent visibility. Feature: Die-cast aluminum housing with IP66 and NEMA 4X protection. Business Impact: Superior protection against dust, water, and corrosion, extending service life in harsh facilities. Application: Outdoor and harsh indoor environments such as chemical plants and offshore locations. Feature: Cone pendant mounting and 3/4" trade size compatibility. Business Impact: Flexible, fast installation with minimal support hardware, reducing project lead times. Application: Retrofit and new builds in ceilings with standard pendants. Feature: Glass lens with heat and impact resistance. Business Impact: Maintains optical performance under vibration and impact, lowering maintenance calls. Application: Environments with heavy equipment and particulate exposure. Feature: Dimmable driver with PF > 0.90. Business Impact: Enables precise lighting control, energy savings, and reduced glare, improving worker comfort. Application: Systems with building management or site-wide dimming schemes. Feature: Hazardous-location certifications (NEC/CEC IECEx/ATEX Zone 21, Class I/II, Division 2). Business Impact: Compliance assurance and safer deployment in classified locations. Application: Oil, gas, chemical, and other hazardous industries requiring rigorous standards.
Get a Quick Quote for a Eaton Crouse-Hinds VMVL-9-2B-UNV1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds VMVL-9-2B-UNV1?
Enquire Now
FAQs
The VMVL uses a cone pendant mounting and supports standard 3/4 inch trade size conduits. This design enables quick field adjustments and simple retrofits. The Type V optical distribution ensures uniform illumination in long aisles, containers, and processing areas, while maintaining compatibility with typical ceiling heights in industrial plants.
The luminaire operates at 76 watts delivering 9000 lumens with a color temperature of cool white, achieving approximately 126 lumens per watt. It supports 100-277 VAC or 127-250 VDC with a dimmable driver and a power factor greater than 0.90, across 50/60 Hz for global compatibility.
Yes. It carries NEC/CEC and IECEx/ATEX certifications with hazardous-location ratings including Class I, Division 2 and Zone 21. The fixture also features a NEMA 4X enclosure and IP66 protection, making it appropriate for demanding hazardous locations such as chemical plants, oil and gas facilities, and other confined spaces.
The VMVL-9-2B-UNV1 is certified to NEC/CEC and IECEx/ATEX standards, supports Zone 21 and Class I/II hazardous locations, and provides IP66 ingress protection with a NEMA 4X enclosure. These certifications assure safe operation in classified environments and support regulatory compliance for industrial installations.
Benefiting from long LED life and a dimmable driver, the VMVL reduces maintenance visits and downtime. Its high efficiency lowers energy costs over the luminaire’s life, while rugged housing and glass lens resist wear in harsh environments. Overall, operators typically see lower total cost of ownership and improved uptime in hazardous areas.
