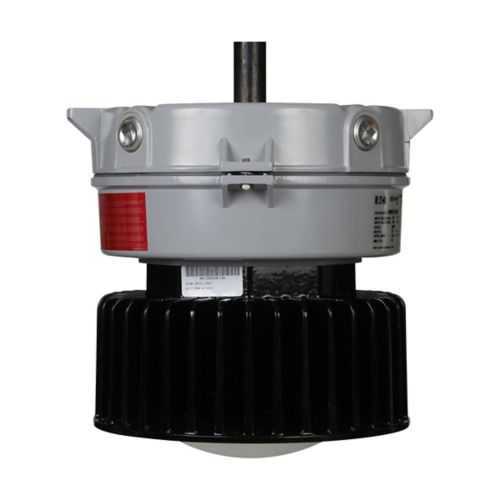

Eaton Crouse-Hinds VMVL-9-2C-G-UNV1-S831-S891 LED Light - IP66

Part Number: VMVL-9-2C-G-UNV1-S831-S891
VMVL-9-2C-G-UNV1-S831-S891
Manufacturer
Eaton Crouse-Hinds
Part number
VMVL-9-2C-G-UNV1-S831-S891
Category

Quick Summary

Eaton Crouse-Hinds VMVL LED light fixture delivers reliable hazardous-location illumination for industrial facilities. In hazardous plants, maintenance downtime and lighting failures can halt production, so you need a tough, dependable solution. This luminaire carries NEC/CEC IECEx/ATEX certifications, Zone 21 rating, IP66 protection, and a NEMA 4X enclosure to meet rigorous safety standards. Coupled with a dimmable driver and broad voltage compatibility, it supports efficient retrofits and lower operating costs in harsh environments. The VMVL is designed for long life in demanding settings, reducing maintenance cycles and ensuring consistent visibility. For engineers and procurement teams, it combines safety, performance, and cost efficiency in one rugged package.

Product Information

Extended Description

VMVL-9-2C-G-UNV1-S831-S891 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Champ VMVL LED fixture, Cool white, 250W HID equivalent, Wire guard, Diffused glass lens, 9000 lumens, 126 lm/W, Die cast alum, Ceiling mount, Type V, Safety cable, 3/4" trade size, 100-277 Vac, 127-250 Vdc, 76W
Product Name
Eaton Crouse-Hinds series Champ VMVL LED light fixture
Catalog Number
VMVL-9-2C-G-UNV1-S831-S891
UPC
662276914117
Product Length/Depth
11.83 in
Product Height
11.03 in
Product Width
10.77 in
Product Weight
21.95 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC IEC IECEx/ATEX
NEC hazardous rating
Class I, Division 2 Class I, Zone 2 Class II, Division 1 Class III
IECEx/ATEX hazardous rating
Zone 21
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lumens
9000
Lumens per watt
126
Color temperature
Cool white
Mounting Method
Ceiling
Trade size
100-240 Vac, 127-250 Vdc
Optical distribution
Type V
Guard type
Wire
Voltage rating
100-277 Vac, 127-250 Vdc
Frequency rating
50/60 Hz
Wattage
76W
Dimming
Dimmable driver
Power factor
> 0.90
Equivalent luminaire
250W HID
Material
Die cast aluminum
Lens material
Diffused Glass
Special features
Safety cable
SP3D Design Package - Champ VMVL LED Hazardous Area Light Fixtures Crouse-Hinds series DLC approved lighting products Crouse-Hinds series DLC approved lighting products Crouse-Hinds series DLC approved lighting products Crouse-Hinds series Champ VMVL LED luminaires - 3,000 to 13,000 lumens catalog page IF 1888 - Champ VMVL and PVML Driver Replacement IF 1888 - Champ VMVL and PVML Driver Replacement Champ VMV LED Hazardous Area Champ VMV LED Hazardous Area
Die-cast aluminum housing delivers rugged durability and IP66/NEMA 4X protection, guarding against dust, water, and corrosive splashes, which means longer service life in chemical plants, refineries, and offshore facilities, reducing maintenance interruptions in hazardous-location lighting. The 9000-lumen output with 126 lm/W and cool-white color provides high-output, energy-efficient illumination suitable for large industrial spaces, while a dimmable driver and wide voltage range simplify integration with controls and spare drives, with PF > 0.90 ensuring grid-friendly operation. Type V optical distribution and a diffused glass lens deliver uniform lighting across work areas, improving visibility and safety. Hazardous-location ratings—Class I Division 2; Zone 2; Class II Division 1; Class III; IECEx/ATEX Zone 21—support regulatory compliance and faster permit approvals. Installation is straightforward with ceiling mounting, 3/4" trade size, and a reliable safety cable design, reducing installation time in retrofit projects. DLC-approved lighting product documentation enhances procurement confidence and enables streamlined specification in controlled environments. Overall, the VMVL delivers reduced maintenance costs, energy efficiency, and safer operation in demanding industrial applications.

Get a Quick Quote for a Eaton Crouse-Hinds VMVL-9-2C-G-UNV1-S831-S891

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton Crouse-Hinds VMVL-9-2C-G-UNV1-S831-S891? Enquire Now

FAQs

The VMVL is designed for ceiling mounting with a 3/4" trade size and includes a safety-cable option. Its dimensions (length 11.83 in, width 10.77 in, height 11.03 in) and 21.95 lb weight support secure fitment in industrial ceilings. Use appropriate fasteners and follow enclosure and wiring guidelines for Class I, Division 2 or Zone 21 areas to maintain compliance.
Key specs include 76W power consumption, 9000 lumens with 126 lm/W, color temperature Cool White, PF > 0.90, 50/60 Hz, voltage rating 100-277 VAC or 127-250 VDC, and a dimmable driver for flexible control.
Yes. The VMVL carries NEC/CEC IECEx/ATEX certifications, NEC hazardous ratings including Class I Division 2 and Zone 2, and IECEx/ATEX Zone 21, making it appropriate for a wide range of hazardous-location applications.
The VMVL features IP66 ingress protection, a NEMA 4X enclosure, and hazardous-location certifications (NEC/CEC IECEx/ATEX; Zone 21). It is built for rugged environments with a die-cast aluminum housing and a diffused glass lens.
LED VMVL fixtures deliver longer life and lower maintenance, reducing lamp replacements and downtime. The high lumen output with energy-efficient operation (76W, 9000 lm) lowers energy costs, while dimming compatibility supports integration with controls and optimization of lighting levels for ROI in harsh industrial settings.
