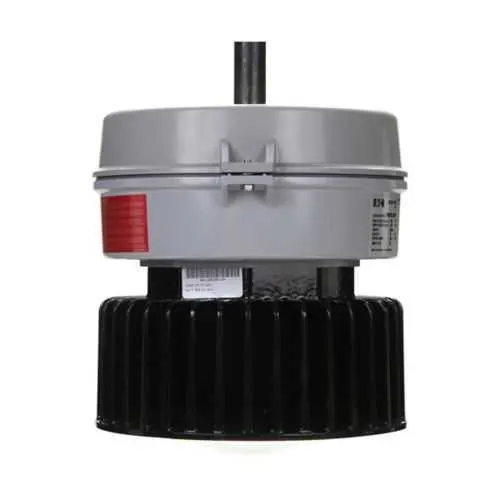

Eaton Crouse-Hinds VMVL-9-3A-G-UNV1-TB6 LED light fixture - IP66 Hazardous Location

Part Number: VMVL-9-3A-G-UNV1-TB6
VMVL-9-3A-G-UNV1-TB6
Manufacturer
Eaton Crouse-Hinds
Part number
VMVL-9-3A-G-UNV1-TB6
Category

Quick Summary

Eaton Crouse-Hinds VMVL-9-3A-G-UNV1-TB6 LED light fixture delivers rugged illumination for hazardous-area facilities. In harsh industrial environments, unreliable lighting can slow maintenance and obscure safety-critical work. This fixture meets NEC/CEC IEC, IECEx/ATEX Zone 21, IP66 housing, and NEMA 4X protection, providing compliance and resilience. Designed for pendant mounting and dimmable drivers, it offers Type V optics and high efficiency to boost energy performance and ease of retrofit in critical process areas. For engineers and maintenance teams, it translates to fewer outages and more predictable illumination across demanding plant spaces.

Product Information

Extended Description

VMVL-9-3A-G-UNV1-TB6 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Champ VMVL LED fixture, Cool white, 250W HID equivalent, Wire guard, Glass lens, 9000 lumens, 126 lm/W, Die cast alum, Pendant mount, Type V, 6-pole terminal block, 1" trade size, 100-277 Vac, 127-250 Vdc, 76W
Product Name
Eaton Crouse-Hinds series Champ VMVL LED light fixture
Catalog Number
VMVL-9-3A-G-UNV1-TB6
UPC
662276936447
Product Length/Depth
11.62 in
Product Height
11 in
Product Width
11.62 in
Product Weight
20.45 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC IEC IECEx/ATEX
NEC hazardous rating
Class I, Division 2 Class I, Zone 2 Class II, Division 1 Class III
IECEx/ATEX hazardous rating
Zone 21
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lumens
9000
Lumens per watt
126
Color temperature
Cool white
Mounting Method
Pendant
Trade size
1"
Optical distribution
Type V
Guard type
Wire
Voltage rating
100-277 Vac, 127-250 Vdc
Frequency rating
50/60 Hz
Wattage
76W
Dimming
Dimmable driver
Power factor
> 0.90
Equivalent luminaire
250W HID
Material
Die cast aluminum
Lens material
Heat and impact resistant glass
Special features
Six-pole terminal block
SP3D Design Package - Champ VMVL LED Hazardous Area Light Fixtures Crouse-Hinds series Champ VMVL LED Luminaires - 3,000 to 13,000 lumens brochure Crouse-Hinds series Champ VMVL LED Luminaires - 3,000 to 13,000 lumens brochure Crouse-Hinds series Champ VMVL LED Luminaires - 3,000 to 13,000 lumens brochure Crouse-Hinds series Champ VMVL LED luminaires - 3,000 to 13,000 lumens catalog page IF 1882 - Champ VMVL and PVML LED luminaires IF 1882 - Champ VMVL and PVML LED luminaires Champ VMV LED Hazardous Area Champ VMV LED Hazardous Area
Hazardous-location protection delivers reliable operation in Class I, Zone 2 and Zone 21 environments, with IP66 and NEMA 4X protection that reduce maintenance downtime and extend luminaire life in aggressive atmospheres. This improves safety and uptime in chemical plants, oil and gas facilities, and mining sites, while keeping installation straightforward with a pendant mount and 1 inch trade size. The high-durability die-cast aluminum housing, coupled with a heat and impact resistant glass lens and wire guard, ensures long service life where vibration and harsh conditions are common. The luminaire provides 9000 lumens at 126 lm/W from a 76W driver, offering HID-equivalent performance with significantly lower energy consumption and cooler operation, helping facilities meet energy-reduction targets and improve thermal management. Type V optical distribution delivers uniform area lighting, reducing hot spots and enhancing visibility for operators and inspectors.

Get a Quick Quote for a Eaton Crouse-Hinds VMVL-9-3A-G-UNV1-TB6

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton Crouse-Hinds VMVL-9-3A-G-UNV1-TB6? Enquire Now

FAQs

Begin with the pendant-mount configuration and ensure a proper 1 inch trade-size conduit fit. Use the six-pole terminal block for secure wiring and connect to a supply within the 100-277 Vac or 127-250 Vdc range. Follow installation sheets IF 1882 and related Eaton-Crouse-Hinds instructions to maintain IP66 and NEMA 4X integrity. Ensure all seals and guards are oriented for hazard zones and verify mounting stability before operation. The design supports easy retrofit in existing fixtures without compromising hazardous-location ratings.
The VMVL-9-3A-G-UNV1-TB6 delivers 9000 lumens with an efficiency of 126 lm/W, drawing only 76 watts. It operates on 50/60 Hz and features a dimmable driver with a power factor greater than 0.90. It is equivalent to a 250W HID in light output while offering cooler, more energy-efficient operation. The Type V optical distribution ensures uniform lighting over large work areas, and the pendant mount supports flexible installation in high-ceiling environments.
Yes. The VMVL is designed for hazardous and classified locations, with IECEx/ATEX Zone 21 certification and NEC/CEC compliance that include Class I, Division 2 and Zone 2 ratings, along with IP66 and NEMA 4X protection. This makes it appropriate for offshore platforms, refineries, chemical processing facilities, and other challenging environments where safe, reliable lighting is required.
VMVL uses a long-life LED platform with a durable die-cast aluminum housing and heat-resistant glass, reducing lamp replacements and associated downtime. The IP66/NEMA 4X enclosure protects electrical components from dust, water, and corrosive exposure, while the dimmable driver enables optimized energy use and thermal management. This combination lowers total cost of ownership by decreasing maintenance frequency and extending service intervals in hazardous locations.
Replacing a 250W HID equivalent with a 76W VMVL yields substantial energy savings (roughly 70% lower power draw for the same light output). Coupled with reduced cooling load and lower maintenance due to LED longevity, facilities can see faster payback times, especially in high-hour, continuous-operation environments. ROI will vary with run hours, energy costs, and retrofit scope, but the technology generally delivers meaningful total cost of ownership improvements.
