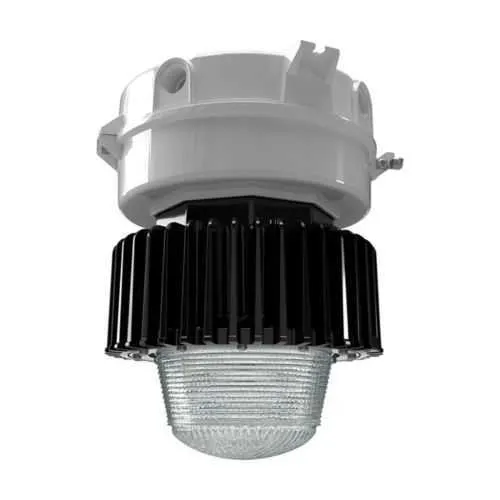

Eaton Crouse-Hinds VMVL-9-UNV1-UPLT LED Light - IP66
Part Number: VMVL-9-UNV1-UPLT
Quick Summary
The VMVL-9-UNV1-UPLT LED light fixture from Eaton Crouse-Hinds delivers high-output illumination for hazardous locations. Maintaining reliable lighting in explosive or classified areas is costly and complex, often hampered by durability gaps or limited voltage options. This luminaire carries IECEx/ATEX Zone 21, NEC/CEC Class I, Division 2, and IP66/NEMA 4X certifications to ensure safe operation and regulatory compliance. With a dimmable driver, a 100–277 VAC / 127–250 VDC rating, and a 9000-lumen output, it reduces energy use, maintenance, and downtime while offering a versatile, single-solution approach. Its rugged die-cast aluminum housing and heat-resistant glass lens further boost long-life performance in demanding environments.
Product Information
Extended Description
VMVL-9-UNV1-UPLT Eaton Crouse-Hinds: Eaton Crouse-Hinds series Champ VMVL LED light fixture, Cool white, 250W HID equiv, No guard, Heat and impact resistant glass lens, 9000 lm, 126 lm/W, Die cast alum, No mtg mod, Type V, Uplight refractor lens, 100-277 Vac, 127-250 Vdc, 73W
Product Name
Eaton Crouse-Hinds series Champ VMVL LED light fixture
Catalog Number
VMVL-9-UNV1-UPLT
UPC
662276977853
Product Length/Depth
12 in
Product Height
16 in
Product Width
12 in
Product Weight
26 lb
Area classification
Hazardous/Classified Locations
Standards type
IECEx/ATEX NEC/CEC IEC
NEC hazardous rating
Class III Class I, Division 2 Class I, Zone 2 Class II, Division 1
IECEx/ATEX hazardous rating
Zone 21
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lumens
9000
Lumens per watt
126
Color temperature
Cool white
Mounting Method
No mounting module
Optical distribution
Type V
Guard type
No guard
Voltage rating
100-277 Vac, 127-250 Vdc
Frequency rating
50/60 Hz
Wattage
73 W
Dimming
Dimmable driver
Power factor
> 0.90
Equivalent luminaire
250W HID
Material
Die cast aluminum
Lens material
Heat and impact resistant glass
Special features
Uplight refractor lens
SP3D Design Package - Champ VMVL LED Hazardous Area Light Fixtures
Crouse-Hinds series Champ VMVL LED Luminaires - 3,000 to 13,000 lumens brochure
Crouse-Hinds series Champ VMVL LED Luminaires - 3,000 to 13,000 lumens brochure
Crouse-Hinds series Champ VMVL LED Luminaires - 3,000 to 13,000 lumens brochure
Crouse-Hinds series Champ VMVL LED Luminaires - 3,000 to 13,000 lumens brochure
IF 1888 - Champ VMVL and PVML Driver Replacement
IF 1888 - Champ VMVL and PVML Driver Replacement
Eaton Specification Sheet - VMVL-9-UNV1-UPLT
Eaton Specification Sheet - VMVL-9-UNV1-UPLT
Feature: High lumen output of 9000 lm with 126 lm/W efficiency. Business impact: Delivers bright, uniform illumination across large hazardous-area facilities, reducing number of fittings and maintenance visits. Application: Chemical plants and oil/gas sites requiring reliable uplight performance. Feature: 100-277 VAC / 127-250 VDC input range. Business impact: Maximizes installation flexibility and reduces spare part inventory. Application: Retrofit projects and new builds in mixed electrical environments. Feature: Dimmable driver. Business impact: Enables energy savings and tuned illumination for task demands, lowering operating costs. Application: Variable process areas and shift-based operations. Feature: Type V optical distribution with uplight refractor. Business impact: Improves glare control and work area visibility, enhancing safety and productivity. Application: Plants with tallceiling layouts and overhead inspection zones. Feature: Die-cast aluminum housing and heat/impact resistant glass. Business impact: Longevity in harsh environments, lowering lifecycle costs. Application: Hazardous locations with high ambient temperatures or physical exposure. Feature: IP66 and NEMA 4X enclosure ratings. Business impact: Dust-tight and water-resistant protection, supporting uptime in challenging conditions. Application: Outdoor-rated and wet/dust-prone industrial areas. Feature: Area classifications and hazardous ratings (Zone 21, Zone 2; Class I/II, Division 2). Business impact: Compliance with global safety standards, reducing risk and certification overhead. Application: Plants requiring regulatory alignment for hazardous areas.
Get a Quick Quote for a Eaton Crouse-Hinds VMVL-9-UNV1-UPLT
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds VMVL-9-UNV1-UPLT?
Enquire Now
FAQs
VMVL-9-UNV1-UPLT is designed for Hazardous/Classified Locations with IECEx/ATEX Zone 21 and NEC/CEC classifications. It operates from 100-277 VAC or 127-250 VDC and uses a dimmable driver. Install in accordance with local electrical codes, ensure proper mounting module or adaptor per site requirement, and verify IP66/NEMA 4X protection for weather and dust resistance.
The luminaire supports 100-277 VAC and 127-250 VDC at 50/60 Hz, with a power draw of 73 W and a power factor > 0.90. It delivers 9000 lumens at 126 lm/W and uses a dimmable driver for flexible lighting control in variable workloads and shift patterns.
VMVL-9-UNV1-UPLT provides NEC hazardous ratings including Class I, Division 2 and Zone 2, along with Zone 21 under IECEx/ATEX. While it addresses many Division 2 requirements, for true Division 1 environments confirm site-specific compliance and consult the installation instructions to determine suitability and any additional protections.
The luminaire carries IECEx/ATEX Zone 21, NEC/CEC hazard ratings, IP66 ingress protection, and NEMA 4X enclosure rating. These certifications support safe operation in hazardous areas, outdoor exposure, and harsh industrial conditions while aligning with global regulatory standards.
Support resources include SP3D Design Package downloads, installation sheets IF 1888, and Eaton specification sheets. Use the 3D models for planning, refer to IF 1888 for driver replacement guidance, and consult the spec sheets for detailed electrical and mechanical data to aid procurement and installation.
