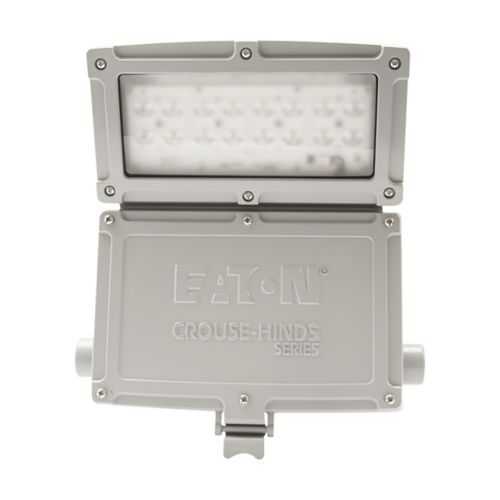

Eaton Crouse-Hinds WPMV3L-UNV34-S903D LED Wall Pack - IP66
Part Number: WPMV3L-UNV34-S903D
Manufacturer
Eaton Crouse-Hinds
Part number
WPMV3L-UNV34-S903D
Category
Quick Summary
The WPMV3L-UNV34-S903D LED wall pack provides high-efficiency exterior lighting for industrial walls and perimeters. Facilities often struggle with energy waste, frequent maintenance, and unreliable outdoor illumination; this unit addresses those pain points. It carries IP66 ingress protection, NEMA 4X enclosure, and NEC/CEC compliance to ensure dependable operation in harsh environments. As part of the Eaton Crouse-Hinds Champ family, it delivers durable outdoor industrial lighting with straightforward installation and proven lifecycle cost savings. OEMs and facilities managers benefit from reduced energy usage, simplified maintenance, and improved safety in exterior applications. Its dimmable driver supports smart controls and aligns with modern building automation strategies.
Product Information
Extended Description
WPMV3L-UNV34-S903D Eaton Crouse-Hinds: Eaton Crouse-Hinds series Champ WPMV LED wall pack, 0.09A, Cool white, Dimmable driver, 3/4" entry, 70W equiv, 60 Hz, Diffused polycarbonate lens, 3000 lumens, 111 lm/W, Die cast aluminum, Yoke mount, 7x6 distribution, 347-480 Vac, 30W
Product Name
Eaton Crouse-Hinds series Champ WPMV LED wall pack light fixture
Catalog Number
WPMV3L-UNV34-S903D
UPC
662276892439
Product Length/Depth
9.16 in
Product Height
12.76 in
Product Width
12.6 in
Product Weight
14 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
LED
Lumens
3000
Lumens per watt
111
Color temperature
Cool white
Optical distribution
7x6
Mounting Method
Yoke
Voltage rating
347-480 Vac
Frequency rating
60 Hz
Lens material
Diffused polycarbonate
Wattage
30W
Amperage Rating
0.09 A
Power factor
> 0.90
Dimming
Dimmable driver
Entry size
3/4"
Material
Die cast aluminum
Equivalent luminaire
70W
SP3D Design Package - Champ Pro WPMV LED Industrial Wallpack Light Fixtures
Crouse-Hinds series industrial LED lighting solutions
Crouse-Hinds series industrial LED lighting solutions
Crouse-Hinds series industrial LED lighting solutions
Crouse-Hinds series Champ WPMV LED catalog page
IF 1893 - Champ-Pak WPMVL LED Wall Pack
Eaton Specification Sheet - WPMV3L-UNV34-S903D
Feature: High-efficiency LED performance delivers 3000 lumens at 111 lm/W from a 30W driver. Business Impact: This lowers energy costs, reduces cooling loads, and extends the luminaire's service life in outdoor duty cycles. Application: Ideal for exterior walls, loading docks, and perimeter lighting on industrial facilities.Feature: Die-cast aluminum housing provides rugged durability with IP66 and NEMA 4X protection. Business Impact: Protects against dust, water ingress, and corrosive environments, limiting downtime and replacement costs. Application: Suitable for ordinary/non-hazardous locations in factories, warehouses, and outdoor yards.Feature: Diffused polycarbonate lens with a 7x6 optical distribution. Business Impact: Delivers uniform illumination with reduced glare, improving safety and visual performance. Application: Wall packs and exterior walls where consistent coverage is critical.Feature: Dimmable driver over a 347–480 VAC rating at 60 Hz. Business Impact: Enables dimming control and compatibility with building automation to cut energy use during low-occupancy periods. Application: Integrates with smart lighting schemes for industrial campuses and perimeter security.Feature: Yoke mounting and 3/4" entry for versatile installation. Business Impact: Shortens installation time and simplifies retrofits on existing structures. Application: Quick deployment on wall surfaces in manufacturing facilities and cold storage yards.
Get a Quick Quote for a Eaton Crouse-Hinds WPMV3L-UNV34-S903D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds WPMV3L-UNV34-S903D?
Enquire Now
FAQs
The WPMV3L-UNV34-S903D supports 347–480 VAC, operates at 60 Hz, and uses a 3/4 inch entry with a yoke mounting. Its dimmable driver enables integration with building automation systems. The fixture is designed for ordinary locations and features an IP66 rating and NEMA 4X enclosure for reliable outdoor service. Proper mounting on suitable structures minimizes vibration effects and extends life. Always confirm local code compliance (NEC/CEC) and ensure correct wiring in accordance with the installation sheet.
Key metrics include a 30W draw delivering 3000 lumens with an efficacy of 111 lm/W, a color temperature of cool white, and a power factor greater than 0.90. The unit consumes 0.09 A at rated voltage and operates at 347–480 VAC. With a diffused polycarbonate lens and 7x6 optical distribution, it provides wide, uniform coverage while minimizing glare and hotspots.
Best suited for exterior walls, loading docks, perimeter lighting, and industrial facility facades. Its IP66/NEMA 4X rating makes it ideal for dust, water spray, and harsh environments common in manufacturing plants, warehouses, and distribution centers. The yoke mount and 3/4" entry simplify retrofits and new installations on vertical surfaces.
The fixture complies with NEC/CEC standards for industrial lighting and is rated IP66 with a NEMA 4X enclosure for outdoor, non-hazardous locations. It is designed for ordinary/Non-Hazardous areas and aligns with typical industrial codes, supporting reliable operation in demanding environments while meeting safety and performance requirements.
With a 30W, 3000-lumen LED design and a durable die-cast aluminum housing, the unit lowers energy costs and reduces maintenance frequency due to its long life and robust build. The dimmable driver enables adaptive lighting control, further cutting energy use during low-occupancy periods. Its quick-install features shorten construction time and minimize downtime during retrofits.
