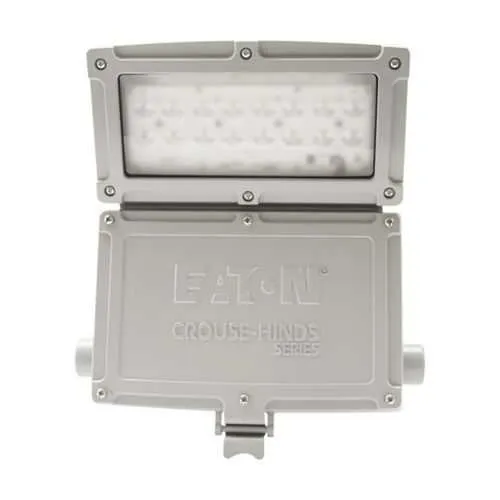

Eaton Crouse-Hinds WPMV5L-UNV1-S903 LED wall pack light - IP66
Part Number: WPMV5L-UNV1-S903
Quick Summary
Eaton Crouse-Hinds WPMV5L-UNV1-S903 LED wall pack light is a high-output exterior luminaire engineered for industrial facilities. This fixture delivers reliable illumination in demanding environments, reducing maintenance cycles and upping site safety. It carries key certifications such as IP66 water ingress protection, NEMA 4X ruggedness, and NEC/CEC compatibility to ensure compliance and performance. By combining a dimmable driver with universal voltage and durable construction, it supports energy efficiency goals while simplifying procurement and installation for facilities managers and engineers alike.
Product Information
Extended Description
WPMV5L-UNV1-S903 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Champ WPMV LED wall pack, 0.15A, Cool white, Dimmable driver, 3/4" entry, 100W equiv, 50/60 Hz, Polycarbonate lens, 5000 lumens, 116 lm/W, Die cast alum, Yoke mount, 7x6 distribution, 120-277 Vac, 125-250 Vdc, 45W
Product Name
Eaton Crouse-Hinds series Champ WPMV LED wall pack light fixture
Catalog Number
WPMV5L-UNV1-S903
UPC
662276892552
Product Length/Depth
9.16 in
Product Height
12.76 in
Product Width
12.6 in
Product Weight
14 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
LED
Lumens
5000
Lumens per watt
26W
Color temperature
Cool white
Optical distribution
7x6
Mounting Method
Yoke
Voltage rating
120-277 Vac, 125-250 Vdc
Frequency rating
50/60 Hz
Lens material
Polycarbonate
Wattage
45W
Amperage Rating
0.088A
Power factor
> 0.90
Dimming
Dimmable driver
Entry size
3/4"
Material
Die cast aluminum
Equivalent luminaire
100W
SP3D Design Package - Champ Pro WPMV LED Industrial Wallpack Light Fixtures
Crouse-Hinds series WPMV LED brochure
Crouse-Hinds series WPMV LED brochure
Crouse-Hinds series WPMV LED brochure
Crouse-Hinds series Champ WPMV LED catalog page
IF 1893 - Champ-Pak WPMVL LED Wall Pack
Eaton Specification Sheet - WPMV5L-UNV1-S903
The fixture uses a die cast aluminum housing paired with a polycarbonate lens to withstand harsh outdoor conditions, delivering a robust product that resists corrosion and impact. This translates to lower maintenance costs and fewer replacements, especially in harsh industrial environments where outdoor lighting is exposed to dust, moisture, and temperature swings. The 5000-lumen output and 45W power draw offer a compelling efficiency profile, enabling facilities to meet illumination requirements while reducing electrical load and operating expenses. With a dimmable driver and a 120-277Vac / 125-250Vdc input range, it supports flexible control strategies and regional power standards, simplifying commissioning across global sites. The 7x6 optical distribution ensures effective wall washing and surface illumination, enhancing security and workflow in warehouses, loading docks, and plant exteriors. Easy installation features such as a 3/4" entry and yoke mounting streamline retrofits and new builds alike. Industry professionals benefit from certified ruggedness (NEMA 4X, IP66) without compromising on light quality or installation time, while the long life of LED technology supports lower maintenance intervals and predictable budgeting. In short, this wall pack light delivers durable performance, reduced total cost of ownership, and reliable, high-quality illumination for critical industrial applications.
Get a Quick Quote for a Eaton Crouse-Hinds WPMV5L-UNV1-S903
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds WPMV5L-UNV1-S903?
Enquire Now
FAQs
Plan for a 3/4 inch entry during conduit routing and ensure a secure yoke mount that supports the fixture's weight and wind loading. Use standard 120-277Vac wiring and confirm correct polarity and grounding. Check the IP66/NEMA 4X protection by sealing all connections properly to maintain exterior durability and moisture resistance. Allow for alignment of the 7x6 optical distribution to maximize wall washing in the intended zone.
The fixture delivers 5000 lumens at a 45W power draw, with a dimmable driver and a performance profile that exceeds 0.9 power factor. It operates on 50/60 Hz and accepts 120-277Vac or 125-250Vdc, enabling broad integration. The polycarbonate lens and die cast aluminum housing provide rugged durability, while the 7x6 optical distribution supports uniform wall illumination and reduced dark spots.
This luminaire is certified for Ordinary/Non-Hazardous locations and features IP66 and NEMA 4X ratings, ensuring water ingress and corrosion resistance in standard outdoor environments. It is designed for non-hazardous applications, offering reliable performance in parking lots, perimeters, and exterior facades without the extra protection required for hazardous locations.
The WPMV5L-UNV1-S903 includes a dimmable driver, enabling smoothly adjustable output to support energy management and scene setting. It accepts common dimming schemes compatible with its 120-277Vac input, simplifying integration with building management systems (BMS) or standalone dimming controls while preserving light quality and luminaire life.
With a 5000-lumen output at 45W, long LED life, and robust IP66/NEMA 4X protection, the fixture reduces maintenance cycles and energy consumption compared to legacy solutions. The universal voltage range simplifies stocking and replacements across sites, while dimmability supports demand-response programs. The combination of durability and efficiency delivers favorable payback and a lower total cost of ownership over time.
