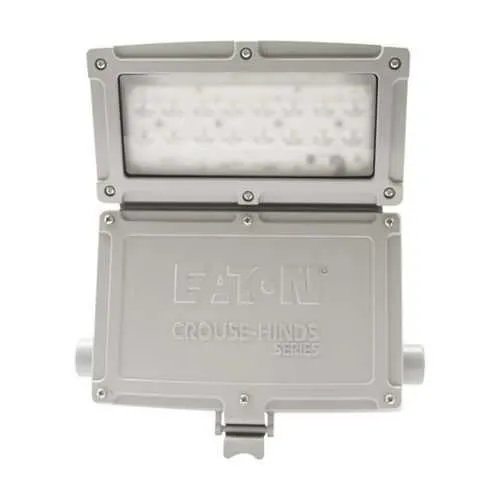

Eaton Crouse-Hinds WPMV5L-UNV34-S903 LED wall pack - IP66
Part Number: WPMV5L-UNV34-S903
Quick Summary
The Eaton Crouse-Hinds Champ WPMV LED wall pack provides high-output exterior illumination for industrial facilities. Project teams often struggle with reliability in harsh environments, frequent maintenance, and difficult installation in tight outdoor spaces. It ships with IP66 ingress protection, NEMA 4X enclosure integrity, and NEC/CEC compliance, ensuring safety, durability, and regulatory alignment. Designed for 347–480 VAC operation with a dimmable driver, it reduces energy use and lowers lifecycle costs, while supporting scalable outdoor lighting strategies. With a robust die-cast aluminum housing and polycarbonate lens, it resists corrosion and impact in demanding outdoor environments, making it suitable for retrofit projects and new builds across warehouses, processing plants, and loading zones.
Product Information
Extended Description
WPMV5L-UNV34-S903 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Champ WPMV LED wall pack, 0.15A, Cool white, Dimmable driver, 3/4" entry, 100W equiv, 60 Hz, Polycarbonate lens, 5000 lumens, 116 lm/W, Die cast aluminum, Yoke mount, 7x6 distribution, 347-480 Vac, 45W
Product Name
Eaton Crouse-Hinds series Champ WPMV LED wall pack light fixture
Catalog Number
WPMV5L-UNV34-S903
UPC
662276892897
Product Length/Depth
9.16 in
Product Height
12.76 in
Product Width
12.6 in
Product Weight
14 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
LED
Lumens
5000
Lumens per watt
26W
Color temperature
Cool white
Optical distribution
7x6
Mounting Method
Yoke
Voltage rating
347-480 Vac
Frequency rating
60 Hz
Lens material
Polycarbonate
Wattage
45W
Amperage Rating
0.088A
Power factor
> 0.90
Dimming
Dimmable driver
Entry size
3/4"
Material
Die cast aluminum
Equivalent luminaire
100W
SP3D Design Package - Champ Pro WPMV LED Industrial Wallpack Light Fixtures
Crouse-Hinds series industrial LED lighting solutions
Crouse-Hinds series industrial LED lighting solutions
Crouse-Hinds series industrial LED lighting solutions
Crouse-Hinds series Champ WPMV LED catalog page
IF 1893 - Champ-Pak WPMVL LED Wall Pack
Eaton Specification Sheet - WPMV5L-UNV34-S903
Feature: High-output LED performance. Benefit: Delivers 5000 lumens at 116 lm/W with only 45W, reducing energy use while maintaining visibility for outdoor work zones. Application: Exterior wall pack lighting for warehouses and plant perimeters. Result: Lower operating costs and improved site safety. Feature: Rugged housing and optics. Benefit: Die-cast aluminum with a polycarbonate lens provides robust impact resistance and weather sealing. Application: Harsh outdoor environments subject to dust, water, and corrosion. Result: Longer service life with less downtime. Feature: Wide voltage and dimming. Benefit: 347–480 VAC, 60 Hz with a dimmable driver enables seamless integration into existing control schemes. Application: Retrofit and new installations in industrial facilities. Result: Flexible control and energy savings. Feature: Easy installation footprint. Benefit: yoke mounting, 9.16 in length, 12.76 in height, 12.6 in width, and 14 lb weight simplify mounting on exterior walls. Application: Constrained spaces at loading docks and facility facades. Result: Faster installation and reduced labor costs. Feature: Compliance and protection. Benefit: IP66 and NEMA 4X, plus NEC/CEC compliance and Ordinary/Non-Hazardous area classification ensure regulatory alignment and safe operation. Application: Facilities complying with industry standards. Result: Lower risk and streamlined procurement for industrial lighting projects.
Get a Quick Quote for a Eaton Crouse-Hinds WPMV5L-UNV34-S903
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds WPMV5L-UNV34-S903?
Enquire Now
FAQs
The WPMV5L-UNV34-S903 is rated for 347–480 VAC at 60 Hz and features a 3/4 inch entry with a flexible yoke mounting option. This supports versatile outdoor wall installations and straightforward integration with standard industrial wiring. When planning, verify wiring phase compatibility and ensure NEC/CEC compliance for exterior lighting installations to avoid misconfigurations.
Performance highlights include 5000 lumens with an efficiency of roughly 26 lm/W, a 45W power draw, color temperature of cool white, and a power factor greater than 0.90. It provides a 7x6 optical distribution, is dimmable, and runs at 347–480 VAC with a 60 Hz frequency, supporting reliable exterior illumination for industrial sites.
Yes. The WPMV5L-UNV34-S903 is certified for Ordinary/Non-Hazardous Locations, with IP66 ingress protection and a NEMA 4X enclosure, offering rugged weather resistance. It complies with NEC/CEC standards, making it appropriate for exterior lighting on warehouses, loading docks, and plant perimeters in non-hazardous industrial environments.
Installation benefits include a compact footprint, 9.16 in length, 12.76 in height, 12.6 in width, 14 lb weight, and a 3/4 inch conduit entry for straightforward wiring. Maintenance advantages come from a long LED life, dimmable driver, and high IP/NEMA protection, leading to reduced downtime, fewer ballast replacements, and lower ongoing maintenance costs.
The combination of 5000 lumens at 45W and a dimmable driver yields significant energy savings over traditional light sources, while IP66/NEMA 4X protection minimizes outages due to weather or dust. The long service life and low maintenance requirements translate into lower total cost of ownership, faster project deployment, and improved site safety across industrial facilities.
