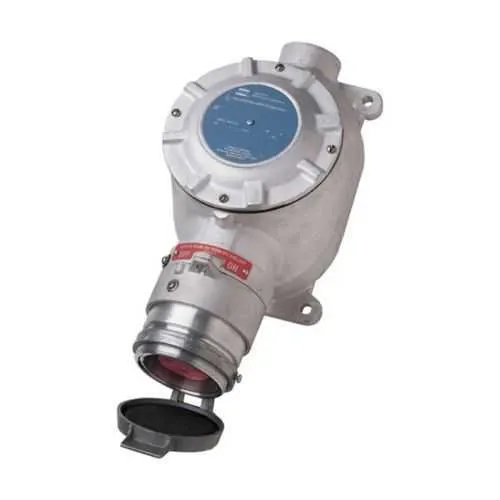

Eaton Crouse-Hinds WSQC2340 Interlocked Receptacle - Switch
Part Number: WSQC2340
Quick Summary
WSQC2340 interlocked receptacle with enclosed switch provides safe, controlled power in industrial enclosures. This design prevents accidental energization and tampering during maintenance, reducing the risk of injuries and unplanned downtime. It carries critical NEC/CEC compliance and a NEMA 3R rating for reliable performance in typical plant environments, including wet or dusty areas. With a 30A, three-wire, four-pole configuration and a broad 120–600 VAC range, it fits standard control panels and motor-start circuits without requiring custom wiring. The copper-free aluminum housing and brass contacts deliver durable, corrosion-resistant operation while keeping weight down for easier installation. In short, it aligns safety, reliability, and ease of retrofit with existing Arktite WSQC interlock systems.
Product Information
Extended Description
WSQC2340 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Arktite WSQC interlocked receptacle with enclosed switch, 30A, Three-wire, four-pole, Brass contacts, Copper-free aluminum, 3/4", 120-600 Vac
Product Name
Eaton Crouse-Hinds series Arktite WSQC interlocked receptacle with enclosed switch
Catalog Number
WSQC2340
UPC
782274019796
Product Length/Depth
3.13 in
Product Height
9.75 in
Product Width
5.75 in
Product Weight
5.44 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
3R 12
Enclosure type
With switch
Amperage Rating
30A
Trade size
3/4"
Configuration
Three-wire, four-pole
Voltage rating
120-600 Vac
Material
Copper-free aluminum
Contact material
Brass
Arktite WSQC Interlock Receptacles catalog page
Arktite WSQC Interlock Receptacles Canadian certification
Arktite WSQC Interlock Receptacles Canadian certification
IF 1371 - WSQ Series 30 and 60A Interlock Receptacle
Eaton Specification Sheet - WSQC2340
Feature interlocked receptacle with enclosed switch provides a controlled power path that prevents energizing when guards are open, improving operator safety and helping meet lockout/tagout requirements. Business impact includes reduced downtime, fewer injury incidents, and streamlined compliance reporting in manufacturing lines and packaging systems. Application spans control panels, machine enclosures, and material handling areas where safety interlocks are essential and standard wiring schemes are preferred. The enclosure’s copper-free aluminum body and brass contacts offer corrosion resistance with lower weight, easing installation and long-term maintenance in harsh environments. Compatibility with the WSQC family and standard 3/4 inch trade cutouts simplifies retrofits and upgrades, while NEC/CEC and UL considerations support ongoing regulatory compliance across industrial facilities. This approach supports cost-effective upgrades without changing existing wiring diagrams.
Get a Quick Quote for a Eaton Crouse-Hinds WSQC2340
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds WSQC2340?
Enquire Now
FAQs
WSQC2340 interlocked receptacle with enclosed switch is designed to safely power equipment enclosures in automation settings. It supports 30A, three-wire four-pole wiring and a 120–600 VAC range, enabling reliable integration with standard control circuits. The interlock prevents energizing when a guard is open, improving operator safety and helping meet lockout/tagout and safety audits on control panels and packaging lines.
Yes. WSQC2340 is designed to integrate with the Arktite WSQC interlock family, following standard mounting footprints and 3/4 inch trade cutouts. For installation compatibility, reference the IF 1371 instruction sheet and the WSQC catalog pages to ensure proper latch alignment, wiring, and enclosure fit during retrofits or new builds.
WSQC2340 delivers 30A at 120–600 VAC in a three-wire, four-pole configuration. It uses a copper-free aluminum enclosure with brass contacts, is rated for a 3/4" trade size, and is designed for ordinary/non-hazardous locations. It operates within a NEMA 3R environment, enabling reliable performance in typical industrial settings.
The WSQC2340 is designed for NEC/CEC standards compliance and is suitable for ordinary/non-hazardous locations. It carries a NEMA 3R rating for weather-resistance and uses UL-listed components, with Canadian certification references available in UL databases. This alignment supports safe operation, regulatory compliance, and regional manufacturing requirements.
Maintenance benefits include reduced risk of unexpected energization and easier lockout/tagout procedures, contributing to lower downtime costs. The robust copper-free aluminum housing and brass contacts offer long-term durability with minimal weight, improving installation speed and easing panel upgrades. Overall, the WSQC2340 supports safer operation and faster ROI through safer maintenance and compliant, reliable power control.
