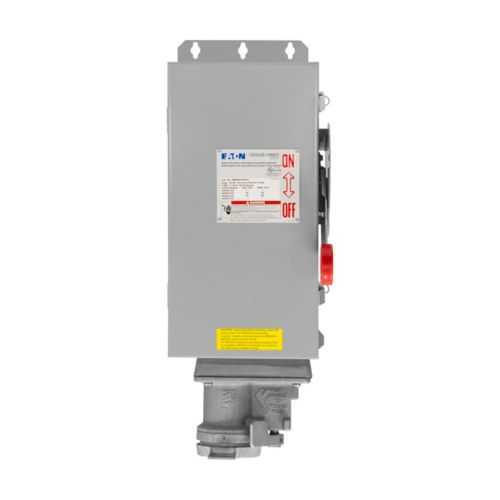

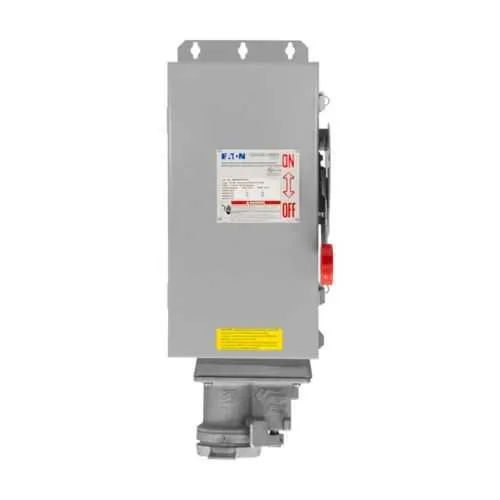

Eaton Crouse-Hinds WSRD103542CH Receptacle -NEMA 12 3R
Part Number: WSRD103542CH
Manufacturer
Eaton Crouse-Hinds
Part number
WSRD103542CH
Quick Summary
WSRD103542CH interlocked receptacle with enclosed safety disconnect switch from Eaton Crouse-Hinds delivers a robust safety shutdown solution for electrical panels and process automation enclosures. This configuration helps prevent accidental energization during maintenance by locking the disconnect in the safe position, addressing a common industry pain point: safeguarding workers and preserving uptime. The design aligns with NEC/CEC standards and is rated for ordinary/non-hazardous locations with a NEMA 12 3R enclosure, offering robust protection in factory floors and outdoor installations. Built for 100A service with brass contacts and a sheet-steel enclosure, it supports efficient, safe switching of 480/600 VAC loads. With a spring-door, solid-door option and Style 2 grounding, the WSRD103542CH delivers a durable, compliant solution that reduces lifecycle risk and total cost of ownership.
Product Information
Extended Description
WSRD103542CH Eaton Crouse-Hinds: Eaton Crouse-Hinds series Arktite WSRD interlocked receptacle with enclosed safety disconnect switch, 100A, Three-wire, four-pole, Brass contacts, Solid door, Non-fused, Style 2, Cutler-Hammer, Sheet steel, Spring door, 480/600 Vac
Product Name
Eaton Crouse-Hinds series Arktite WSRD interlocked receptacle with enclosed safety disconnect switch
Catalog Number
WSRD103542CH
UPC
662276534902
Product Length/Depth
11.14 in
Product Height
31.05 in
Product Width
10.21 in
Product Weight
35 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
12 3R
Enclosure type
With switch
Door style
Solid
Amperage Rating
100A
Fusing
Non-fused
Grounding style
Style 2
Configuration
Three-wire, four-pole
Material
Sheet steel
Contact material
Brass
Voltage rating
480 Vac/600 Vac
Manufacturer
Cutler-Hammer
Receptacle style
Spring door
Arktite WSRD Interlock with Eaton Switch
Arktite WSR/WSRD Interlock Receptacles catalog page
Arktite WSR/WSRD Interlock Receptacles with Enclosed Disconnect Switches Canadian certification
Arktite WSR/WSRD Interlock Receptacles with Enclosed Disconnect Switches Canadian certification
Eaton Specification Sheet - WSRD103542CH
Feature: Interlocked receptacle with enclosed safety disconnect switch. Business Impact: Enhances operator safety by preventing unintended energization during maintenance, reducing arc flash exposure and equipment damage. Application: Panel enclosures in manufacturing lines and automation cabinets. Feature: 100A, three-wire, four-pole configuration. Business Impact: Supports high-load equipment with clean, controlled power transfer, minimizing voltage fluctuations and wiring complexity. Application: Heavy-duty drives, motors, and process equipment on factory floors. Feature: Brass contacts and solid steel enclosure. Business Impact: Delivers durable, low-resistance connectivity and rugged protection against impact and corrosion. Application: Frequent-movement power connections in harsh industrial environments. Feature: Sheet steel enclosure with spring door and solid door option. Business Impact: Provides robust shielding and easy maintenance access, improving enclosure integrity and serviceability. Application: Outdoor and damp locations within process plants. Feature: Grounding style Style 2 and NEMA 12 3R compatibility. Business Impact: Simplifies grounding compliance and enhances protection against dust and moisture ingress. Application: Industrial control panels and enclosures that require reliable environmental sealing. Feature: 480/600 VAC rating with non-fused configuration. Business Impact: Enables versatile integration across multi-volt systems while avoiding unnecessary fusion hardware. Application: High-voltage industrial power distribution on assembly lines and packaging lines.
