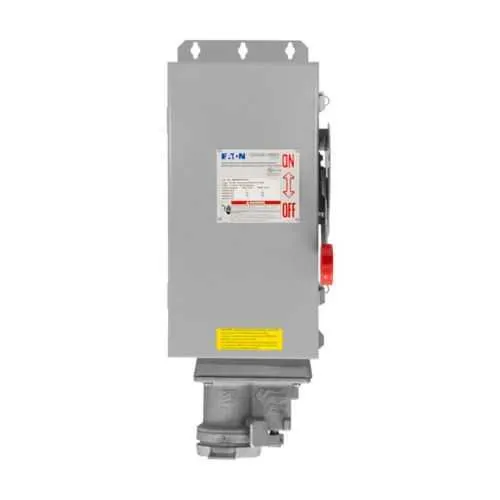

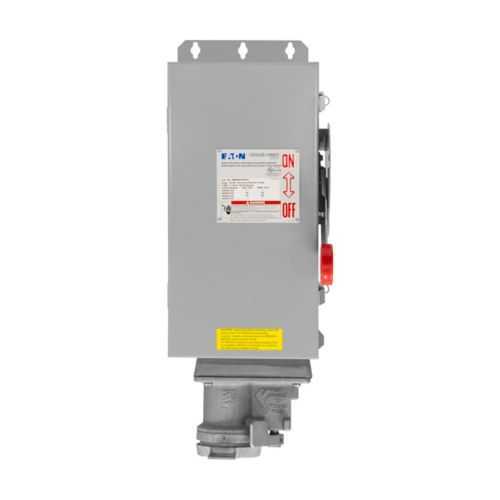

Eaton WSRD103542CH-S901 Arktite Receptacle - 4X
Part Number: WSRD103542CH-S901
Manufacturer
Eaton Crouse-Hinds
Part number
WSRD103542CH-S901
Quick Summary
WSRD103542CH-S901 interlocked receptacle with enclosed safety disconnect switch is a rugged, 100A power-distribution solution designed for industrial applications. It helps prevent accidental energizing during maintenance, reducing risk and downtime. Built for ordinary/non-hazardous locations, it carries NEC/CEC standards and a NEMA 4X rating, with a corrosion-resistant 304 stainless steel enclosure. The design supports safe, code-compliant lockout/tagout procedures and reliable operation in harsh environments. By integrating with Eaton's Cutler-Hammer components and the Arktite line, it delivers long-term service life, easier field installation, and lower total cost of ownership for panel builders and maintenance teams. This combination promotes faster project execution and predictable performance across machines.
Product Information
Extended Description
WSRD103542CH-S901 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Arktite WSRD interlocked receptacle with enclosed safety disconnect switch, 100A, Three-wire, four-pole, Brass contact, Solid door, Non-fused, Style 2, Cutler-Hammer, 304 stainless steel, Spring door, 480/600 Vac
Product Name
Eaton Crouse-Hinds series Arktite WSRD interlocked receptacle with enclosed safety disconnect switch
Catalog Number
WSRD103542CH-S901
UPC
662276535626
Product Length/Depth
11.14 in
Product Height
31.05 in
Product Width
10.21 in
Product Weight
35 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4X 4
Enclosure type
With switch
Door style
Solid
Amperage Rating
100A
Fusing
Non-fused
Grounding style
Style 2
Configuration
Three-wire, four-pole
Material
304 stainless steel
Contact material
Brass
Voltage rating
480 Vac/600 Vac
Manufacturer
Cutler-Hammer
Receptacle style
Spring door
Arktite WSRD Interlock with Eaton Switch
Arktite WSR/WSRD Interlock Receptacles catalog page
Arktite WSR/WSRD Interlock Receptacles with Enclosed Disconnect Switches UL certification
Arktite WSR/WSRD Interlock Receptacles with Enclosed Disconnect Switches UL certification
Eaton Specification Sheet - WSRD103542CH-S901
Feature: 100A amperage rating provides ample capacity for motor loads and peak startup currents. Business Impact: Reduces the likelihood of nuisance tripping and downtime while enabling reliable panel power distribution. Application: Industrial machinery feeds and control panels where high inrush is common. Feature: 304 stainless steel enclosure delivers superior corrosion resistance and durability. Business Impact: Extends service life in non-hazardous locations with exposure to dust, moisture, or washdown, lowering maintenance costs. Application: Food & beverage, manufacturing, and general industrial environments. Feature: Interlocked receptacle with enclosed safety disconnect switch enhances operator safety. Business Impact: Improves lockout/tagout compliance and minimizes accidental energizing during servicing. Application: Maintenance on motors and automation equipment. Feature: Receptacle style Spring door and door style Solid provide robust sealing and easy access. Business Impact: Simplifies field service while maintaining enclosure integrity. Application: Fast, reliable servicing in panel boards. Feature: Configuration Three-wire, four-pole ensures proper grounding and fault clearing. Business Impact: Improves fault tolerance and safety margins in 480/600 Vac systems. Application: Industrial power distribution loops. Feature: Grounding style Style 2 and brass contact material deliver dependable electrical paths. Business Impact: Reduces contact resistance, improves conductivity, and extends component life. Application: High-current, high-demand installations. Feature: 100A non-fused design with 480/600 Vac rating aligns with NEC/CEC requirements. Business Impact: Streamlines compliance and reduces upstream component counts. Application: New installations and retrofits in ordinary locations. Feature: 304 stainless steel construction and included Eaton/ Cutler-Hammer lineage provide compatibility with Arktite accessories. Business Impact: Facilitates seamless integration, faster procurement, and predictable field performance. Application: Panel builders and installation teams deploying Arktite WSR/WSRD interlocks.
Get a Quick Quote for a Eaton Crouse-Hinds WSRD103542CH-S901
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds WSRD103542CH-S901?
Enquire Now
FAQs
This unit requires a compliant panel enclosure and space for the enclosed disconnect switch. Follow lockout/tagout procedures and NEC/CEC guidelines. Use a three-wire, four-pole configuration with proper grounding (Style 2) to ensure safe energization sequencing and reliable fault clearing during maintenance.
304 stainless steel provides excellent corrosion resistance and mechanical strength, increasing longevity in dusty, damp, or washdown-prone areas. This minimizes enclosure wear, protects internal contacts (brass), and reduces maintenance frequency, improving total cost of ownership over the product’s life cycle.
Yes. The WSRD103542CH-S901 is designed to be compatible with Eaton-Crouse-Hinds Arktite interlock components. Its three-wire, four-pole configuration and Brass contact design align with existing WSR/WSRD interlock ecosystems, simplifying upgrades and spares management.
It adheres to NEC/CEC standards, carries a NEMA Rating of 4X, and is intended for Ordinary/Non-Hazardous Locations. This combination supports safe installation in standard industrial environments while meeting common regulatory and industry requirements for protection and reliability.
The interlock with enclosed disconnect switch reduces unplanned downtime by preventing accidental energization, improving safety and OSHA compliance. Durability from 304 stainless steel and a robust contact system lowers replacement and maintenance costs, delivering a favorable return on investment over typical panel-life cycles.
