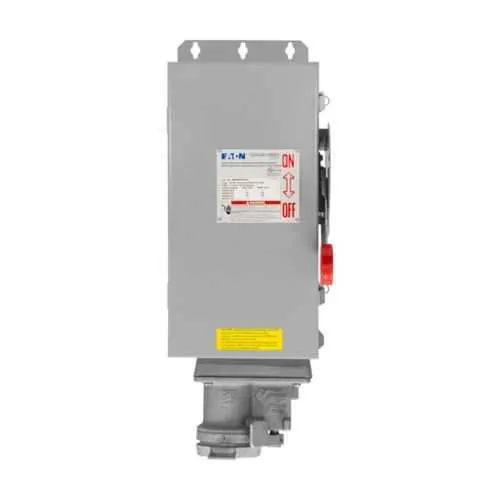

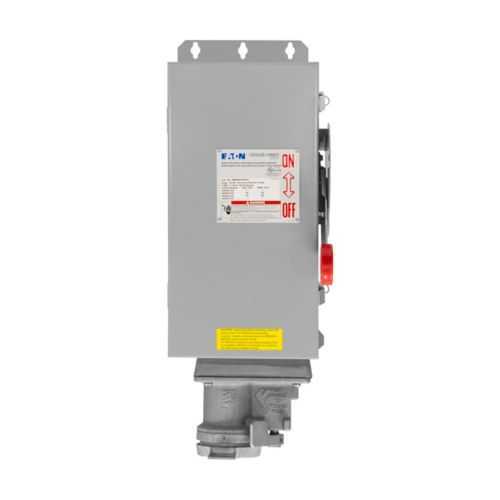

Eaton Crouse-Hinds WSRD6351CH Interlocked Receptacle - NEMA 3R

Part Number: WSRD6351CH
WSRD6351CH
Manufacturer
Eaton Crouse-Hinds
Part number
WSRD6351CH
Category

Quick Summary

The WSRD6351CH interlocked receptacle from Eaton Crouse-Hinds provides an enclosed safety disconnect switch for industrial control panels and motor circuits. This design addresses the common challenge of safely isolating power during maintenance while meeting strict installation standards. It complies with NEC/CEC and NEMA 3R ratings, reinforcing reliability in non-hazardous environments. For buyers, the combination of 60A capacity, fused protection, and a solid door translates to safer operations, easier lockout-tagout, and lower lifecycle costs in industrial facilities and machinery applications.

Product Information

Extended Description

WSRD6351CH Eaton Crouse-Hinds: Eaton Crouse-Hinds series Arktite WSRD interlocked receptacle with enclosed safety disconnect switch, 60A, Three-wire, three-pole, Brass contacts, Solid door, Fused, Style 1, Cutler-Hammer, Sheet steel, Spring door, 480/600 Vac
Product Name
Eaton Crouse-Hinds series Arktite WSRD interlocked receptacle with enclosed safety disconnect switch
Catalog Number
WSRD6351CH
UPC
662276534605
Product Length/Depth
8.44 in
Product Height
24.6 in
Product Width
10.2 in
Product Weight
27 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
3R 12
Enclosure type
With switch
Door style
Solid
Amperage Rating
60A
Fusing
Fused
Grounding style
Style 1
Configuration
Three-wire, three-pole
Material
Sheet steel
Contact material
Brass
Voltage rating
480 Vac/600 Vac
Manufacturer
Cutler-Hammer
Receptacle style
Spring door
Arktite WSRD Interlock with Eaton Switch Arktite WSR/WSRD Interlock Receptacles catalog page Arktite WSR/WSRD Interlock Receptacles with Enclosed Disconnect Switches UL certification Arktite WSR/WSRD Interlock Receptacles with Enclosed Disconnect Switches UL certification Eaton Specification Sheet - WSRD6351CH
Feature → Business Impact → Application: 60A fused, enclosed safety disconnect switch reduces risk of accidental energization, enhancing worker safety and regulatory compliance in high-current control circuits; Application: motor drives, process controls, and equipment disconnects in factory automation. Feature → Business Impact → Application: Interlocked spring-door receptacle ensures the disconnect remains secured closed during maintenance, minimizing nuisance energizations and improving maintenance efficiency; Application: power isolation points for safety-critical machinery. Feature → Business Impact → Application: NEMA 3R rated enclosure withstands wet and outdoor environments, increasing uptime with weather protection in ordinary locations; Application: outdoor equipment cabinets and non-hazardous plant spaces. Feature → Business Impact → Application: Sheet steel enclosure with brass contacts delivers durable, low-resistance connections for long-term reliability; Application: rugged industrial environments with frequent cycling. Feature → Business Impact → Application: NEC/CEC compliance and UL-listed certification reduce procurement risk and simplify audits; Application: compliance-driven purchasing for industrial control panels and safety interlocks.

Get a Quick Quote for a Eaton Crouse-Hinds WSRD6351CH

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton Crouse-Hinds WSRD6351CH? Enquire Now

FAQs

For ordinary locations, mount the Arktite WSRD in a suitable enclosure with a sheet steel body and solid door. Ensure the three-wire, three-pole configuration is wired per NEC/CEC guidelines, using brass contacts for reliable conductivity. Consider space for the 8.44 in depth and 24.6 in height when planning panel layouts.
The unit is designed to meet NEC/CEC standards and is UL-listed for enclosed disconnect switches, providing built-in compliance. Its fused 60A design, NEMA 3R rating, and enclosure features support safe, compliant isolation in standard industrial control panels and machinery enclosures.
Connect the three hot conductors to the three-pole receptacle with brass contacts, maintain proper grounding via Style 1 grounding, and install the enclosed disconnect in series with the load. Verify insulation, torque settings, and proper lockout-tagout procedures to ensure safe energization control.
Yes, the WSRD6351CH carries a NEMA 3R rating suitable for ordinary/non-hazardous locations and environments requiring weather resistance. It is ideal for outdoor equipment cabinets or indoor spaces where occasional exposure to moisture or washdown occurs, while retaining safe disconnect functionality.
By reducing accidental energization, simplifying lockout procedures, and providing durable sheet steel construction with long-life brass contacts, maintenance downtime is minimized and regulatory audits become smoother. The fusion and enclosed switch configuration also lowers replacement and downtime costs in high-uptime industrial processes.
