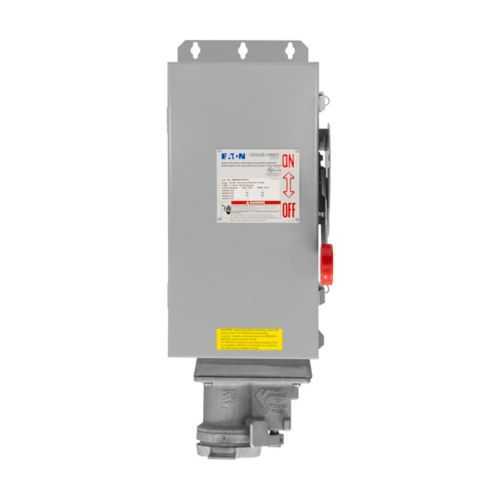

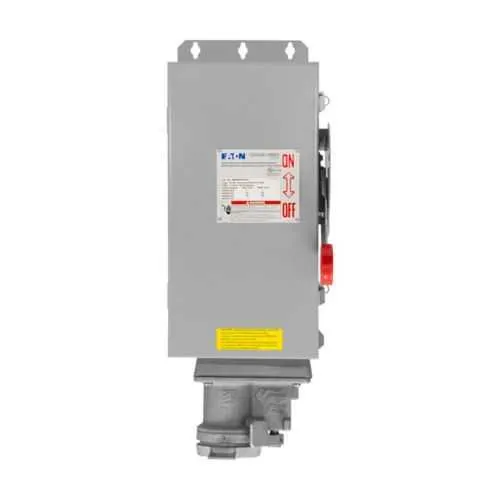

Eaton WSRD63541CH-S483 Interlocked Receptacle - NEMA 12/3R
Part Number: WSRD63541CH-S483
Manufacturer
Eaton Crouse-Hinds
Part number
WSRD63541CH-S483
Quick Summary
WSRD63541CH-S483 interlocked receptacle with enclosed safety disconnect switch provides safe power control for demanding industrial equipment. Operators often face accidental switching, unexpected downtime, and strict safety compliance challenges; this device prevents access during switching and supports effective lockout/tagout practices. It adheres to NEC/CEC standards and features a NEMA 12 3R enclosure with a solid sheet-steel body, offering reliable dust and water resistance in ordinary locations. With a 60 A rating and 480/600 Vac capability, it accommodates high-demand loads while maintaining coordinated protection. Factory-installed auxiliary contacts extend control options, improving diagnostics and integration, which translates to reduced downtime and predictable maintenance for industrial programs.
Product Information
Extended Description
WSRD63541CH-S483 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Arktite WSRD interlocked receptacle with safety disconnect switch, 60A, 3-wire, 3-pole, Brass contacts, Solid door, Non-fused, Style 1, Cutler-Hammer, Sheet steel, Spring door, Aux contacts, 480/600 Vac
Product Name
Eaton Crouse-Hinds series Arktite WSRD interlocked receptacle with enclosed safety disconnect switch
Catalog Number
WSRD63541CH-S483
UPC
662276534988
Product Length/Depth
8.44 in
Product Height
24.6 in
Product Width
10.2 in
Product Weight
27 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
12 3R
Enclosure type
With switch
Door style
Solid
Amperage Rating
60A
Fusing
Non-fused
Grounding style
Style 1
Configuration
Three-wire, three-pole
Material
Sheet steel
Contact material
Brass
Voltage rating
480 Vac/600 Vac
Manufacturer
Cutler-Hammer
Receptacle style
Spring door
Special features
Factory installed auxiliary contacts
Arktite WSRD Interlock with Eaton Switch
Arktite WSR/WSRD Interlock Receptacles catalog page
Arktite WSR/WSRD Interlock Receptacles with Enclosed Disconnect Switches Canadian certification
Arktite WSR/WSRD Interlock Receptacles with Enclosed Disconnect Switches Canadian certification
Eaton Specification Sheet - WSRD63541CH-S483
Feature interlocked receptacle with enclosed safety disconnect switch → Business Impact protects personnel by preventing energization during door operation and enables compliant lockout/tagout processes → Application ideal for machine power isolation in manufacturing lines. Feature 60 A, three-wire, three-pole configuration → Business Impact supports heavy equipment loads without external disconnects, reducing wiring complexity and improving panel density → Application suitable for high-demand industrial feeds in control cabinets. Feature brass contact material in a robust sheet steel enclosure → Business Impact delivers reliable current conduction with durable enclosure protection against wear in harsh environments → Application in normal factory floors and non-hazardous locations. Feature solid door with spring door receptacle style and factory installed auxiliary contacts → Business Impact enhances tamper resistance, status signaling, and PLC integration for real-time diagnostics → Application in line-side connections requiring quick status feedback. Feature area classification Ordinary/Non-Hazardous Locations and NEC/CEC compliance with NEMA 12 3R rating → Business Impact ensures regulatory alignment, safe operation, and long service life in typical industrial settings → Application across general manufacturing, packaging, and material handling. The combination of these features delivers improved uptime, safer maintenance windows, and easier integration into existing automation architectures.
Get a Quick Quote for a Eaton Crouse-Hinds WSRD63541CH-S483
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds WSRD63541CH-S483?
Enquire Now
FAQs
This unit is designed for panel-mounted installation with a sheet steel enclosure and solid/spring door. It uses a three-wire, three-pole configuration rated at 60 A and accepts 480/600 Vac. Ensure proper panel cutout, secure mounting, and correct wiring to maintain NEC/CEC compliance and reliable operation. Use factory-installed auxiliary contacts for signaling where needed.
The interlocked receptacle provides a safety disconnect that remains locked when the door is open, preventing energization during servicing. This supports lockout/tagout practices, reduces the risk of arc flash, and ensures maintenance personnel can work on equipment with confidence, while auxiliary contacts enable monitoring and PLC signaling for proactive maintenance.
Ideal for general manufacturing, packaging lines, and material-handling equipment in ordinary/non-hazardous locations. Its 60 A, 480/600 Vac rating supports heavy motor loads, and the NEMA 12 3R enclosure provides dust and water resistance, making it well-suited for shop floors, control panels, and rugged industrial environments.
The WSRD63541CH-S483 adheres to NEC/CEC standards and features a NEMA 12 3R enclosure for reliable protection in ordinary locations. This combination ensures regulatory compliance, safer operation in non-hazardous settings, and compatibility with standard Eaton/Cutler-Hammer components, simplifying audits and maintenance planning.
Key ROI drivers include reduced downtime through safer, faster maintenance workflows, improved energy isolation with reliable auxiliary signaling, and longer service life from a sturdy sheet steel enclosure and brass contacts. By meeting compliance and enabling easier integration, the unit lowers lifecycle costs and extends panel compatibility with existing automation architectures.
