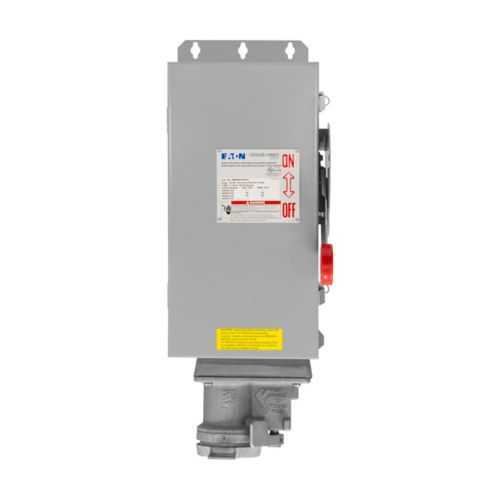

Eaton WSRD63542CH Interlocked Receptacle - 60A, 480/600V
Part Number: WSRD63542CH
Manufacturer
Eaton Crouse-Hinds
Part number
WSRD63542CH
Quick Summary
The Eaton WSRD63542CH interlocked receptacle provides controlled power with an enclosed disconnect for rugged industrial environments. This design reduces accidental energization and prevents unauthorized access during maintenance. It carries NEC/CEC compliance with a NEMA 3R rating for outdoor service in ordinary locations. Designed for 60A, 480–600V three‑wire, four‑pole service, it helps reduce downtime and simplify installation with a sheet‑steel enclosure, brass contacts, and a solid door. The unit aligns with Cutler-Hammer engineering and Eaton's Arktite family, delivering reliability, corrosion resistance, and predictable maintenance intervals. Its dimensions and compact footprint support easy integration into standard enclosures while keeping the enclosed safety switch accessible.
Product Information
Extended Description
WSRD63542CH Eaton Crouse-Hinds: Eaton Crouse-Hinds series Arktite WSRD interlocked receptacle with enclosed safety disconnect switch, 60A, Three-wire, four-pole, Brass contacts, Solid door, Non-fused, Style 2, Cutler-Hammer, Sheet steel, Spring door, 480/600 Vac
Product Name
Eaton Crouse-Hinds series Arktite WSRD interlocked receptacle with enclosed safety disconnect switch
Catalog Number
WSRD63542CH
UPC
662276534896
Product Length/Depth
8.44 in
Product Height
24.6 in
Product Width
10.2 in
Product Weight
27 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
3R 12
Enclosure type
With switch
Door style
Solid
Amperage Rating
60A
Fusing
Non-fused
Grounding style
Style 2
Configuration
Three-wire, four-pole
Material
Sheet steel
Contact material
Brass
Voltage rating
480 Vac/600 Vac
Manufacturer
Cutler-Hammer
Receptacle style
Spring door
Arktite WSRD Interlock with Eaton Switch
Arktite WSR/WSRD Interlock Receptacles catalog page
Arktite WSR/WSRD Interlock Receptacles with Enclosed Disconnect Switches Canadian certification
Arktite WSR/WSRD Interlock Receptacles with Enclosed Disconnect Switches Canadian certification
Eaton Specification Sheet - WSRD63542CH
Feature: Enclosed safety disconnect with interlock. Business Impact: Prevents energization when the door is opened, improving operator safety and reducing maintenance risk. Application: Ideal for heavy equipment such as motors, pumps, and conveyors in manufacturing and process facilities where uptime and worker protection are non‑negotiable. Insight: Integrated control points simplify lockout/tagout workflows and support safer startups across shifts. Feature: 60A, 480/600Vac three‑wire, four‑pole design with brass contacts. Business Impact: High current capability with low resistance and wear translates into longer service intervals and lower maintenance costs. Application: Heavy equipment such as motor drives and process equipment in industrial plants. Insight: Brass contact material delivers reliable conductivity across cycles, even in dusty or harsh environments. Feature: Sheet steel enclosure with solid spring‑door, enclosure type with switch, and Style 2 grounding. Business Impact: NEMA 3R protection in ordinary locations guards against moisture and debris, enabling outdoor installations. Application: Outdoor power distribution points, machine outlets, and remote control stations. Insight: The robust enclosure supports extended service life with reduced field repairs. Feature: Arktite WSRD interlock compatibility and compact footprint. Business Impact: Easy installation and retrofit with standard dimensions—8.44 in depth, 10.2 in width, 24.6 in height—while maintaining a 27 lb weight for manageable handling. Application: Panel builders and field technicians integrating safety disconnects in existing or new enclosures. Insight: Solid door, spring‑door design, and brass contacts provide long‑term reliability and predictable maintenance schedules. Feature: Certifications and standards alignment. Business Impact: NEC/CEC compliance and ordinary/non-hazardous location suitability simplify compliance audits and system integration. Application: Projects in regulated facilities like manufacturing, water treatment, and processing. Insight: Datasheets and catalogs reference UL/CSA considerations for traceability and assurance.
Get a Quick Quote for a Eaton Crouse-Hinds WSRD63542CH
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds WSRD63542CH?
Enquire Now
FAQs
Yes. The WSRD63542CH is engineered to integrate with Eaton’s Arktite WSRD interlock line, sharing common enclosure geometry and mounting patterns. When retrofitting, verify three‑wire four‑pole wiring and grounding requirements to ensure a seamless upgrade with minimal panel modification and downtime.
The unit is rated for 60A, 480/600Vac in a three‑wire, four‑pole configuration. Brass contact material provides low resistance and durable conductivity across cycles, while the non‑fused design supports straightforward switching of motor and load circuits in controlled environments.
Ideal for motors, pumps, conveyors, and other high‑demand equipment in ordinary/non‑hazardous locations. Its NEMA 3R enclosure and enclosed switch suit outdoor or semi‑outdoor installations, where reliability, safety interlock, and restricted access during maintenance are essential.
This receptacle aligns with NEC/CEC standards and carries a NEMA rating of 3R 12 for outdoor protection. It supports safe operation in ordinary locations and simplifies regulatory audits by meeting widely adopted electrical protection and enclosure requirements.
The integrated enclosed disconnect reduces field components and streamlines lockout/tagout procedures, lowering maintenance labor and downtime costs. The robust sheet steel enclosure with brass contacts enhances durability, extending service intervals and improving uptime for mission‑critical equipment.
