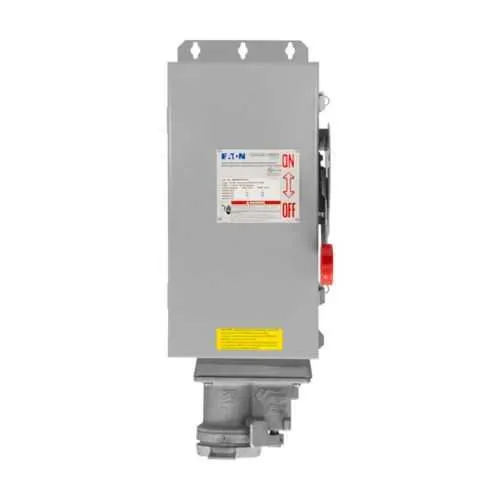

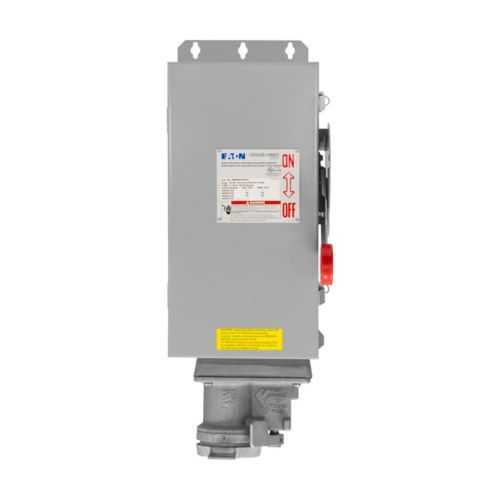

Eaton Crouse-Hinds WSRD63542CH-S483 Interlocked Receptacle - 60A, 480/600 Vac

Part Number: WSRD63542CH-S483
WSRD63542CH-S483
Manufacturer
Eaton Crouse-Hinds
Part number
WSRD63542CH-S483
Category

Quick Summary

Eaton Crouse-Hinds WSRD63542CH-S483 interlocked receptacle provides safe, controlled power isolation for industrial machinery in demanding environments. Maintenance teams often struggle with accidental energization during service, risking injury and downtime. This unit leverages NEC/CEC compliance, a NEMA 3R enclosure rating, and UL-listed safety features to meet code and protect personnel. Designed for rugged sheet-steel enclosures, it aligns with the Arktite WSRD family and supports factory-installed auxiliary contacts for expanded control. For engineers and procurement specialists, the combination of safety, reliability, and easy integration translates into reduced mean time to repair and improved overall equipment effectiveness (OEE). The result is a robust isolation solution that simplifies compliance and enhances worker safety in non-hazardous locations.

Product Information

Extended Description

WSRD63542CH-S483 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Arktite WSRD interlocked receptacle with safety disconnect switch, 60A, Three-wire, four-pole, Brass contacts, Solid door, Non-fused, Style 2, Cutler-Hammer, Sheet steel, Spring door, Aux contacts, 480/600 Vac
Product Name
Eaton Crouse-Hinds series Arktite WSRD interlocked receptacle with enclosed safety disconnect switch
Catalog Number
WSRD63542CH-S483
UPC
662276535015
Product Length/Depth
8.44 in
Product Height
24.6 in
Product Width
10.2 in
Product Weight
27 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
3R 12
Enclosure type
With switch
Door style
Solid
Amperage Rating
60A
Fusing
Non-fused
Grounding style
Style 2
Configuration
Three-wire, four-pole
Material
Sheet steel
Contact material
Brass
Voltage rating
480 Vac/600 Vac
Manufacturer
Cutler-Hammer
Receptacle style
Spring door
Special features
Factory installed auxiliary contacts
Arktite WSRD Interlock with Eaton Switch Arktite WSR/WSRD Interlock Receptacles catalog page Arktite WSR/WSRD Interlock Receptacles with Enclosed Disconnect Switches UL certification Arktite WSR/WSRD Interlock Receptacles with Enclosed Disconnect Switches UL certification Eaton Specification Sheet - WSRD63542CH-S483
Feature: 60A amperage rating and three-wire, four-pole configuration. Business Impact: Delivers full-load isolation for sizable motors and equipment while maintaining safe, code-compliant switching. Application: Industrial motor control in non-hazardous environments. The feature reduces transformer and conduit footprint while offering reliable power separation for maintenance windows.Feature: Enclosed safety disconnect switch with solid door and spring door options. Business Impact: Improves operator safety by providing a clearly isolated enclosure that remains secure during service. Application: Enclosures requiring secure access control in production lines and packaging systems.Feature: Brass contact material and Sheet steel enclosure. Business Impact: Ensures durable, low-resistance connections and rugged enclosure protection against impact and environment, lowering resistance heating risks and maintenance costs. Application: High-current 480/600 Vac applications in harsh factory floors.Feature: Receptacle style with factory-installed auxiliary contacts. Business Impact: Integrates control and interlock signaling without field modification, reducing installation time and wiring complexity. Application: Control circuits adjacent to safety interlocks in automation cells.Feature: Solid and style 2 grounding options with non-fused configuration. Business Impact: Minimizes fault paths and simplifies compliance with NEC/CEC grounding practices, lowering accidental energization scenarios. Application: General-purpose power distribution in ordinary locations with dependable grounding.Feature: Sheet-steel construction and 3R enclosure rating. Business Impact: Provides durable protection against dirt, dust, and incidental mechanical abuse, extending service life and reducing preventive maintenance. Application: Harsh factory environments and outdoor-rated installations in non-hazardous areas.

Get a Quick Quote for a Eaton Crouse-Hinds WSRD63542CH-S483

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton Crouse-Hinds WSRD63542CH-S483? Enquire Now

FAQs

For compatibility with 480 Vac systems, mount the WSRD63542CH-S483 in a suitable sheet-steel enclosure rated for industrial environments and non-hazardous locations. Use the three-wire four-pole configuration to maintain proper neutral and ground references, and connect auxiliary contacts as required for control circuits. Verify NEC/CEC compliance during panel design and ensure proper clearances around the spring door and enclosure to meet safety standards.
The interlock mechanism prevents energization while the door is open and maintains a locked, isolated state during maintenance. This reduces the risk of accidental startup, protects maintenance personnel, and simplifies lockout-tagout procedures. The design supports factory-installed auxiliary contacts for signaling interlock status to the control system, enabling safer, more reliable isolation in automated lines.
The WSRD63542CH-S483 is designed to meet NEC/CEC standards and includes a NEMA 3R enclosure rating for safe operation in ordinary/non-hazardous locations. UL certification is available through documentation, and the unit supports the Arktite WSRD interlock family’s compliance framework, ensuring safe isolation and reliable performance in industrial environments.
Yes, the WSRD63542CH-S483 is intended for ordinary/non-hazardous locations. It features a NEMA 3R-rated enclosure offering weather-resistant protection suitable for many indoor and protected outdoor applications. The solid/spring door options provide robust protection for the enclosed disconnect switch, while the sheet-steel construction supports durability in factory environments.
By incorporating a factory-installed auxiliary contact option and a reliable 60A interlocked switch, maintenance downtime is reduced due to quicker isolation and easier control integration. The robust construction and NEC/CEC compliance lower risk of non-compliance penalties, and the durable sheet-steel enclosure minimizes wear. Over time, this translates to lower maintenance costs and higher line uptime.
