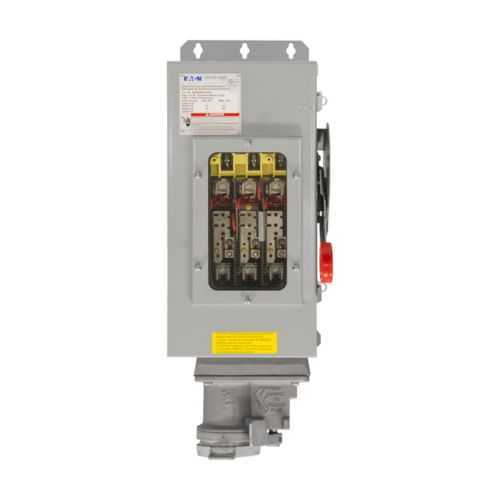

Eaton Crouse-Hinds WSRDW10352CH Interlocked Receptacle - NEC/CEC
Part Number: WSRDW10352CH
Manufacturer
Eaton Crouse-Hinds
Part number
WSRDW10352CH
Quick Summary
WSRDW10352CH interlocked receptacle provides a rugged power disconnect for industrial equipment. Maintenance teams often struggle with accidental re-energization and non-compliant enclosures, which this design mitigates by combining interlock safety with robust enclosure features. The unit carries NEC/CEC standards and a NEMA 12 3R rating, with UL certification to back performance in non-hazardous locations. Its windowed door, fused protection, and Sheet steel construction support safer maintenance, regulator-friendly compliance, and long-term reliability. By integrating a 100A rating and 480/600 Vac capability with a proven Cutler-Hammer lineage, it delivers business value through reduced downtime, safer operations, and easier regulatory alignment for industrial facilities.
Product Information
Extended Description
WSRDW10352CH Eaton Crouse-Hinds: Eaton Crouse-Hinds series Arktite WSRD interlocked receptacle with enclosed safety disconnect switch, 100A, Three-wire, four-pole, Brass contacts, Windowed door, Fused, Style 2, Cutler-Hammer, Sheet steel, Spring door, 480/600 Vac
Product Name
Eaton Crouse-Hinds series Arktite WSRD interlocked receptacle with enclosed safety disconnect switch
Catalog Number
WSRDW10352CH
UPC
662276535800
Product Length/Depth
10.76 in
Product Height
31.05 in
Product Width
10.21 in
Product Weight
35 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
12 3R
Enclosure type
With switch
Door style
Windowed
Amperage Rating
100A
Fusing
Fused
Grounding style
Style 2
Configuration
Three-wire, four-pole
Material
Sheet steel
Contact material
Brass
Voltage rating
480 Vac/600 Vac
Manufacturer
Cutler-Hammer
Receptacle style
Spring door
Arktite WSRD Interlock with Eaton Switch
Arktite WSR/WSRD Interlock Receptacles catalog page
Arktite WSR/WSRD Interlock Receptacles with Enclosed Disconnect Switches UL certification
Arktite WSR/WSRD Interlock Receptacles with Enclosed Disconnect Switches UL certification
Eaton Specification Sheet - WSRDW10352CH
Feature → Business Impact → Application: 100A, 480/600 Vac, three-wire, four-pole configuration handles heavy-motor loads with controlled fault energy, improving reliability in manufacturing lines where uptime matters. This enables facilities to run high-demand equipment with confidence while meeting NEC/CEC compliance and NEMA 12 3R protection in ordinary locations. Feature → Business Impact → Application: Enclosed safety disconnect switch with a windowed door enhances visibility and lockout capability, reducing re-energization risk during maintenance and supporting safer start-up sequences in control panels and power distribution boxes. Feature → Business Impact → Application: Sheet steel enclosure with brass contacts delivers durability and corrosion resistance in harsh industrial settings, lowering replacement costs and extending service life in plants, warehouses, and processing facilities. Feature → Business Impact → Application: Grounding style Style 2 and spring door receptacle design simplify installation and grounding reliability, speeding initial setup and improving ongoing electrical integrity in new builds or retrofit projects. Feature → Business Impact → Application: 100A fused protection minimizes fault energy and protects downstream equipment, translating to reduced maintenance expense and improved protection for motors and drives in heavy-duty applications. Feature → Business Impact → Application: NEMA rating 12 3R and ordinary/non-hazardous location suitability align with common industrial codes, making it a straightforward choice for non-hazardous areas where robust interlocks are required. Feature → Business Impact → Application: Compatibility with Cutler-Hammer Arktite WSRD interlock systems ensures seamless integration with existing Eaton electrical protection ecosystems, simplifying procurement and installation for upgrade projects. Feature → Business Impact → Application: Windowed door and visual status inspection enable quick verification of switch position, supporting faster line audits and safer changeovers in control rooms and panel enclosures.
Get a Quick Quote for a Eaton Crouse-Hinds WSRDW10352CH
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds WSRDW10352CH?
Enquire Now
FAQs
Install in a non-hazardous, ordinary location enclosure rated for 480/600 Vac. Mount the unit with the three-wire, four-pole configuration, connect brass contacts to the designated phases, and ensure the interlock is interfaced with the WSRD interlock family per Eaton installation guidelines. Verify enclosure integrity and confirm fuse protection is present before energizing.
The device is rated for 100A at 480 Vac to 600 Vac, configured as three-wire and four-pole, with fused protection for safe operation and controlled disconnection in industrial circuits.
Yes. It is rated for Ordinary/Non-Hazardous Locations and uses a robust 12 3R NEMA enclosure with a windowed door, making it appropriate for standard industrial environments that require enclosed switching and interlock functionality.
It supports NEC/CEC compliance, has a NEMA 12 3R rating, and UL certification for safety and conformity in both US and Canada where applicable, reinforcing regulatory alignment for panel and power distribution installations.
Interlocked safety switches prevent accidental re-energization, reducing unplanned downtime and injury risk. The fused protection minimizes fault energy, potentially lowering maintenance costs over time, while a windowed door simplifies visual checks during routine inspections.
