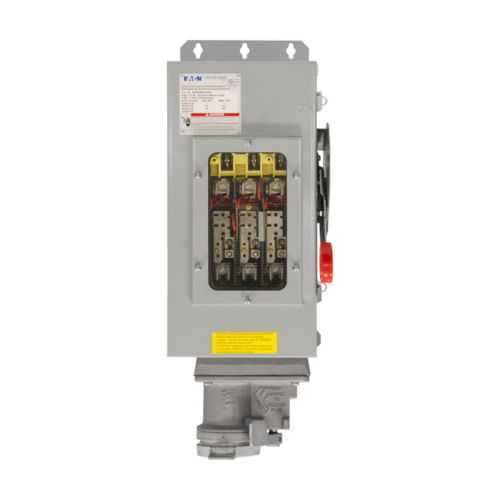

Eaton WSRDW3352CH Interlocked Receptacle - 3R 12
Part Number: WSRDW3352CH
Manufacturer
Eaton Crouse-Hinds
Part number
WSRDW3352CH
Quick Summary
Introducing the Eaton WSRDW3352CH interlocked receptacle with an enclosed disconnect switch for safe control in industrial panels. This design addresses the persistent challenge of accidental energization and exposed conductors during maintenance, improving technician safety and minimizing downtime. The unit is certified for Ordinary/Non-Hazardous locations, carries NEC/CEC compliance, and features a NEMA 3R rating for reliable operation in varied environments. For OEMs, facilities managers, and panel builders, it delivers robust safety, durable construction, and straightforward installation, while supporting 480/600 Vac systems and reliable grounding to protect critical circuits.
Product Information
Extended Description
WSRDW3352CH Eaton Crouse-Hinds: Eaton Crouse-Hinds series Arktite WSRD interlocked receptacle with enclosed safety disconnect switch, 30A, Three-wire, four-pole, Brass contacts, Windowed door, Fused, Style 2, Cutler-Hammer, Sheet steel, Spring door, 480/600 Vac
Product Name
Eaton Crouse-Hinds series Arktite WSRD interlocked receptacle with enclosed safety disconnect switch
Catalog Number
WSRDW3352CH
UPC
662276535787
Product Length/Depth
8.94 in
Product Height
23.43 in
Product Width
10.21 in
Product Weight
27 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
3R 12
Enclosure type
With switch
Door style
Windowed
Amperage Rating
30A
Fusing
Fused
Grounding style
Style 2
Configuration
Three-wire, four-pole
Material
Sheet steel
Contact material
Brass
Voltage rating
480 Vac/600 Vac
Manufacturer
Cutler-Hammer
Receptacle style
Spring door
Arktite WSRD Interlock with Eaton Switch
Arktite WSR/WSRD Interlock Receptacles catalog page
Arktite WSR/WSRD Interlock Receptacles with Enclosed Disconnect Switches Canadian certification
Arktite WSR/WSRD Interlock Receptacles with Enclosed Disconnect Switches Canadian certification
Eaton Specification Sheet - WSRDW3352CH
Feature interlocked receptacle with an enclosed safety disconnect switch → Business Impact reduces the risk of accidental energization during servicing, protecting personnel and equipment; Application ideal for control panels and machine enclosures in harsh industrial settings. Feature 30A amperage rating with three-wire, four-pole configuration → Business Impact enables safe, high-power circuit control and improved fault isolation; Application suits motors, drives, and high-demand equipment. Feature fused protection and brass contact material → Business Impact enhances circuit protection and longevity, lowering replacement costs; Application in demanding, code-driven installations where reliability matters. Feature sheet steel enclosure with windowed and spring doors → Business Impact delivers rugged durability and quick visual status checks, reducing maintenance time; Application in outdoor or damp environments where visibility and access speed matter. Feature grounding style Style 2 and 480/600 Vac rating → Business Impact supports proper grounding and compatibility with modern industrial controls, boosting compliance and uptime; Application across automation cabinets and power distribution nodes within ordinary locations.
Get a Quick Quote for a Eaton Crouse-Hinds WSRDW3352CH
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds WSRDW3352CH?
Enquire Now
FAQs
The WSRDW3352CH is designed for Eaton Crouse-Hinds Arktite WSR interlock family and fits standard 30A, three-wire four-pole configurations. It uses sheet steel construction, brass contacts, and a windowed spring-door enclosure, enabling straightforward retrofit into existing Arktite panels and minimizing field modifications during upgrade projects.
Key specs include a 30A rating, three-wire four-pole configuration, brass contact material, fused protection, and a voltage rating of 480 Vac to 600 Vac. The assembly features a Style 2 grounding method, a windowed door, and a sheet-steel enclosure designed for ordinary locations per NEC/CEC standards.
This interlocked receptacle is suited for control panels, industrial machinery, and automation equipment in ordinary/non-hazardous locations. Its NEMA 3R rating supports outdoor or damp environments, while the 480/600 Vac capability makes it ideal for high-power drives and motor control applications in manufacturing and process facilities.
The unit provides an enclosed safety disconnect, interlocking to prevent energization during servicing, and NEC/CEC compliance. Its NEMA 3R rating and ordinary-location suitability support code-compliant installation in a wide range of industrial settings, reducing maintenance risk and improving overall safety performance.
By preventing access to live parts during maintenance and offering visible status via the windowed door, the WSRDW3352CH reduces incident risk and downtime. Its rugged sheet-steel construction and fused protection help extend component life, lower replacement costs, and deliver predictable performance in critical control circuits.
